A pancake-shaped solid wood disk (m = 1.4 kg) is placed at the top of an...
A pancake-shaped solid wood disk (m = 1.4 kg) is placed at the top of an inclined plane. It begins to roll down the plane on its own.

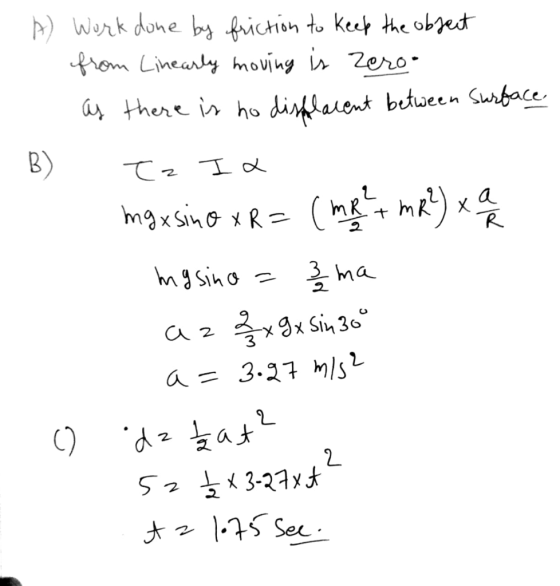

A) Which is larger during this rolling, the work done by friction to increase the rotational speed or the work done by friction to keep the object from linearly moving down the plane?
B) What is the linear acceleration of the disk referred to if the angle of the hill is 30°?
C) How long will it take for the disk to roll 5.0 m along the plane?
