Nitrogen is compressed in an axial-flow compressor at steady state from a pressure of 15 lbf/in^2...
Nitrogen is compressed in an axial-flow compressor at steady state from a pressure of 15 lbf/in^2 and a temperature of 500 degrees R to a temperature of T2. The power input to the compressor (Ẇc)=-20 hp. The mass flow rate (ṁ)=-0.257957-0.0301727Ẇc. Neglect heat transfer and kinetic and potential energy effects. Calculate discharge temperature (T2) in degrees R.
Homework Answers

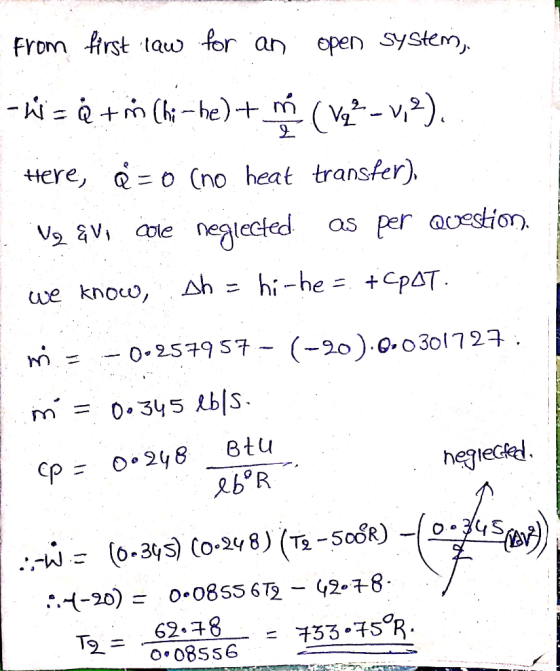

The
discharge temeperature is 733.75 degree R.Add Answer to:
