A car is driving around a banked curve, with the road surface at an angle of...

Question

Question

A car is driving around a banked curve, with the road surface at an angle of 10.0º. If the radius of curvature of the road is 30.0 m and the coefficient of static friction between the tires of the car and the road is 0.65, what is the maximum speed (in km/hr) the car can go without skidding?

science physics

Answer 1

Answer #1

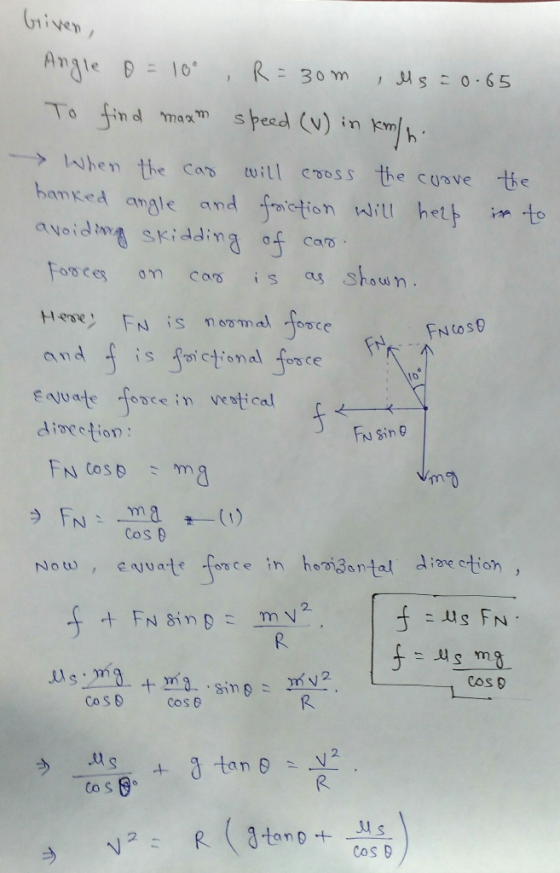

Due to banking of road the normal force will act at a given angle having two horizontal and the vertical components.

The horizontal component along with frictional force will offer resistance against the skidding of car.

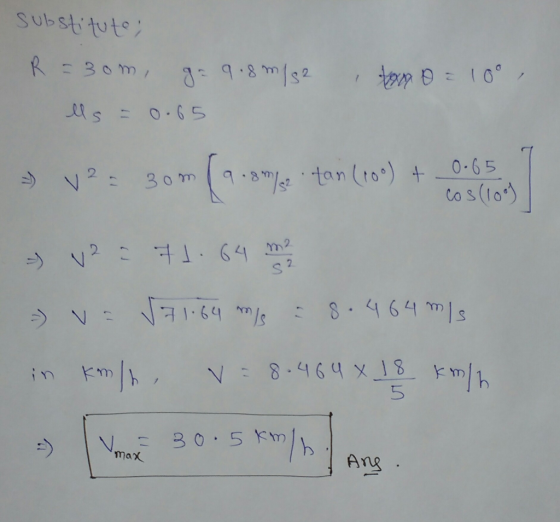

Calculation for maximum speed is as shown below.

Answer 2
