A curve of radius 70 m is banked so that a 1000 kg car traveling at...

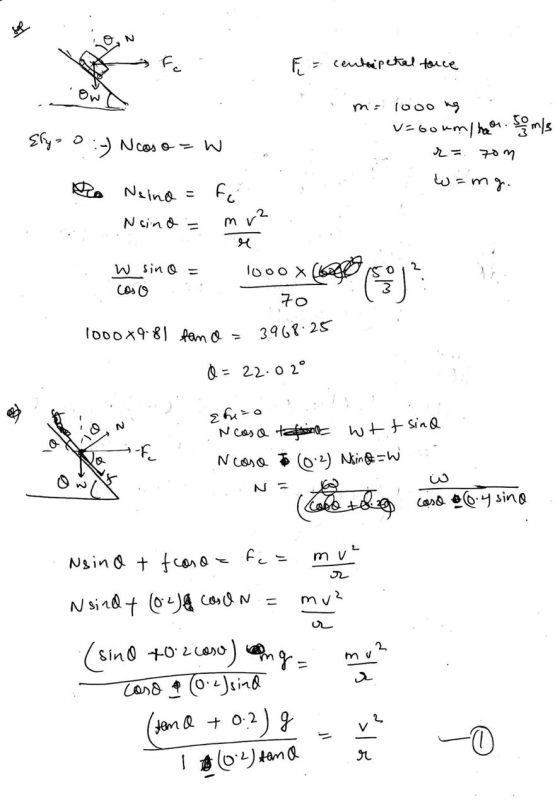

A curve of radius 70 m is banked so that a 1000 kg car traveling at 60 km/h can round it even if the road is so icy that the coefficient of static friction is approximately zero. The acceleration of gravity is 9.81 m/s 2 .

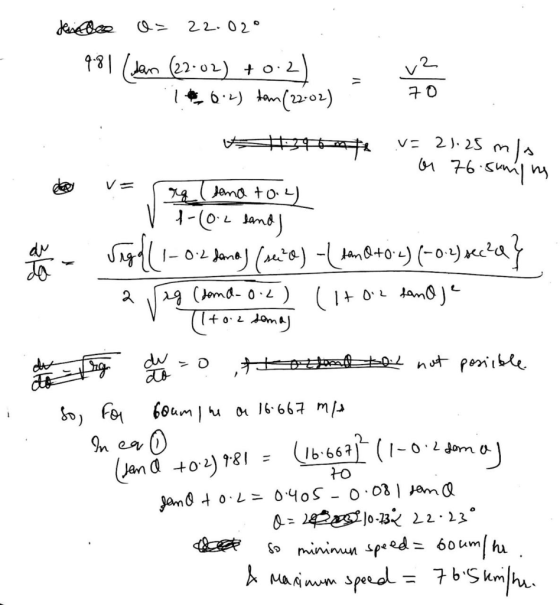

a) Find the minimum speed at which a car can travel around this curve without skidding if the coefficient of static friction between the road and the tires is 0.2

b) Find the maximum speed under the same conditions.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A curve of radius 70 m is banked so that a 1000 kg car traveling at...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A highway curve of radius 68.0 m is banked at 21.4 degree so that a car...

    A highway curve of radius 68.0 m is banked at 21.4 degree so that a car traveling at 26.4 m/s (95 km/hr) will utilize both banking and friction to keep it on the curve. Determine the minimum coefficient of static friction between the tires and the road to keep the car on the road at this speed on this curve.

  • A car is driving around a banked curve, with the road surface at an angle of...

    A car is driving around a banked curve, with the road surface at an angle of 10.0º. If the radius of curvature of the road is 30.0 m and the coefficient of static friction between the tires of the car and the road is 0.65, what is the maximum speed (in km/hr) the car can go without skidding?

  • A car of mass M = 800 kg traveling at 55.0 km/hour enters a banked turn...

    A car of mass M = 800 kg traveling at 55.0 km/hour enters a banked turn covered with ice. The road is banked at an angle ?, and there is no friction between the road and the car's tires as shown in(Figure 1) . Use g = 9.80 m/s2 throughout this problem. Now, suppose that the curve is level (?=0) and that the ice has melted, so that there is a coefficient of static friction ? between the road and...

  • A car of mass M = 1300 kg traveling at 65.0 km/hour enters a banked turn...

    A car of mass M = 1300 kg traveling at 65.0 km/hour enters a banked turn covered with ice. The road is banked at an angle θ, and there is no friction between the road and the car's tires as shown in (Figure 1) . Use g = 9.80 m/s2 throughout this problem. r= 91.43 m. Now, suppose that the curve is level (θ=0) and that the ice has melted, so that there is a coefficient of static friction μ...

  • A curve of radius 160 m is banked at an angle of 10. An 800-kg car...

    A curve of radius 160 m is banked at an angle of 10. An 800-kg car moves the curve at 85 km/h without skidding. Neglect the effects of air drag. Find (a) The frictional force exerted by the pavement on the tires (b) The minimum coefficient of static friction between the pavement and the tires.

  • 5. a- A 1100 kg car rounds a curve of radius 64.0 m banked at an...

    5. a- A 1100 kg car rounds a curve of radius 64.0 m banked at an angle of 14°. What is the maximum speed that the car can reach without skidding if the coefficient of static friction between the tires and the road is 0.56? 5. b- A 1.00-kg ball is tied to a 1.04-m long string is being spun in a vertical circle at a constant speed and with a period of 2.00 s. What is the minimum tension...

  • A car goes around an icy banked curve (frictionless) at a speed that is not too...

    A car goes around an icy banked curve (frictionless) at a speed that is not too fast so that the car stays on the circula path. What causes the car to follow the circular path? A car goes around an icy banked curve (frictionless) at a speed that is not too fast so that the car stays on the circula path. What causes the car to follow the circular path? the normal force from the road gravity the friction force...

  • A curve that has a radius of 105 m is banked at an angle of ?=10.2∘....

    A curve that has a radius of 105 m is banked at an angle of ?=10.2∘. If a 1000 kg car navigates the curve at 65 km/h without skidding, what is the minimum coefficient of static friction ?s between the pavement and the tires?

  • A 13004 N car traveling at 41.4 km/h rounds a curve of radius 2.28 × 102...

    A 13004 N car traveling at 41.4 km/h rounds a curve of radius 2.28 × 102 m. The acceleration of gravity is 9.81 m/s2 . a) Find the centripetal acceleration of the car. Answer in units of m/s2 b) Find the force that maintains circular motion. Answer in units of N. c) Find the minimum coefficient of static friction between the tires and the road that will allow the car to round the curve safely.

  • If a curve with a radius of 90 m is properly banked for a car traveling...

    If a curve with a radius of 90 m is properly banked for a car traveling 68 km/h, what must be the coefficient of static friction for a car not to skid when traveling at 96 km/h?
