A 2.6 kg mass is attached to a string which is attached to a second mass...

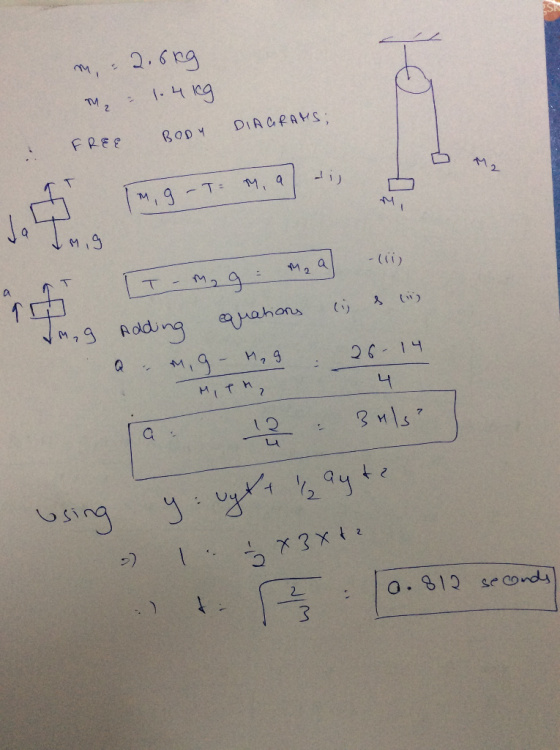

A 2.6 kg mass is attached to a string which is attached to a second mass 1.4 kg The string passes over a pulley and the two masses both hang down. They are released from rest. How long (in seconds) does it take for each to move 1 m?
Homework Answers
Add Answer to:
A 2.6 kg mass is attached to a string which is attached to a
second mass...
Two buckets of mass 17.1 kg and 11.3 kg are attached to the ends of a...
Two buckets of mass 17.1 kg and 11.3 kg are attached to the ends of a massless rope which passes over a pulley with a mass of 17.3 kg and a radius of 0.45 m Assume that the rope does not slip on the pulley, and that the pulley rotates without friction. The buckets are released from rest and begin to move. If the larger bucket is a distance 1.95m above the ground when it is released, with what speed...
A block of mass M = 1.1 kg is attached to a string which is wrapped...
A block of mass M = 1.1 kg is attached to a string which is wrapped around a pulley. As the block accelerates due to gravity the pulley rotates clockwise. The pulley can be thought of as a thin cylinder of mass m = 0.5 kg and radius r = 0.26 m. Consider positive to be the block moving down and the pulley rotating clockwise. What is the downwards acceleration of the block? What is the angular acceleration of the...
A mass on a horizontal table is attached by a thin string that passes over a...
A mass on a horizontal table is attached by a thin string that passes over a frictionless, massless pulley to a 2.5 kg mass that hangs over the side of the table 1 m above the ground. The system is released from rest and the 2.5 kg mass strikes the ground at 0.83 s later. The system is now placed in its initial position and a 1.1 kg mass is placed on top of the block of mass m1. Released...
Mass m1 is connected by a light string that passes over a pulley of mass m...
Mass m1 is connected by a light string that passes over a pulley of mass m to a mass m2. ... Question: A mass m1 is connected by a light string that passes over a pulley of mass M to a mass m2. Both m... A mass m1 is connected by a light string that passes over a pulley of mass M to a mass m2. Both masses move virticaly and there is no slippage between the string and the...
A weight of mass 1.03 kg is suspended by a string wrapped around a pulley wheel,...
A weight of mass 1.03 kg is suspended by a string wrapped around a pulley wheel, which consists of a solid disk of mass 4.96 kg and radius 1.37 m. The system is released from rest. Over what vertical distance does the hanging mass move in 3.0 seconds?
A weight of mass 1.66 kg is suspended by a string wrapped around a pulley wheel,...
A weight of mass 1.66 kg is suspended by a string wrapped around a pulley wheel, which consists of a solid disk of mass 4.03 kg and radius 0.603 m. The system is released from rest. Over what vertical distance does the hanging mass move in 3.0 seconds? Ignore friction and drag forces, and assume that the string does not slip.
A weight of mass 1.03 kg is suspended by a string wrapped around a pulley wheel,...
A weight of mass 1.03 kg is suspended by a string wrapped around a pulley wheel, which consists of a solid disk of mass 4.96 kg and radius 1.37 m. The system is released from rest. Over what vertical distance does the hanging mass move in 3.0 seconds? Ignore friction and drag forces, and assume that the string does not slip.
A mass m1 is connected by a light string that passes over a pulley of mass...
A mass m1 is connected by a light string that passes over a pulley of mass M to a mass m2 as shown in the figure. Both masses move vertically and there is no slippage between the string and the pulley. The pulley has a radius of 20.0 cm and a moment of inertia of ½ MR2. If m1 is 3.00 kg, m2 is 6.00 kg and M is 4.00 kg, then what is the acceleration of the masses?
A textbook of mass 1.92 kg rests on a frictionless, horizontal surface. A cord attached to...
A textbook of mass 1.92 kg rests on a frictionless, horizontal surface. A cord attached to the book passes over a pulley whose diameter is 0.150 m , to a hanging book with mass 2.94 kg . The system is released from rest, and the books are observed to move a distance 1.29 m over a time interval of 0.780 s Part A What is the tension in the part of the cord attached to the textbook? Part B What...
Two blocks are connected to a string, and the string is hung over a pulley connected...
Two blocks are connected to a string, and the string is hung over a pulley connected to the ceiling, as shown in the figure below. Two blocks, labeled m1 and m2, are connected to a string which is hung over a pulley connected to the ceiling. The pulley is of mass M and radius R. A block labeled m1 hangs suspended off the surface on the left side of the pulley. A block m2 is on the right side of...
