a 350 kHz resonant circuit is built using a 2 microH inductor and capacitor. what capacitor...

Question

Question

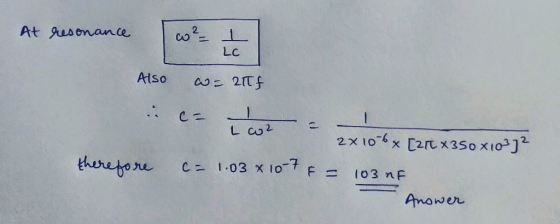

a 350 kHz resonant circuit is built using a 2 microH inductor and capacitor. what capacitor should be used?

answer is 103nF. need help in the process of solving please

science physics

Answer 1

Answer #1

Answer 2
