Design Turing machines for the following languages:

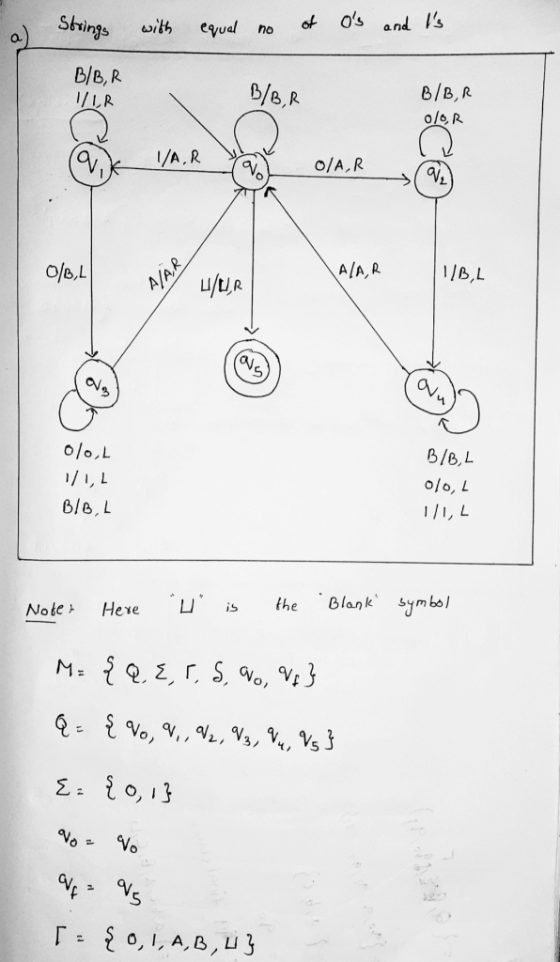

a. The set of all strings with an equal number of 0’s and 1’s.

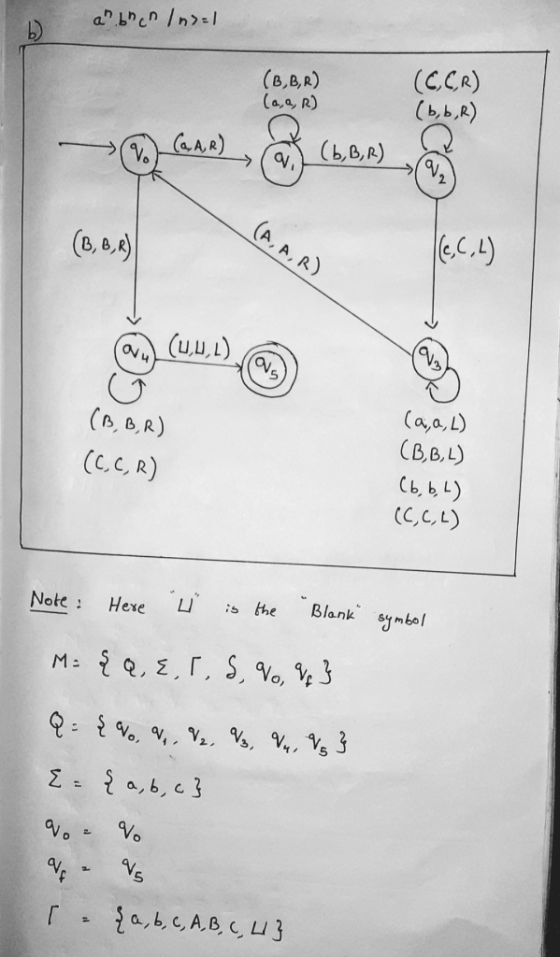

b. {aⁿ bⁿ cⁿ | n >= 1}

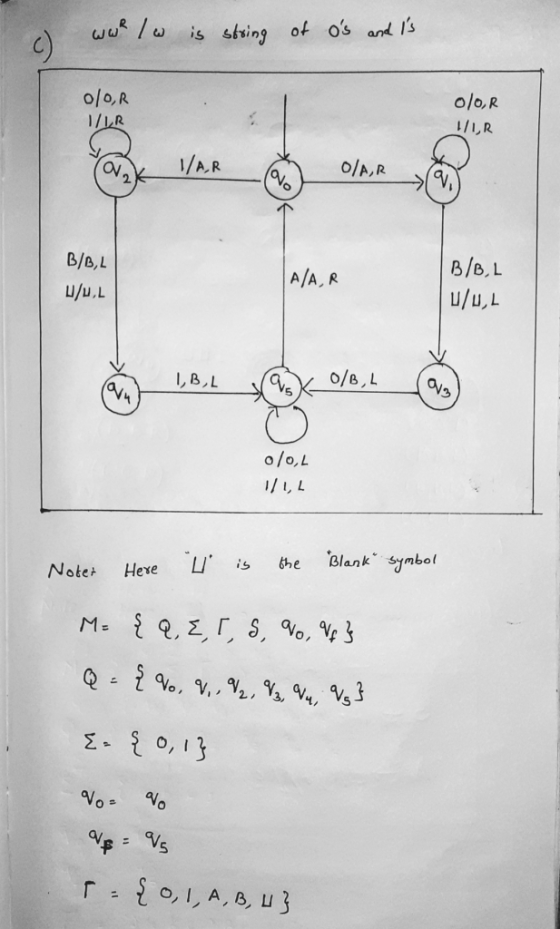

c. {ww^R | w is any string of 0’s and 1’s}

engineering Computer-Science

Answer 1

Answer #1

Answer 2
