How to find RMS Voltage of this waveform?

Periodic waveform has period of 14ms. The cycle starts at t=0 with voltage:

V=1.6 x (10^6)(t^2.3) volts

engineering Electrical-Engineering

Answer 1

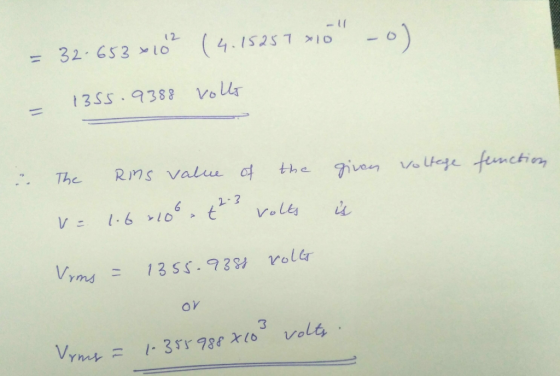

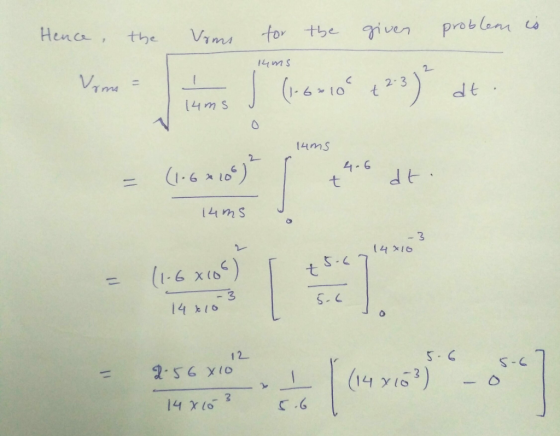

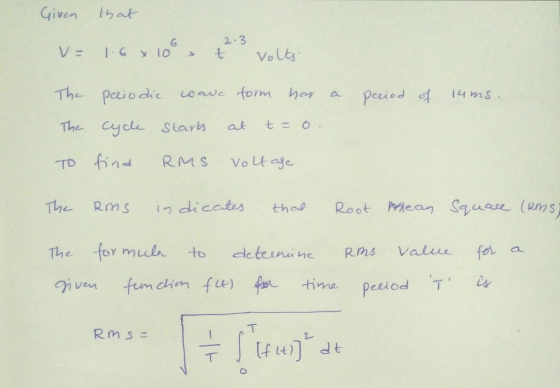

Answer #1

Answer 2
