A mass of m = 3 kg at the end of a robotic arm moves in...
A mass of m = 3 kg at the end of a robotic arm moves in the following way at a certain instant:
The length of the arm is 2 m
The length of the arm is increasing by 1 m/s
It is rotating with an angular velocity of 6 rad/s counterclockwise (CCW)
It has an angular acceleration of 1 rad/s2 clockwise (CW)
Using polar coordinates find the acceleration in the θ-axis direction:
Homework Answers

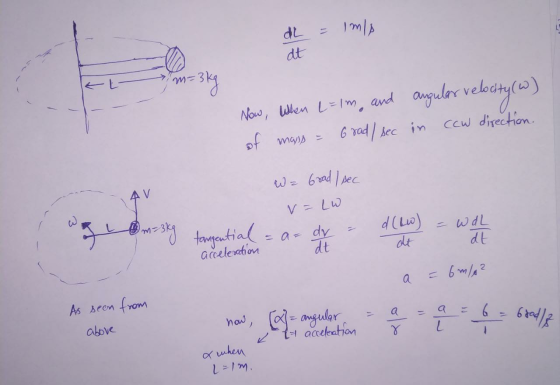

The acceleration in the
axis direction is known as Angular acceleration.
The angular acceleration is given as
= a / r
where a is the tangential acceleration and r is the radius of circular motion.
