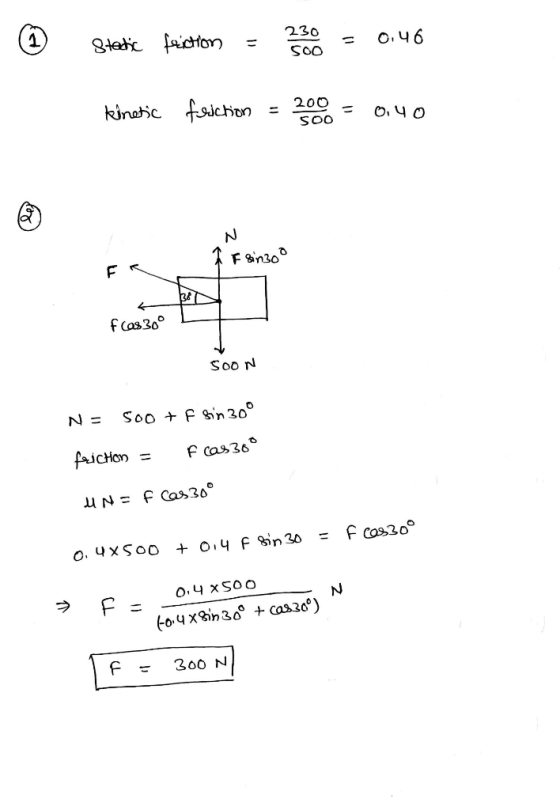

1. You want to move a 500-N crate across a level floor. To start the crate...
1. You want to move a 500-N crate across a level
floor. To start the crate moving, you have to
pull with a 230-N horizontal force. Once the crate breaks loose and
starts to move, you can
keep it moving at constant velocity with only 200 N. What are the
coefficients of static and
kinetic friction?
2. In the previous example, suppose you move the crate by pulling
upward on the rope at an
angle of 30.0◦ above the horizontal. How hard must you pull to keep
it moving with constant
velocity? Assume that µk = 0.40.
Homework Answers
