A motor run by a 9.4-V battery has a 24-turn square coil with sides of length...

A motor run by a 9.4-V battery has a 24-turn square coil with sides of length 3.2 cm and total resistance 28 Ω . When spinning, the magnetic field felt by the wire in the coil is 0.030 T .

What is the maximum torque on the motor?

Express your answer to two significant figures and include the appropriate units.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

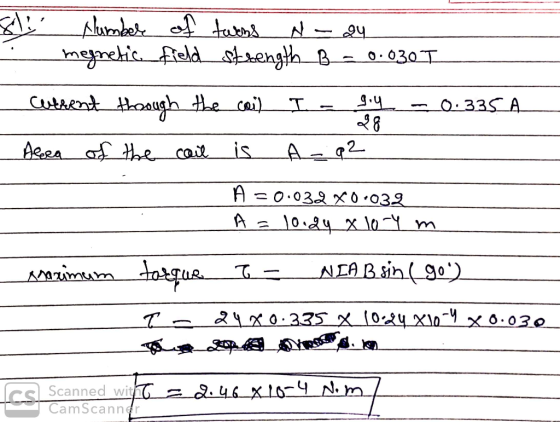

Answer #1

0 0
Add a comment
