Assume a positron (m = 9.11e-31kg) in an unknown magnetic field has a cyclotron frequency of...
Assume a positron (m = 9.11e-31kg) in an unknown magnetic field has a cyclotron frequency of 1.4E11 Hz. If we measure the cyclotron frequency of an unknown particle with the same charge as a positron to be 7.63E7 Hz, what is its approximate mass?
Homework Answers

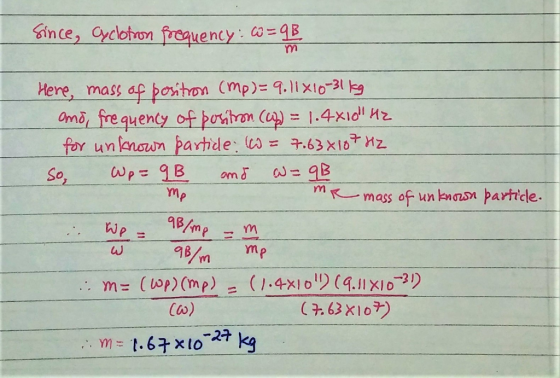

Note that charge and magnetic field is same for both the cases. So, it will be cancelled out when you divide both the equations of frequency.
Alright
Dude, If that worked for you... dont forget to give THUMBS UP.(that
will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.
