Determine the value of a real number which is expressed as 0xC21000000 using the IEEE 754...

Question

Question

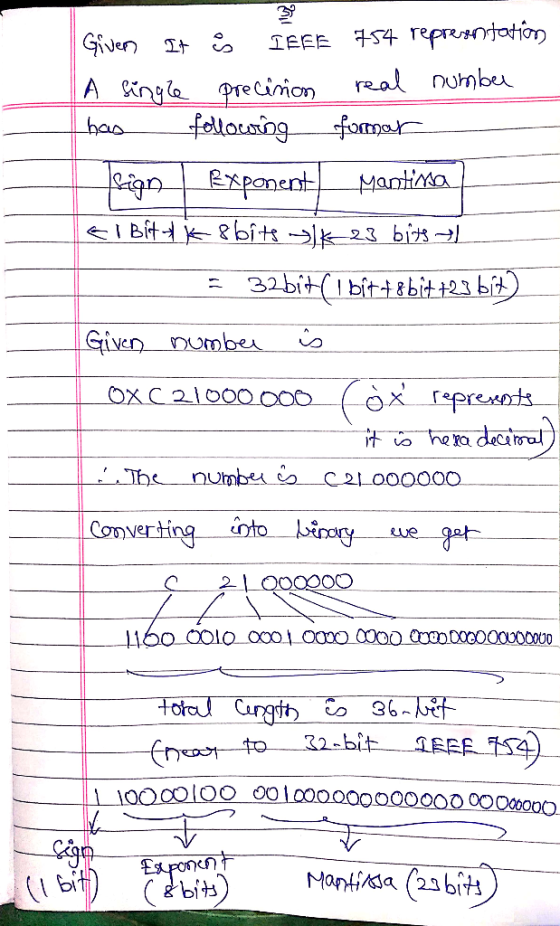

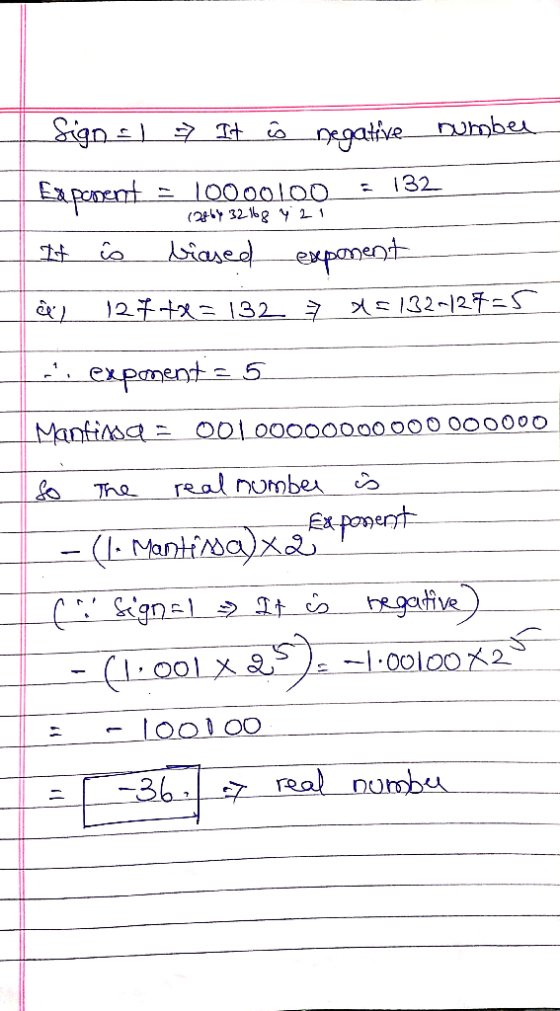

Determine the value of a real number which is expressed as 0xC21000000 using the IEEE 754 standard.

engineering Computer-Science

Answer 1

Answer #1

Answer 2
