The following liquid phase reaction takes place in a 14 L constant volume batch reactor that...

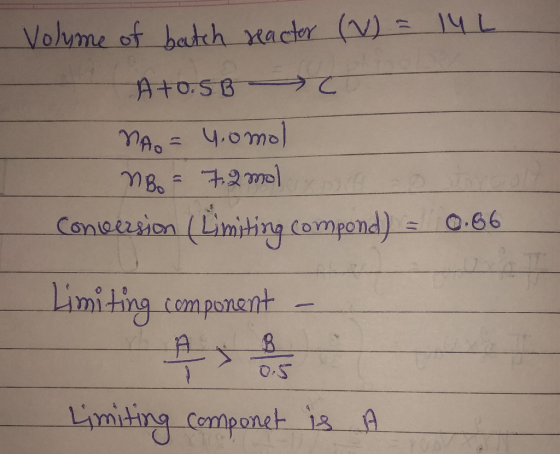

The following liquid phase reaction takes place in a 14 L constant volume batch reactor that is operating ideally:
A + 0.5 B --> C

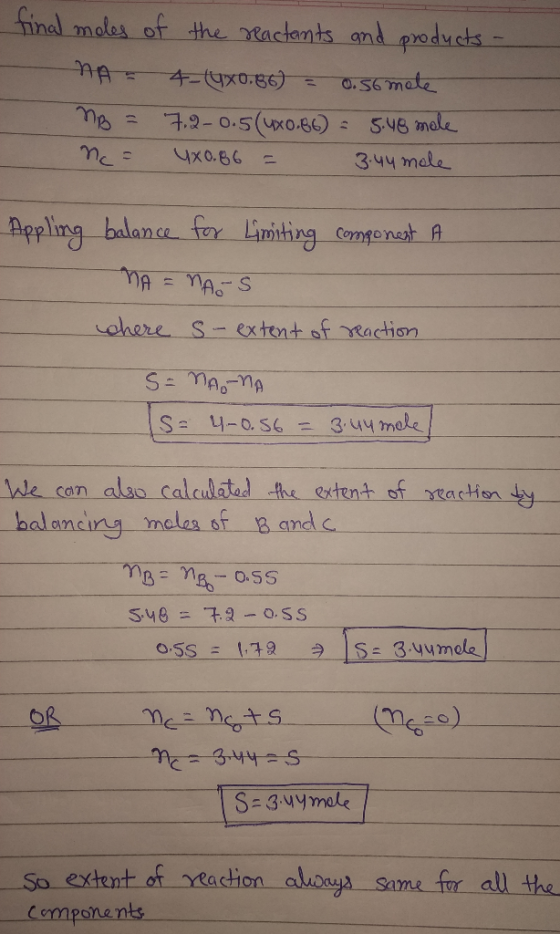

If the initial number of moles of A and B are, respectively 4.0 and 7.2, and the conversion of the limiting reactant is 0.86, what is the extent of reaction (in moles), expressed to one decimal place?
Homework Answers
Add Answer to:
The following liquid phase reaction takes place in a 14 L
constant volume batch reactor that...
The second order gas phase irreversible reaction: 2.4-B is carried out in an isothermal batch reactor...
The second order gas phase irreversible reaction: 2.4-B is carried out in an isothermal batch reactor containing 40 kg of catalyst and with an initial volume of 60-liter. The reactor is initially filled with equal molar quantities of A and inert I at 300 K and 2.5 atm. Calculate the time needed for the concentration of product (B) to be 0.02 mole/liter if: a) the reaction takes in a constant pressure batch reactor (3 points) b) the reaction takes place...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor)...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor) that has a diameter of 6 inches and cross sectional area of 0.1 ft2. A C.The reaction rate depends only on the concentration of A, CA, and has the following form: rate of destruction of A-k * CA , where k= 0.124 s-1. The feed consists of pure A, and enters the reactor at a volumetric flowrate of 0.22 ft3/s. Determine the required length...
2. (30 pts) The first-order reversible liquid reaction takes place in a batch reactor. Afer 10...
2. (30 pts) The first-order reversible liquid reaction takes place in a batch reactor. Afer 10 versi on of A is 40% while equilibrium conversion is(600 , Find the rate minutes, con equation for this reaction.
Question 2. (20 marks) The following liquid-phase consecutive reaction is taking place in a constant volume...
Question 2. (20 marks) The following liquid-phase consecutive reaction is taking place in a constant volume batch reactor A_ky »B_k >C Derive expressions for the concentrations of A, B and C as functions of time given that the first reaction is first order and the second reaction is zeroth order.
Question 11: Gas phase reactions in a Batch Reactor A gas phase reaction, shown below, is...
Question 11: Gas phase reactions in a Batch Reactor A gas phase reaction, shown below, is to be performed isothermally in a batch reactor of constant volume. The reactor is filled with 20 moles of pure A and its volume is 20 litres (a) If the temperature is 127 C, what is the initial total pressure? (b) What would be the final pressure assuming the reaction goes to completion? (c) If the reaction is first order, with a rate constant...
PLEASE HELP!! Consider an adiabatic constant pressure batch reactor for the following ideal gas phase reaction:...
PLEASE HELP!!
Consider an adiabatic constant pressure batch reactor for the following ideal gas phase reaction: 2. A—В+С The reactor initial composition is of 50 mol% A and 50 mol% inert material. The initial reactor temperature is 300 K and the pressure is 101.325 kPa. The reaction rate is: -2,500 (-) kCwhere k=exp| Т The enthalpy of reaction can be assumed constant at -5,000 J/mol. The heat capacities are assumed to be constant, with the following values: В: 5 mol...
The oxidation of nitric oxide NO + 02 =NO2 takes place in an isothermal batch reactor....
The oxidation of nitric oxide NO + 02 =NO2 takes place in an isothermal batch reactor. The reactor is charged with a mixture containing 20.0 volume percent NO and the balance air at an initial pressure of 380 kPa (absolute). (a) Assuming ideal-gas behavior, determine the composition of the mixture (component mole fractions) and the final pressure (kPa) if the conversion of NO is 90%. (b) Suppose the pressure in the reactor eventually equilibrates (levels out) at 360 kPa. What...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1 m² Mixed Flow Reactor with the equimolar mixture of A and B at the volumetric feed flow rate of 0.5 m3/min, the feed concentration of A equal to 1 mol/L, and the feed temperature of 300K. When the reaction takes place under isothermal conditions at 300K the conversion of A is 30%. When the reaction takes place adiabatically the exit temperature is 350K and...
Exercise 4.4: Catalyst deactivation in a batch reactor Consider the irreversible, liquid-phase isomerization reaction carried out...
Exercise 4.4: Catalyst deactivation in a batch reactor Consider the irreversible, liquid-phase isomerization reaction carried out in a solvent containing dissolved catalyst at 25°C in a batch reactor Aka B The apparent first-order reaction-rate constant, ka, decreases with time because of cat- alyst deterioration. A chemist colleague of yours has studied the catalyst deactivation process and has proposed that it can be modeled by ka= Tt kat in which k is the fresh catalyst rate constant and ka is the...
The gas phase reaction 2A 0.5 R follows first-order kinetics. The reaction takes place in...
The gas phase reaction 2A 0.5 R follows first-order kinetics. The reaction takes place in an isothermal, isobaric, variable-volume batch reactor starting with 50 per cent A and 50 per cent inerts. Find the first-order rate constant if the volume of the reactor decreases by 10 per cent in 4 minutes
The second order gas phase irreversible reaction: 2.4-B is carried out in an isothermal batch reactor containing 40 kg of catalyst and with an initial volume of 60-liter. The reactor is initially filled with equal molar quantities of A and inert I at 300 K and 2.5 atm. Calculate the time needed for the concentration of product (B) to be 0.02 mole/liter if: a) the reaction takes in a constant pressure batch reactor (3 points) b) the reaction takes place...
QUESTION 5 The following gas-phase reaction takes place in a plug flow reactor (a tubular reactor) that has a diameter of 6 inches and cross sectional area of 0.1 ft2. A C.The reaction rate depends only on the concentration of A, CA, and has the following form: rate of destruction of A-k * CA , where k= 0.124 s-1. The feed consists of pure A, and enters the reactor at a volumetric flowrate of 0.22 ft3/s. Determine the required length...
2. (30 pts) The first-order reversible liquid reaction takes place in a batch reactor. Afer 10 versi on of A is 40% while equilibrium conversion is(600 , Find the rate minutes, con equation for this reaction.
Question 2. (20 marks) The following liquid-phase consecutive reaction is taking place in a constant volume batch reactor A_ky »B_k >C Derive expressions for the concentrations of A, B and C as functions of time given that the first reaction is first order and the second reaction is zeroth order.
Question 11: Gas phase reactions in a Batch Reactor A gas phase reaction, shown below, is to be performed isothermally in a batch reactor of constant volume. The reactor is filled with 20 moles of pure A and its volume is 20 litres (a) If the temperature is 127 C, what is the initial total pressure? (b) What would be the final pressure assuming the reaction goes to completion? (c) If the reaction is first order, with a rate constant...
PLEASE HELP!!
Consider an adiabatic constant pressure batch reactor for the following ideal gas phase reaction: 2. A—В+С The reactor initial composition is of 50 mol% A and 50 mol% inert material. The initial reactor temperature is 300 K and the pressure is 101.325 kPa. The reaction rate is: -2,500 (-) kCwhere k=exp| Т The enthalpy of reaction can be assumed constant at -5,000 J/mol. The heat capacities are assumed to be constant, with the following values: В: 5 mol...
The oxidation of nitric oxide NO + 02 =NO2 takes place in an isothermal batch reactor. The reactor is charged with a mixture containing 20.0 volume percent NO and the balance air at an initial pressure of 380 kPa (absolute). (a) Assuming ideal-gas behavior, determine the composition of the mixture (component mole fractions) and the final pressure (kPa) if the conversion of NO is 90%. (b) Suppose the pressure in the reactor eventually equilibrates (levels out) at 360 kPa. What...
PROBLEM 2 The elementary liquid phase irreversible reaction (A+B -> C) takes place in a 1 m² Mixed Flow Reactor with the equimolar mixture of A and B at the volumetric feed flow rate of 0.5 m3/min, the feed concentration of A equal to 1 mol/L, and the feed temperature of 300K. When the reaction takes place under isothermal conditions at 300K the conversion of A is 30%. When the reaction takes place adiabatically the exit temperature is 350K and...
Exercise 4.4: Catalyst deactivation in a batch reactor Consider the irreversible, liquid-phase isomerization reaction carried out in a solvent containing dissolved catalyst at 25°C in a batch reactor Aka B The apparent first-order reaction-rate constant, ka, decreases with time because of cat- alyst deterioration. A chemist colleague of yours has studied the catalyst deactivation process and has proposed that it can be modeled by ka= Tt kat in which k is the fresh catalyst rate constant and ka is the...
