Steam expands through a nozzle from inlet conditions of 1.5 MPa, 360°C to discharge conditions of...

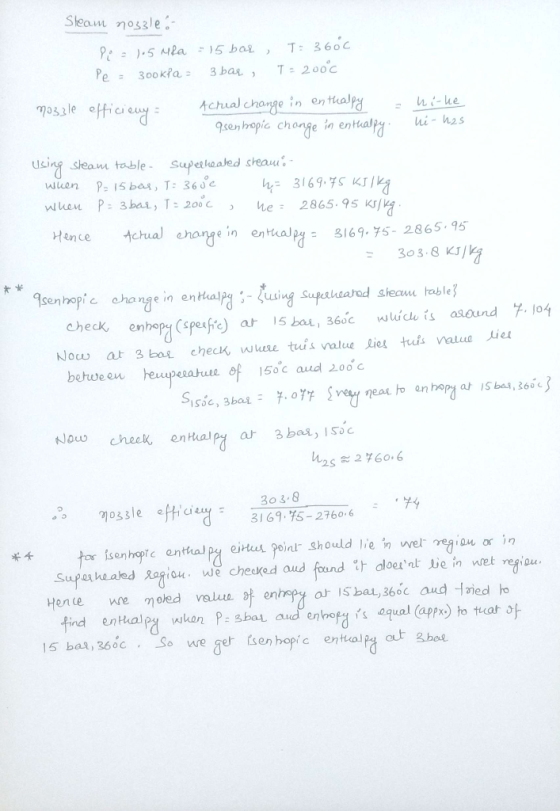

Steam expands through a nozzle from inlet conditions of 1.5 MPa, 360°C to discharge conditions of 300 kPa, 200°C. The inlet velocity is negligible. Compute the efficiency of the nozzle.
Homework Answers
Add Answer to:
Steam expands through a nozzle from inlet conditions of 1.5 MPa,
360°C to discharge conditions of...
Steam expands through a well-insulated turbine from inlet conditions 300c and 4 Mpa with negligible velocity...
Steam expands through a
well-insulated turbine from inlet conditions 300c and 4 Mpa with
negligible velocity to exit conditions 40m/s and 0.075Mpa. The
turbine is operating at steady state and has an exit diameter of
0.6Mpa. Select two different values of exit quality in the range of
0.2 to 0.5 and subsequently plot the power generated by the turbine
in kw
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to...
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with...
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to exit conditions 40 m/s and 0.075 MPa. The turbine is operating at steady state and has an exit diameter of 0.6 m. Select two (2) different values of exit quality in the range of 0.2 to 0.5 and subsequently plot the power generated by the turbine in kW. (10 MARKS]
7.10. Steam expands adiabatically in a nozzle from inlet conditions of 130(psia), 420(°F), and a velocity...
7.10. Steam expands adiabatically in a nozzle from inlet conditions of 130(psia), 420(°F), and a velocity of 230(ft)(s)−1 to a discharge pressure of 35(psia) where its velocity is 2000(ft)(s)−1. What is the state of the steam at the nozzle exit, and what is Sg for the process?
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C...
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C to a exit pressure of 100 kPa. The exit temperature of the steam is A. 99.61 °C B. Approximately 200 °C C. Approximately 150 °C D. 250 °C
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C...
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C to a exit pressure of 100 kPa. The exit temperature of the steam is O A. 99.61 °C B. Approximately 200 °C OC. Approximately 150 °C OD. 250 °C
Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 ,...
Steam flows through a turbine. The inlet conditions of the steam are 4 MPa, 500 , and 80 m/s and the exit conditions are 30 kPa, 92 percent quality and 50 m/s. The mass flow rate of the steam is 12 kg/s and the heat loss from the turbine body to environment is 1 MW. Determine (a) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa,...
Steam flows steadily through an adiabatic turbine. The inlet conditions of the steam are 6 MPa, 400°C, and 80 m/s, and the exit conditions are 40 kPa, 92 percent quality, and 50 m/s. The mass flow rate of the steam is 20 kg/s. Determine (a ) the change in kinetic energy, (b) the power output, and (c) the turbine inlet area.
Air enters a nozzle at 810°C, 3.4 MPa with a velocity of 60 m/s. The discharge...
Air enters a nozzle at 810°C, 3.4 MPa with a velocity of 60 m/s. The discharge pressure is 340 kPa and the nozzle efficiency is 94%. Determine the discharge velocity and temperature using tabulated data for the properties of air at low pressures.
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1...
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands t...
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30 KPa T- 90 °C T3-100 °C Are the above calculated/estimated conditions true? Calculate the true values. Problem 3.
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30...
Steam expands through a
well-insulated turbine from inlet conditions 300c and 4 Mpa with
negligible velocity to exit conditions 40m/s and 0.075Mpa. The
turbine is operating at steady state and has an exit diameter of
0.6Mpa. Select two different values of exit quality in the range of
0.2 to 0.5 and subsequently plot the power generated by the turbine
in kw
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to...
Question 3 Steam expands through a well-insulated turbine from inlet conditions 300°C and 4 MPa with negligible velocity to exit conditions 40 m/s and 0.075 MPa. The turbine is operating at steady state and has an exit diameter of 0.6 m. Select two (2) different values of exit quality in the range of 0.2 to 0.5 and subsequently plot the power generated by the turbine in kW. (10 MARKS]
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C to a exit pressure of 100 kPa. The exit temperature of the steam is A. 99.61 °C B. Approximately 200 °C C. Approximately 150 °C D. 250 °C
Steam expands isentropically in a turbine from an inlet condition of 6 MPa and 400 °C to a exit pressure of 100 kPa. The exit temperature of the steam is O A. 99.61 °C B. Approximately 200 °C OC. Approximately 150 °C OD. 250 °C
4-1-30 [WX] An adiabatic steam nozzle operates steadily under the following conditions. Inlet: superheated vapor, p1 = 1 MPa, T1 = 300°C, A1 78.54 cm2; Exit: saturated vapor, p2 = 100 kPa. Determine (a) the exit velocity (V2) in m/s, (b) the rate of entropy Solution] [Discuss] generation (Šgen) in kW/K. The mass flow rate (m is 1 kg/s.
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30 KPa T- 90 °C T3-100 °C Are the above calculated/estimated conditions true? Calculate the true values. Problem 3.
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30...
