A TES setup was used in the field to determine the height of the new building....

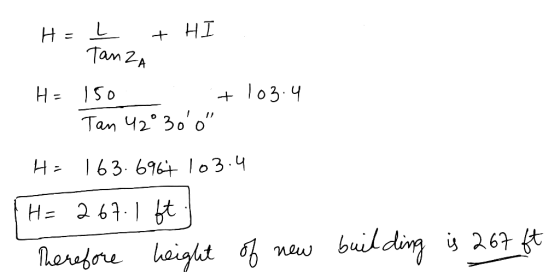

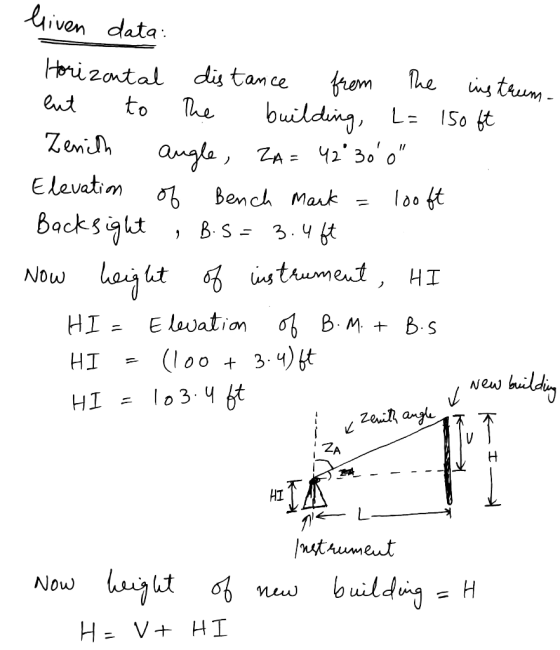

A TES setup was used in the field to determine the height of the new building. The following measurements were taken:
Horizontal distance from the instrument to the building = 150
ft
Zenith angle from instrument to the top of the building =
42o 30’ 0’’
Elevation of nearby benchmark = 100.00 ft
Backsight from the instrument to benchmark = 3.4 ft
Homework Answers
Add Answer to:
A TES setup was used in the field to determine the height of the
new building....
5) The total station is setup at A and and a known backshot point is sighted to zero the horizontal angle. The know...
5) The total station is setup at A and and a known backshot point is sighted to zero the horizontal angle. The known azimuth of the backshot is 63 03'18". Then the instrument is turned to point B with the following readings o Clockwise horizontal angle 55 37 '42" o Zenith angle 92°34 18" o Slope distance 435.09 ft o Height of the prism 6.00 ft Calculate the X, Y, and Z coordinates of point B. Assume the XY coordinates...
7. An elevation difference measurement by a total station is (a) is from the ground point...
7. An elevation difference measurement by a total station is (a) is from the ground point at the total station to the ground point at the prism computed from only slope distance and zenith angle (b) requires the horizontal circle to compute the elevation difference (c) requires sighting a known elevation on a backsight (d) usually requires height of instrument and height of target to be correctly derived 8. A horizontal angle at 2 from 1 to 3 is 65-08-10,...
Height of the Instrument Slope Distance Vertical Distance Height of the Building From Zenith Angle (DMS)...
Height of the Instrument Slope Distance Vertical Distance Height of the Building From Zenith Angle (DMS) To (ft) (in) (ft) (ft) (Ft) STN 8 156.409 62°51'34" STN 2 8 157.925 63'55'47" STN 3 8 233.255 72°20'20" STN 4 8 590.461 82°59'06" STN 5 8 78.827 76°14'45"
Using a total station, a vertical angle of +5 28'12" was taken to a target set...
Using a total station, a vertical angle of +5 28'12" was taken to a target set 1.700 m above benchmark A of elevation 175.926 m. The EDM slope distance to a reflector set over benchmark A was 443.355 m. From the same setup, a vertical angle of +11°42'12" was then taken to a target set 1.300 m over a point B at the top of the hill and an EDM slope distance of 341.682 m was taken to a reflector...
need help with these two questions ! thanks ! Apply the Law of Sines 7. A...
need help with these two questions ! thanks !
Apply the Law of Sines 7. A helicopter is on a path directly overhead line AB when it is simultaneously observed from locations and B separated by 200 ft. If the angle of elevation from A is 39 and the angle of elevation from Bis 20", what is the distance from cach location to the helicopter? Round to the nearest foot. 200 8. To estimate the height of a building, two...
In order to estimate the height of a building, two students stand at a certain distance...
In order to estimate the height of a building, two students stand at a certain distance from the building at street level. From this point, they find the angle of elevation from the street to the top of the building to be 4040 º. They the move 290290 feet closer to the building and find the angle of elevation to be 5151 º. Assume that the street is level, estimate the height of the building to the nearest foot.
vert Elevation ketch 5 Utilize the batter board method of horizontal and vertical control. The inside pipe diameter is 1 ft. The batter board setup should be 8.00 feet above the pipe invert and a...
vert Elevation ketch 5 Utilize the batter board method of horizontal and vertical control. The inside pipe diameter is 1 ft. The batter board setup should be 8.00 feet above the pipe invert and above the staked offset, which is 6 ft. horizontally from the pipe center. The pipe invert elevation is 11.62 t. The pipeline-offset stake is at station 5+00, elevation 18.32 ft. and level with the ground surface. The trench is 3 ft. wide. Create a sketch showing...
14 CHAPTER UNE 1.19 From a point 40 m away from the base of a flagpole...
14 CHAPTER UNE 1.19 From a point 40 m away from the base of a flagpole the angle of elevation of the top is 28°. Determine th height of the flagpole. 1.20 The angle of depression of a ship from the top of a 288-ft-high lighthouse is 22o. Determine how far the ship is from the lighthouse. 1.21 Two buildings are on opposite sides of a 30-m-wide street. The taller building is known to be 124 m high. If the...
The angle of elevation to the top of a Building in New York is found to...
The angle of elevation to the top of a Building in New York is found to be 2 degrees from the ground at a distance of 2 miles from the base of the building. Using this information, find the height of the building. Round to the tenths. Hint: 1 mile 5280 feet Your answer is feet. Preview License Points possible: 1 This is attempt 1 of 5. Submit
1. The angle of elevation to the top of a very tall Building is found to...
1. The angle of elevation to the top of a very tall Building is found to be 8° from the ground at a distance of 1 mi from the base of the building. Using this information, find the height of the building. (Round your answer to the nearest foot.) _______ft 2. A 19-ft ladder leans against a building so that the angle between the ground and the ladder is 71°. How high does the ladder reach on the building? (Round...
5) The total station is setup at A and and a known backshot point is sighted to zero the horizontal angle. The known azimuth of the backshot is 63 03'18". Then the instrument is turned to point B with the following readings o Clockwise horizontal angle 55 37 '42" o Zenith angle 92°34 18" o Slope distance 435.09 ft o Height of the prism 6.00 ft Calculate the X, Y, and Z coordinates of point B. Assume the XY coordinates...
7. An elevation difference measurement by a total station is (a) is from the ground point at the total station to the ground point at the prism computed from only slope distance and zenith angle (b) requires the horizontal circle to compute the elevation difference (c) requires sighting a known elevation on a backsight (d) usually requires height of instrument and height of target to be correctly derived 8. A horizontal angle at 2 from 1 to 3 is 65-08-10,...
Height of the Instrument Slope Distance Vertical Distance Height of the Building From Zenith Angle (DMS) To (ft) (in) (ft) (ft) (Ft) STN 8 156.409 62°51'34" STN 2 8 157.925 63'55'47" STN 3 8 233.255 72°20'20" STN 4 8 590.461 82°59'06" STN 5 8 78.827 76°14'45"
Using a total station, a vertical angle of +5 28'12" was taken to a target set 1.700 m above benchmark A of elevation 175.926 m. The EDM slope distance to a reflector set over benchmark A was 443.355 m. From the same setup, a vertical angle of +11°42'12" was then taken to a target set 1.300 m over a point B at the top of the hill and an EDM slope distance of 341.682 m was taken to a reflector...
need help with these two questions ! thanks !
Apply the Law of Sines 7. A helicopter is on a path directly overhead line AB when it is simultaneously observed from locations and B separated by 200 ft. If the angle of elevation from A is 39 and the angle of elevation from Bis 20", what is the distance from cach location to the helicopter? Round to the nearest foot. 200 8. To estimate the height of a building, two...
vert Elevation ketch 5 Utilize the batter board method of horizontal and vertical control. The inside pipe diameter is 1 ft. The batter board setup should be 8.00 feet above the pipe invert and above the staked offset, which is 6 ft. horizontally from the pipe center. The pipe invert elevation is 11.62 t. The pipeline-offset stake is at station 5+00, elevation 18.32 ft. and level with the ground surface. The trench is 3 ft. wide. Create a sketch showing...
14 CHAPTER UNE 1.19 From a point 40 m away from the base of a flagpole the angle of elevation of the top is 28°. Determine th height of the flagpole. 1.20 The angle of depression of a ship from the top of a 288-ft-high lighthouse is 22o. Determine how far the ship is from the lighthouse. 1.21 Two buildings are on opposite sides of a 30-m-wide street. The taller building is known to be 124 m high. If the...
The angle of elevation to the top of a Building in New York is found to be 2 degrees from the ground at a distance of 2 miles from the base of the building. Using this information, find the height of the building. Round to the tenths. Hint: 1 mile 5280 feet Your answer is feet. Preview License Points possible: 1 This is attempt 1 of 5. Submit
