Two resistors are put in series across a batter; total resistance is 20ohms. parallel, the resistance...

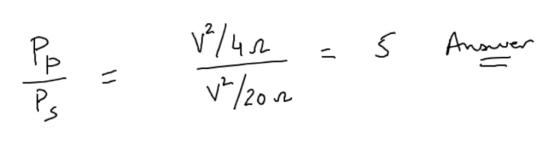

Two resistors are put in series across a batter; total resistance is 20ohms. parallel, the resistance is 4 ohms. The total power drawn from the battery is Ps in series, Pp in parallel. calculate the ratio Pp/Ps
Homework Answers
Add Answer to:
Two resistors are put in series across a batter; total
resistance is 20ohms. parallel, the resistance...
2. Two resistors R and R2 may be connected either in series or in parallel across...
2. Two resistors R and R2 may be connected either in series or in parallel across a battery with emfe. The power consumed by the parallel combination is five times that of the series combination. Find the ratio R R2/ (RR2)
A total of 3 resistors, each with a resistance of 8 Ω, are connected in parallel...
A total of 3 resistors, each with a resistance of 8 Ω, are connected in parallel across an ideal battery with an emf of 6 volts. What is the total current drawn from the battery?
A circuit consists of two resistors in series followed in series by two resistors in parallel....
A circuit consists of two resistors in series followed in series by two resistors in parallel. Each resistor has a resistance of 5 Ohm. What is the equivalent resistance of this circuit? If the circuit is connected to an AC power source of V_rms = 110V what will be the peak current in the circuit? What will be the average power drawn by the circuit?
a.When two resistors RA and RB are combined in series and connected to a battery it...
a.When two resistors RA and RB are combined in series and connected to a battery it is observed that the ratio of the power dissipated in RA to that dissipated in RB is equal to 10. If this arrangement is dismantled and the same two resistors connected in parallel to the same battery, what is the ratio of the power dissipated in RA to that dissipated in RB in this new circuit? b.How much energy is converted by a 12...
Two identical resistors are connected in parallel across a 30-V battery, which supplies them with a...
Two identical resistors are connected in parallel across a 30-V battery, which supplies them with a total power of 8.5 W. While the battery is still connected, one of the resistors is heated so that its resistance doubles. The resistance of the other resistor remains unchanged. Find (a) the initial resistance of each resistor, and (b) the total power delivered to the resistors after one resistor has been heated. (a) Number Units (b) Number Units
Ten resistors, each having resistance of 100 ohms, are connected in either series or parallel arrangement....
Ten resistors, each having resistance of 100 ohms, are connected in either series or parallel arrangement. Calcuate the ratio of the net (equivalent) resistance in the parallel to the net resistance in the series arrangment. show all work.
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment...
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
Three resistors are connected in series across a battery. The value of each resistance and its...
Three resistors are connected
in series across a battery. The value of each resistance and its
maximum power rating are as follows: 4.4Ω and 17.1 W, 42.2Ω and
10.7 W, and 21.2Ω and 10.7 W. (a) What is the greatest voltage that
the battery can have without one of the resistors burning up? (b)
How much power does the battery deliver to the circuit in (a)? any
help please?
Interactive Solution 20.47 provides one approach to problems like this one....
Two resistors A and B are connected in series to a 6.0-V battery; the voltage across...
Two resistors A and B are connected in series to a 6.0-V battery; the voltage across resistor A is 2.0 V. When A and B are connected in parallel across a 6.0-V battery, the current through B is 2.0 A. What is the resistance of resistor A?
Two resistors, each with a resistance of 24 ?, are wired in parallel to a 12...
Two resistors, each with a resistance of 24 ?, are wired in parallel to a 12 volt battery a. Calculate the total resistance of the circuit. b. Calculate the total current leaving the battery.
2. Two resistors R and R2 may be connected either in series or in parallel across a battery with emfe. The power consumed by the parallel combination is five times that of the series combination. Find the ratio R R2/ (RR2)
A circuit consists of two resistors in series followed in series by two resistors in parallel. Each resistor has a resistance of 5 Ohm. What is the equivalent resistance of this circuit? If the circuit is connected to an AC power source of V_rms = 110V what will be the peak current in the circuit? What will be the average power drawn by the circuit?
Two identical resistors are connected in parallel across a 30-V battery, which supplies them with a total power of 8.5 W. While the battery is still connected, one of the resistors is heated so that its resistance doubles. The resistance of the other resistor remains unchanged. Find (a) the initial resistance of each resistor, and (b) the total power delivered to the resistors after one resistor has been heated. (a) Number Units (b) Number Units
Experiment RESISTANCE IN COMBINATION PURPOSE: To study series, parallel, and series.parallel combinations of resistors. EQUIPMENTThe experiment board and accompanying bundle of connecting wires. PROCEDURE: 1. Resistors in series: Connect the circuit shown in Fig. 1. Using circuit theory (Ohms Law in conjunction with the predicted procedure for combining resistors in series), calculate the expected current in or through the three resistors in series and the expected voltage across each of the three resistors. After the instructor has approved your connections,...
Three resistors are connected
in series across a battery. The value of each resistance and its
maximum power rating are as follows: 4.4Ω and 17.1 W, 42.2Ω and
10.7 W, and 21.2Ω and 10.7 W. (a) What is the greatest voltage that
the battery can have without one of the resistors burning up? (b)
How much power does the battery deliver to the circuit in (a)? any
help please?
Interactive Solution 20.47 provides one approach to problems like this one....
