A thin uniform rod of length 1.36m1.36m and total mass 18.5kg18.5kg is attached to the floor by...
A thin uniform rod of length 1.36m1.36m and total mass 18.5kg18.5kg is attached to the floor by a hinge. You hold the rod up such that it makes an angle of 0.8378rad0.8378rad as measured up from horizontal.

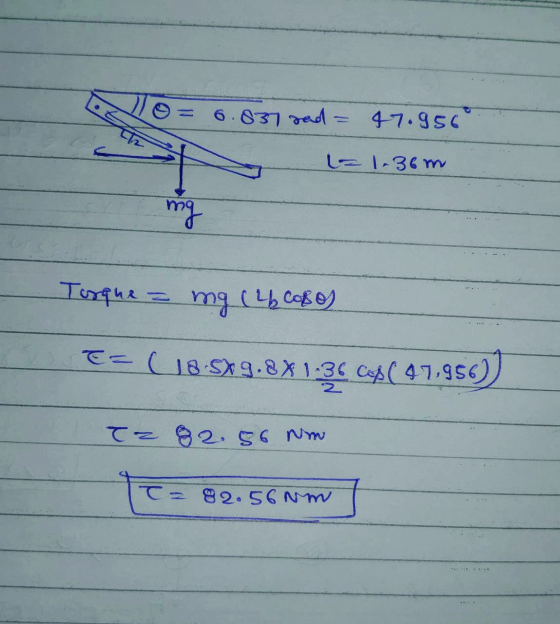

What is the magnitude of the torque that the gravitational force generates on the rod about an axis passing through the hinge?
Homework Answers
