In a double-slit experiment that uses monochromatic light, the angular separation between the central maximum and...

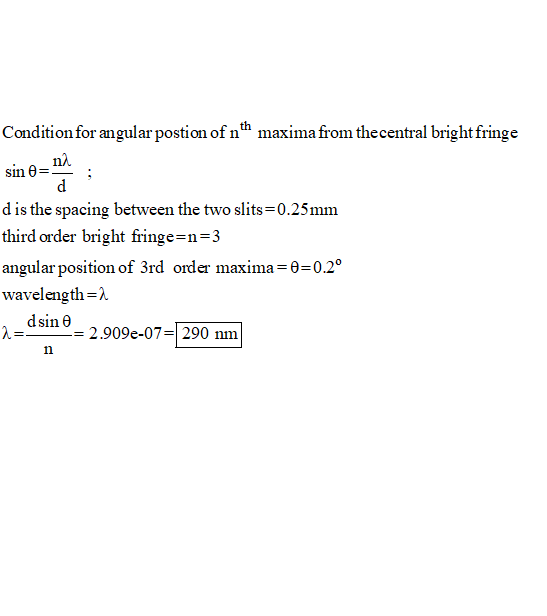

In a double-slit experiment that uses monochromatic light, the angular separation between the central maximum and the third-order bright fringe is 0.2°. What is the wavelength of light if the distance between slits is 0.25 mm?
Homework Answers
Add Answer to:
In a double-slit experiment that uses monochromatic light, the
angular separation between the central maximum and...
1. In a double-slit experiment that uses monochromatic light, the angular separation between the central maximum...
1. In a double-slit experiment that uses monochromatic light, the angular separation between the central maximum and the fourth-order bright fringe is 0.3°. What is the wavelength of light if the distance between slits is 0.45 mm?
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y...
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 697 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.67 m and the distance between the two slits is 0.104 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of...
In a double-slit experiment, the slits are illuminated by a monochromatic, coherent light source having a wavelength of 517 nm. An interference pattern is observed on the screen. The distance between the screen and the double-slit is 1.3 m and the distance between the two slits is 0.118 mm. A light wave propogates from each slit to the screen. What is the path length difference between the distance traveled by the waves for the fifth-order maximum (bright fringe) on the...
In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light...
In a Young's Double Slit experiment, the slit separation d is 0.12 mm. When red light of wavelength 666 nm is used, the resulting interference pattern appears on a distant screen, with the third order bright fringe located at a distance y of 45 mm as measured from the central bright fringe. Calculate the distance (in m) between the slits and the screen. Please quote your answer to two decimal places. The answer is 2.70m, show your work.
Consider a Young’s double-slit experiment. The slits are separated by 1.2 mm, and the monochromatic light...
Consider a Young’s double-slit experiment. The slits are separated by 1.2 mm, and the monochromatic light has a wavelength of 600 nm. The angular position of the first-order bright (maxima) fringe is 0.054 degrees 0.018 degrees 0.029 degrees 0.035 degrees
For a double-slit experiment, the third-order maximum for light of wavelength 450 nm is located 22...
For a double-slit experiment, the third-order maximum for light of wavelength 450 nm is located 22 mm from the central bright spot on a screen some distance away from the slits. Light of wavelength 590 is then used in the same setup. How far from the central bright spot will be the second-order maximum of this light be located on the screen? Give answer in mm.
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a...
1.) In a double-slit experiment, it is observed that the distance between adjacent maxima on a remote screen is 1.0 cm. What happens to the distance between adjacent maxima when the slit separation is doubled? A.) It decreases to 0.5 cm. B.) It increases to 4.0 cm. C.) It increases to 2.0 cm. D.) It decreases to 0.25 cm. E.) It remains the same. 2.) In a two-slit experiment, monochromatic coherent light of wavelength 500 nm passes through a pair...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of...
1( A) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102 mm is illuminated by light having a wavelength of 576 nm and the interference pattern observed on a screen 3.50 m from the slits. What is the difference in path lengths from the two slits to the location of a third order bright fringe on the screen? 1(B) In a Young's double-slit experiment, a set of parallel slits with a separation of 0.102...
A double slit experiment is set up using monochromatic light (frequency f= 6.0 x 1014 Hz)....
A double slit experiment is set up using monochromatic light (frequency f= 6.0 x 1014 Hz). The screen is 2.1 m from the slits. You observe that the distance from the central fringe to the 2nd bright fringe is 2 cm. What is the spacing d between the slits? a. .025 mm b. .050 mm c. .075 mm d. .100 mm e. .125 mm
(6) With the aid of an appropriate diagram, show that for Young's double slit experiment, y = 2. D/a, where 2 is the wavelength of the source, a is the slit separation, D is the distance between the slits and the screen, and y is the separation between the central bright fringe and the first order fringe. (c) In Young's double slit experiment, the slit spacing was 0.56 mm and the distance across the four-fringe spacing was 3.6 mm when...
