1. Starting with the definition of complex power and the symmetrical sequence components, develop the expression...

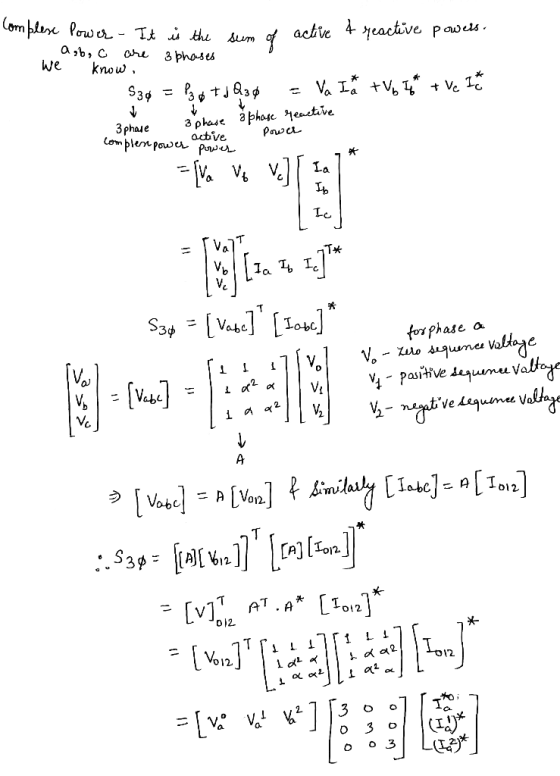

1. Starting with the definition of complex power and the
symmetrical sequence components,
develop the expression of the 3-phase complex power in terms of the
symmetrical sequence

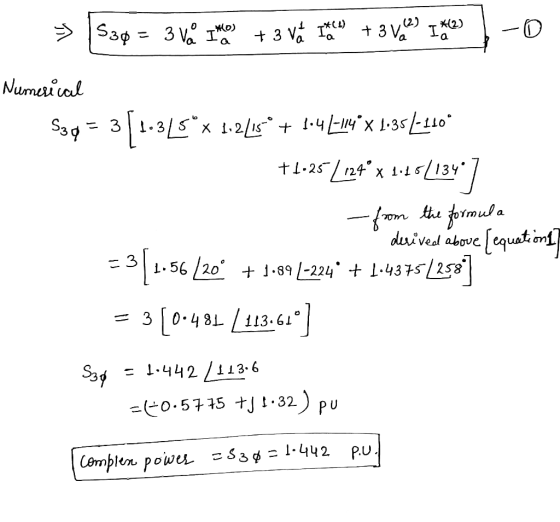

components. Show steps in detail. For numerical example use the
following per-unit values:
?" = 1.3∠5°, ?* = 1.4∠ − 114°, ?- = 1.25∠124°
V" = 1.2∠15°, ?* = 1.35∠ − 110°, ?- = 1.15∠134°
Homework Answers
Add Answer to:
1. Starting with the definition of complex power and the
symmetrical sequence components,
develop the expression...
1. Starting with the definition of complex power and the symmetrical sequence components, develop the expression...
1. Starting with the definition of complex power and the symmetrical sequence components, develop the expression of the 3-phase complex power in terms of the symmetrical sequence components. Show steps in detail. For numerical example use the following per-unit values: ?" = 1.3∠5°, ?* = 1.4∠ − 114°, ?- = 1.25∠124° V" = 1.2∠15°, ?* = 1.35∠ − 110°, ?- = 1.15∠134° 2. Develop a live script document in Matlab that allows setting a phase and magnitude of a signal...
