A 1.5 kg block and a 2.5 kg block are attached to opposite ends of a...

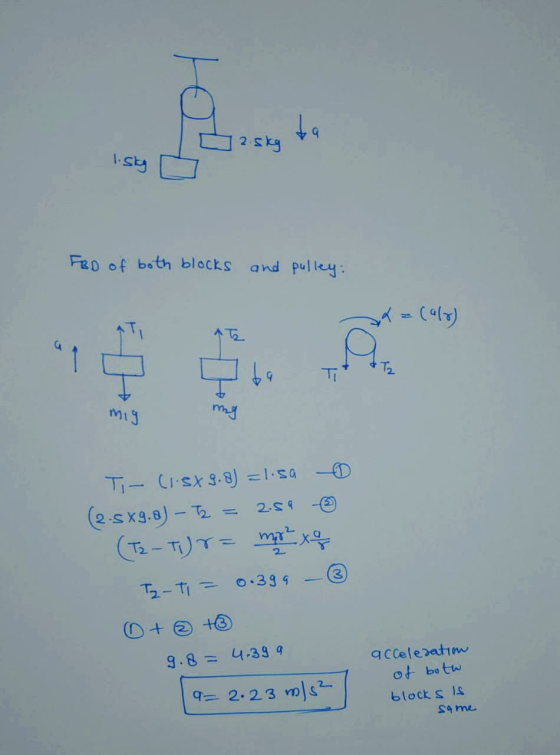

A 1.5 kg block and a 2.5 kg block are attached to opposite ends of a light rope. The rope hangs over a solid, frictionless pulley that is 32 cm in diameter and has a mass of 0.78 kg .
When the blocks are released, what is the acceleration of the lighter block?
Please show all the steps. Thank you
Homework Answers
Add Answer to:
A 1.5 kg block and a 2.5 kg block are attached to opposite ends
of a...
A 1.5 block and a 2.5 kg block are attached to opposite ends of a light...
A 1.5 block and a 2.5 kg block are attached to opposite ends of a light rope. The rope hangs over a solid, frictionless pulley that is 30 cm in diameter and has a mass of 0.75 kg. When the blocks are released, What is the acceleration of the lighter block? please with free body diagram
] A 2-kg block and a 5-kg block are attached to opposite ends of a massless...
] A 2-kg block and a 5-kg block are attached to opposite ends of a massless rope. The rope hangs over a solid, frictionless pulley that has a diameter of 40 cm and a mass of 4 kg. When the blocks are released, a 5-N force of air resistance opposes the motion of each block. Determine the acceleration of the system
The! A 4 kg block and a 6 kg block are attached to opposite ends of...
The! A 4 kg block and a 6 kg block are attached to opposite ends of a light rope. rope hangs over a solid, frictionless pulley that has a radius of 0.50 m and a mass of 4.5 kg. The pulley's moment of inertia is 1 = - MR. 2 Find: (a) the magnitude of the tension (in N) of the rope on the end with the lighter block; (b) the magnitude of the tension (in N) of the rope...
Problem #2 A 4 kg block and a 6 kg block are attached to opposite ends...
Problem #2 A 4 kg block and a 6 kg block are attached to opposite ends of a light rope. The rope hangs over a solid, frictionless pulley that has a radius of 0.50 m and a mass of 4.5 kg. The pulley's moment of inertia is I ==MR. 2 Find: (a) the magnitude of the tension (in N) of the rope on the end with the lighter block; (b) the magnitude of the tension (in N) of the rope...
A light rope is attached to a block with mass 3.40 kg that rests on a...
A light rope is attached to a block with mass 3.40 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 19.1 N . c. What is the acceleration of either block? Express your answer with the appropriate units. d. Find m. Express your answer with the appropriate units. e....
A 10 kg box resting on a horizontal, frictionless surface is attached to a 4 kg...
A 10 kg box resting on a horizontal, frictionless surface is attached to a 4 kg block by a thin light rope that passes over a frictionless pulley. The pulley has a shape of a uniform solid disk of mass 4.5 kg and a radius of 0.55 m. After the system is released 10 kg box moves to the right, 4 kg block moves down and the pulley rotates clockwise. 7 Find: (a) the magnitude of the tension (in N)...
Problem #4 A 10 kg box resting on a horizontal, frictionless surface is attached to a...
Problem #4 A 10 kg box resting on a horizontal, frictionless surface is attached to a 4 kg block by a thin light rope that passes over a frictionless pulley. The pulley has a shape of a uniform solid disk of mass 4.5 kg and a radius of 0.55 m. After the system is released 10 kg box moves to the right, 4 kg block moves down and the pulley rotates clockwise. Find: (a) the magnitude of the tension (in...
A light rope is attached to a block with mass 3.00 kg that rests on a...
A light rope is attached to a block with mass 3.00 kg that rests on a frictionless, horizontal surface. The horizontal rope passes over a frictionless, massless pulley, and a block with mass m is suspended from the other end. When the blocks are released, the tension in the rope is 15.3 N . part a) Draw free-body diagram for the 3.00-kg block. Assume block is moving to the right. Draw the vectors starting at a black dot. The location...
3. A 5.00 kg block rests on a level frictionless surface and is attached by a...
3. A 5.00 kg block rests on a level frictionless surface and is attached by a light string to an 7.00 kg hanging mass where the string passes over a massless, frictionless pulley. Ifg=9.80 m/s, what is the tension in the connecting string? 4. A light string connects a 16 kg mass and a 4.0 kg mass over a massless, frictionless pulley. (a) If g= 9.8 m/s, what is the acceleration of the system when released? (b) What is the...
A block of mass m = 3.39 kg is attached to a spring (k = 28.7...
A block of mass m = 3.39 kg is attached to a spring (k = 28.7 N/m) by a rope that hangs over a pulley of mass M = 6.78 kg and radius R = 7.81 cm, as shown in the figure. a) Treating the pulley as a solid homogeneous disk, neglecting friction at the axle of the pulley, and assuming the system starts from rest with the spring at its natural length, find the speed of the block after...
The! A 4 kg block and a 6 kg block are attached to opposite ends of a light rope. rope hangs over a solid, frictionless pulley that has a radius of 0.50 m and a mass of 4.5 kg. The pulley's moment of inertia is 1 = - MR. 2 Find: (a) the magnitude of the tension (in N) of the rope on the end with the lighter block; (b) the magnitude of the tension (in N) of the rope...
Problem #2 A 4 kg block and a 6 kg block are attached to opposite ends of a light rope. The rope hangs over a solid, frictionless pulley that has a radius of 0.50 m and a mass of 4.5 kg. The pulley's moment of inertia is I ==MR. 2 Find: (a) the magnitude of the tension (in N) of the rope on the end with the lighter block; (b) the magnitude of the tension (in N) of the rope...
A 10 kg box resting on a horizontal, frictionless surface is attached to a 4 kg block by a thin light rope that passes over a frictionless pulley. The pulley has a shape of a uniform solid disk of mass 4.5 kg and a radius of 0.55 m. After the system is released 10 kg box moves to the right, 4 kg block moves down and the pulley rotates clockwise. 7 Find: (a) the magnitude of the tension (in N)...
Problem #4 A 10 kg box resting on a horizontal, frictionless surface is attached to a 4 kg block by a thin light rope that passes over a frictionless pulley. The pulley has a shape of a uniform solid disk of mass 4.5 kg and a radius of 0.55 m. After the system is released 10 kg box moves to the right, 4 kg block moves down and the pulley rotates clockwise. Find: (a) the magnitude of the tension (in...
3. A 5.00 kg block rests on a level frictionless surface and is attached by a light string to an 7.00 kg hanging mass where the string passes over a massless, frictionless pulley. Ifg=9.80 m/s, what is the tension in the connecting string? 4. A light string connects a 16 kg mass and a 4.0 kg mass over a massless, frictionless pulley. (a) If g= 9.8 m/s, what is the acceleration of the system when released? (b) What is the...
