1.22 [1pt] Consider a sheet of paper with a thickness of 0.1 mm and a dielectric...
1.22 [1pt] Consider a sheet of paper with a thickness of 0.1 mm and a dielectric constant of 3. Suppose we would like to make a 1 F capacitor using this sheet as a spacer between two metallic plates. What should be the area of the sheet?

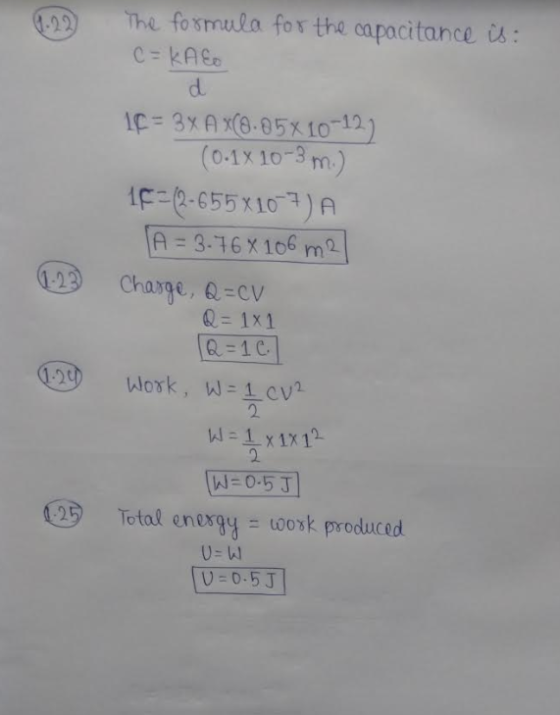

1.22 ANSWER
Suppose we took a 1 F capacitor from problem 1.22 and attached a 1V battery to it. After the charging was complete the battery was disconnected.
1.23 [1pt] What is the charge on the capacitor?
1.23 ANSWER
1.24 [1pt] How much work did the battery produce?
1.24 ANSWER
1.25 [1pt] What is the total energy of the capacitor after charging?
1.25 ANSWER
