For the business rules given below, create a Crow’s Foot diagram using Visio. Business rules are...

For the business rules given below, create a Crow’s Foot diagram using Visio. Business rules are as follows:

  • A painter can paint many paintings. Each painting is painted by only one painter.
  • A gallery can exhibit many paintings. Each painting is exhibited in only one gallery.
  • A painter can exhibit paintings at more than one gallery at a time.

please help and use visio please thank you

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

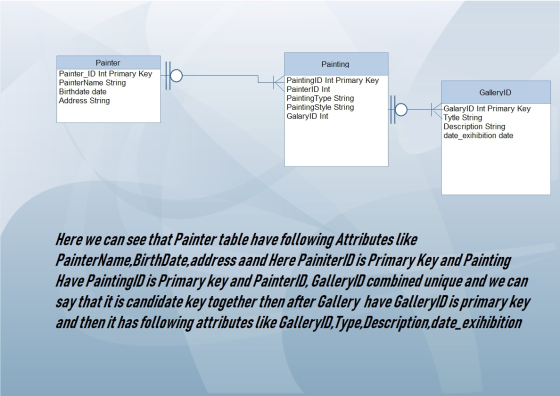

if you still have any Problem regarding this question please comment and if you like my code please appreciate me by thumbs up thank you.........
