As shown above, mass m = 4.8 kg slides on a frictionless incline and is attached...

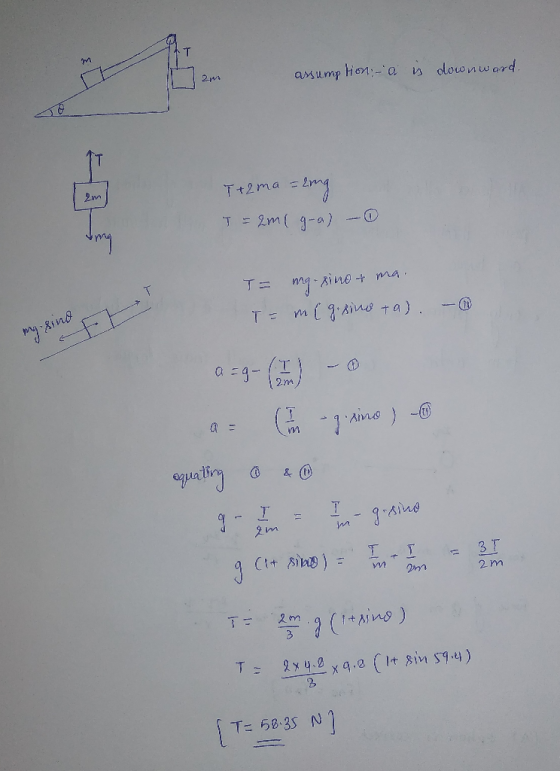

As shown above, mass m = 4.8 kg slides on a frictionless incline and is attached by a string to another mass 2m which hangs over a pulley. The incline makes an angle \theta θ = 59.4 degrees with the horizontal. The string connecting the masses as well as the pulley have negligible mass and friction. What is the tension (in Newtons) in the connecting string?
Homework Answers
Add Answer to:
As shown above, mass m = 4.8 kg slides on a frictionless incline
and is attached...
A block A with a mass of 3 kg rests on a horizontal table top. The...
A block A with a mass of 3 kg rests on a horizontal table top. The coefficient of kinetic friction, μk = 0.5. A horizontal string is attached to A and passes over a massless, frictionless pulley, and block B with mass 2 kg hangs from it. Because of the pull of gravity, the masses accelerate. What is the Tension in the string (in Newtons)?
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with...
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with an acceleration 0.300 m/s. The plane makes an angle theta-30.0 with th block is connected by a string, of negligible mass, that is wrapped around a pulley pulley has a mass Mp-3.00 kg, radius 0.0200 m and may be modeled as a uniform disc e horizontal. The oefficient of kinetic friction on the incline and the torque exerted on the pulley. A numerical value...
Consider the scenario shown in the diagram below. A box (mass m1) is on a slope,...
Consider the scenario shown in the diagram below. A box (mass m1) is on a slope, which is inclined at an angle theta with respect to the horizontal. The box is connected via a string and pulley to a hanging weight (mass m2). The string and the pulley are assumed to be massless and frictionless, but there is friction between the box and the incline (with coefficient of kinetic friction mu k). Find an expression for the tension T in...
A mass m slides up an incline (with \theta\:θ= 30.34 degrees above the horizontal) until it...
A mass m slides up an incline (with \theta\:θ= 30.34 degrees above the horizontal) until it stops momentarily because of friction. The coefficient of static friction between the mass and incline is 0.53; the coefficient of kinetic friction between the mass and incline is 0.08. At a given instant, the mass is moving with speed of 6.59 m/s up the incline. At what later time (in seconds) will the mass come to a stop?
A 20 kg block with a pulley attached slides along a frictionless ledge. It is connected...
A 20 kg block with a pulley attached slides along a frictionless ledge. It is connected by a massless string to a 5 0 kg block via lire arrangement shown in Figure. draw complete free body diagrams for the masses and Find the acceleration of each block and the tension in be connecting string.
A box (mass 25.8 kg) sits on a rough incline that makes an angle α =...
A box (mass 25.8 kg) sits on a rough incline that makes an angle α = 28.1o with the horizontal. A massless string is tied to the box, runs parallel to the incline, passes over a massless, frictionless pulley, and is tied to mass M hanging on the other end. Assume μs = 0.455 is the coefficient of static friction between the box and the surface of the plane. Find the maximum value of M, in kg, for which this...
A crate of mass m = 1.12 kg is on a frictionless incline that makes an...
A crate of mass m = 1.12 kg is on a frictionless incline that makes an angle of θ = 27.6 degrees with horizontal. A force of magnitude P = 7.24 N is applied to the crate in a direction parallel and up the incline, as shown. Write an expression for the acceleration ax of the crate, where positive x is up the incline. Your answer should be in terms of m, P, θ, and g (9.80 m/s2).
Two blocks are connected by a lightweight string passing over a pulley, as shown in the figure below. The block with ma...
Two blocks are connected by a lightweight string passing over a pulley, as shown in the figure below. The block with mass m1 = 16.5 kg on the incline plane accelerates up the plane with negligible friction. The block's acceleration is a = 1.40 m/s2, and the tension in the segment of string attached to this block is T1. The hanging block has a mass of m2 = 23.5 kg, and the tension in the string attached to it is T2....
In the figure below, two blocks are connected over a pulley. The mass of block A...
In the figure below, two blocks are connected over a pulley. The mass of block A is 32 kg, and the coefficient of kinetic friction between A and the incline is 0.16. Angle θ is 30°. Block A slides down the incline at constant speed. What is the mass of block B? Assume the connecting rope has negligible mass. (The pulley's function is only to redirect the rope.) kg Frictionless massless pulley
16) When the frictionless system shown above is accelerated by an applied force of magnitude F....
16) When the frictionless system shown above is accelerated by an applied force of magnitude F. the tension in the string between the DIOCR is (SHOW YOUR WORK AND HOW YOU COME UP WITH YOUR ANSWER) a) 2F b) F c) 2/3 F d) F e) 1/3 F 17) A block of mass 3 kg can move without friction on a horizontal table. This block is attached to another block of mass m by a cord that passes over a...
6. (20 points) A block of mass M-10.0 kg slides down a rough inclined plane with an acceleration 0.300 m/s. The plane makes an angle theta-30.0 with th block is connected by a string, of negligible mass, that is wrapped around a pulley pulley has a mass Mp-3.00 kg, radius 0.0200 m and may be modeled as a uniform disc e horizontal. The oefficient of kinetic friction on the incline and the torque exerted on the pulley. A numerical value...
Consider the scenario shown in the diagram below. A box (mass m1) is on a slope, which is inclined at an angle theta with respect to the horizontal. The box is connected via a string and pulley to a hanging weight (mass m2). The string and the pulley are assumed to be massless and frictionless, but there is friction between the box and the incline (with coefficient of kinetic friction mu k). Find an expression for the tension T in...
A 20 kg block with a pulley attached slides along a frictionless ledge. It is connected by a massless string to a 5 0 kg block via lire arrangement shown in Figure. draw complete free body diagrams for the masses and Find the acceleration of each block and the tension in be connecting string.
In the figure below, two blocks are connected over a pulley. The mass of block A is 32 kg, and the coefficient of kinetic friction between A and the incline is 0.16. Angle θ is 30°. Block A slides down the incline at constant speed. What is the mass of block B? Assume the connecting rope has negligible mass. (The pulley's function is only to redirect the rope.) kg Frictionless massless pulley
16) When the frictionless system shown above is accelerated by an applied force of magnitude F. the tension in the string between the DIOCR is (SHOW YOUR WORK AND HOW YOU COME UP WITH YOUR ANSWER) a) 2F b) F c) 2/3 F d) F e) 1/3 F 17) A block of mass 3 kg can move without friction on a horizontal table. This block is attached to another block of mass m by a cord that passes over a...
