The refractive index of silicon at 800 nm wavelength is n = 3.7 + 0.005i. (1)...

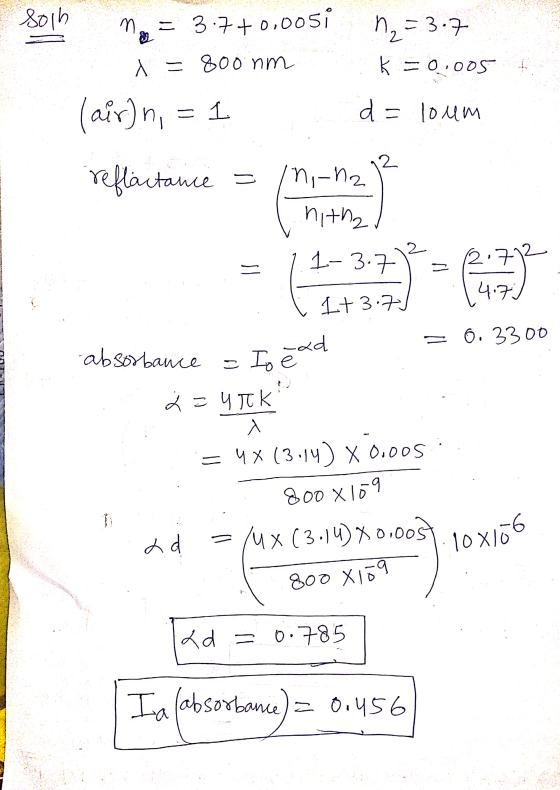

The refractive index of silicon at 800 nm wavelength is n = 3.7 + 0.005i.
(1) What is the reflectance when light is normally incident from air to a semi-infinite silicon?
(2) How much light energy is absorbed by silicon after propagating 10 mm inside silicon?

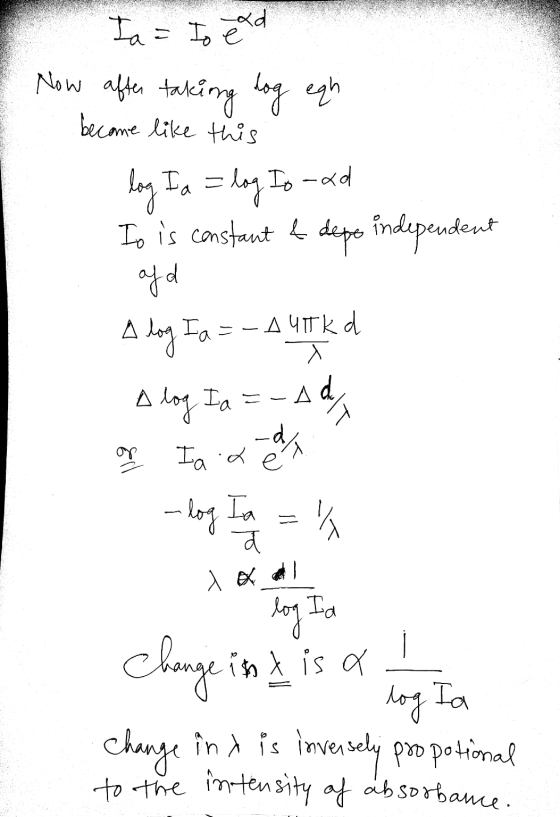

(3) How does absorption change when the wavelength of incident light is reduced, and what is the reason?
Homework Answers
