A wire whose mass per unit length is 0.2kg/m is stretched with tension of 800N. The...

A wire whose mass per unit length is 0.2kg/m is stretched with tension of 800N. The wire's fundamental frequency is in tune with first overtone of a pipe 2.5m long that is closed at one end . The speed of sound is 350m/s. How long is the wire?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

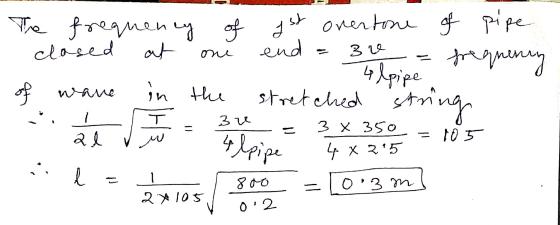

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A wire whose mass per unit length is 0.2kg/m is stretched with tension of 800N. The...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A string with a mass per length of 2.00 g/m is stretched with a force of...

    A string with a mass per length of 2.00 g/m is stretched with a force of 120 N between two points that are 0.400 m apart. The fundamental frequency of the stretched string is in tune with the frequency of the second mode of an organ pipe filled with air at −20°C and open at both ends. The speed of sound in air at 0°C is 331 m/s. What is the length of the organ pipe?

  • A tension FT is applied to a wire with mass per unit length μ and length...

    A tension FT is applied to a wire with mass per unit length μ and length L. When struck, it vibrates at its fundamental frequency f1. The wire is then removed and stretched to twice its original length 2L. If the same tension is applied to the stretched wire, what will be its new fundamental frequency?

  • The A string of a violin is 34 cm long between fixed points with a fundamental...

    The A string of a violin is 34 cm long between fixed points with a fundamental frequency of 440 Hz and a mass per unit length of 6.2×10−4 kg/m . What is the wave speed in the string? What is the tension in the string? What is the length of the tube of a simple wind instrument (say, an organ pipe) closed at one end whose fundamental is also 440 Hz if the speed of sound is 343m/s in air?...

  • A string of mass per unit length μ 1 g/nn is stretched to a tension of...

    A string of mass per unit length μ 1 g/nn is stretched to a tension of T = 20 N. A wave is induced on the string of wavelength λ 0.5 m. Find the frequency of the wave (f =?) Problem 3: n air column closed at one end and open at another end vibrates at a fundamental frequency of f = 261.6 Hz. What is the length of the air column (L) Problem 4 A child cries with an...

  • EXAMPLE 14.8 Harmonics of a Stretched Wire GOAL Calculate string harmonics, relate them to sound, and...

    EXAMPLE 14.8 Harmonics of a Stretched Wire GOAL Calculate string harmonics, relate them to sound, and combine them with tensile stress. PROBLEM (a) Find the frequencies of the fundamental, second, and third harmonics of a steel wire 1.00 m long with a mass per unit length of 2.00 x 10-kg/m and under a tension of 80.0 N. (b) Find the wavelengths of the sound waves created by the vibrating wire for all three modes. Assume the speed of sound in...

  • Q. A steel wire with mass 37.0 g and length 7.10 m is stretched tightly between...

    Q. A steel wire with mass 37.0 g and length 7.10 m is stretched tightly between its two endpoints. In its fundamental mode, the wire vibrates at a frequency of 59.0 Hz. When plucked, traveling waves bounce from one end to the other. a) What is the speed of waves propagating along the wire? b) Calculate the tension in the wire. c) A standing wave at the fundamental frequency has an amplitude of 0.340 cm . Calculate the magnitude of...

  • A rope of length 1.40 m is stretched between two supports with a tension that makes...

    A rope of length 1.40 m is stretched between two supports with a tension that makes the transverse waves have a speed of 47.9 m/s . Part A What is the wavelength of the fundamental harmonic? Part B What is the frequency of the fundamental harmonic? Part C What is the wavelength of the second overtone? Part D What is the frequency of the second overtone? Part E What is the wavelength of the fourth harmonic? Part F What is...

  • A string with a linear mass density of 2.00 gm/m is stretched with a force of...

    A string with a linear mass density of 2.00 gm/m is stretched with a force of 150 N between two points that are 0.500 m apart. The frequency of the second mode of the stretched string is in tune with the fundamental frequency of an organ pipe filled with air and open at both ends. The velocity of sound in air at 0°C is 331 m/s. What is the length of the organ pipe? Answer choices are in cm thank...

  • A heavy stone of mass m is hung from the ceiling by a thin 8.25-g wire...

    A heavy stone of mass m is hung from the ceiling by a thin 8.25-g wire that is 100 cm long. When you gently pluck the upper end of the wire, a pulse travels down the wire and returns 3.6 ms later, having reflected off the lower end. The speed of sound in the room is 344 m/s, and the stone is heavy enough to prevent the lower end of the wire from moving. If the wire is vibrating in...

  • A tube 1.20 m long is closed at one end. A stretched wire is placed near...

    A tube 1.20 m long is closed at one end. A stretched wire is placed near the open end. The wire is 0.330 m long and has a mass of 9.60 g. It is fixed at both ends and vibrates at the second harmonic. This sets the air column in the tube into oscillation at its fundamental frequency by resonance. (a) Find the frequency of oscillation of the air column and (b) the tension in the wire
