Question

A string with a mass per length of 2.00 g/m is stretched with a force of...

A string with a mass per length of 2.00 g/m is stretched with a force of 120 N between two points that are 0.400 m apart. The fundamental frequency of the stretched string is in tune with the frequency of the second mode of an organ pipe filled with air at −20°C and open at both ends. The speed of sound in air at 0°C is 331 m/s. What is the length of the organ pipe?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

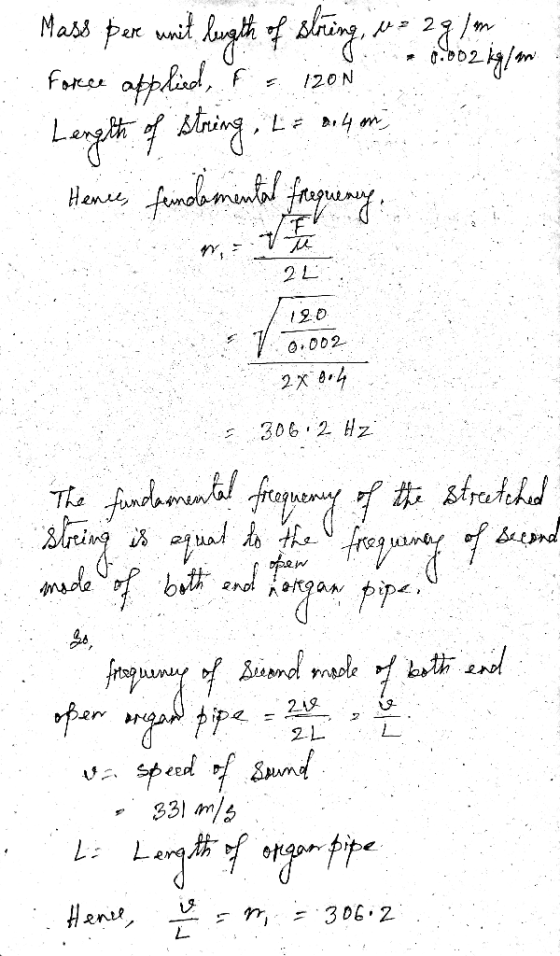

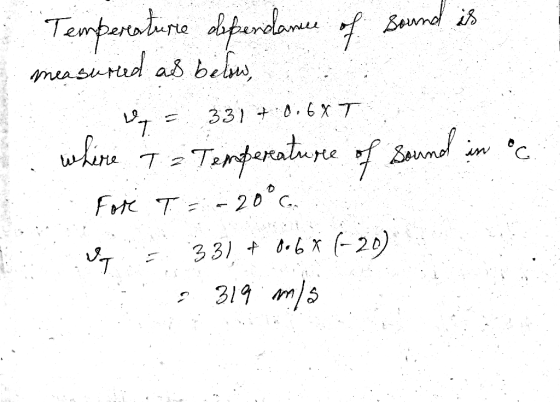

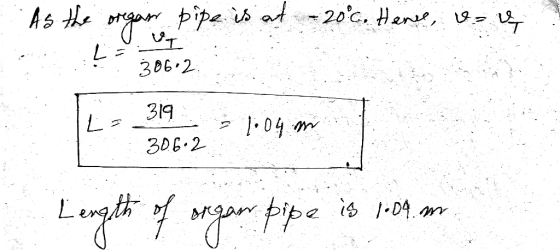

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A string with a mass per length of 2.00 g/m is stretched with a force of...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A string with a linear mass density of 2.00 gm/m is stretched with a force of...

    A string with a linear mass density of 2.00 gm/m is stretched with a force of 150 N between two points that are 0.500 m apart. The frequency of the second mode of the stretched string is in tune with the fundamental frequency of an organ pipe filled with air and open at both ends. The velocity of sound in air at 0°C is 331 m/s. What is the length of the organ pipe? Answer choices are in cm thank...

  • A string with a mass per length of 2.00 g/m is stretched between two points that...

    A string with a mass per length of 2.00 g/m is stretched between two points that are 0.400 m apart. The second mode of frequency of the stretched string is 50.0 Hz lower than the third mode frequency. What is the tension in the string? Answer is 281 N, not sure of the equations to use.

  • 1. a.) A stretched string held by two students has a length of 1.5m and a...

    1. a.) A stretched string held by two students has a length of 1.5m and a mass of 0.25kg. How much tension must the two kids pull on the rope to produce waves on the string that would travel 5 m/s? b.) With what frequency must one student shake the string to produce the first standing wave? 2. Design the length of a organ pipe, open at both ends that would produce note A (110Hz) as a fundamental frequency (v=343m/s)...

  • A string with a mass of 5.00 g and a length of 4.00 m has one...

    A string with a mass of 5.00 g and a length of 4.00 m has one end attached to a wall; the other end is draped over a pulley and attached to a hanging object with a mass of 7.00 kg. If the string is plucked, what is the fundamental frequency of vibration? Hz -12 points PSE6 18.P.036. My Note The overall length of a piccolo is 27.0 cm. The resonating air column vibrates as in a pipe open at...

  • A 0.400 m string fixed at both ends has a mass per unit length of 9.00...

    A 0.400 m string fixed at both ends has a mass per unit length of 9.00 x 10-3 kg/m is vibrating at its second harmonic mode. This frequency is in resonance with the second resonance mode of a 1.75 m long pipe open at one end. (Answer in three significant figures). A. Sketch the standing wave pattern of the second harmonic of the string. Indicate node (N) and anti-node (A) in the sketch. B. What is the second resonance frequency...

  • A wire whose mass per unit length is 0.2kg/m is stretched with tension of 800N. The...

    A wire whose mass per unit length is 0.2kg/m is stretched with tension of 800N. The wire's fundamental frequency is in tune with first overtone of a pipe 2.5m long that is closed at one end . The speed of sound is 350m/s. How long is the wire?

  • At T = 22 ∘C, how long must an open organ pipe be to have a...

    At T = 22 ∘C, how long must an open organ pipe be to have a fundamental frequency of 392 Hz ? The speed of sound in air is v≈(331+0.60T)m/s, where T is the temperature in ∘C. If this pipe is filled with helium at 20∘C and 1 atm, what is its fundamental frequency? The speed of sound in helium is 1005 m/s.

  • algebra based physics 1. A steel guitar string has a mass per length of 0.720 g/m....

    algebra based physics 1. A steel guitar string has a mass per length of 0.720 g/m. If the length of the string between two fixed ends is 54.6 cm, what tension is needed for fundamental frequency of middle C (261.6 Hz)? a. What is the wavelength of the fundamental mode? b. What is the speed of the waves on the string? c. What tension is needed for the fundamental frequency? 2. Sketch the waveform of the third harmonic for a...

  • help on #3 and #4 please show all work 3. A string with a mass per...

    help on #3 and #4 please show all work 3. A string with a mass per unit length of 3.4 x 10-**. is attached to a string vibrator (frequency = 120 Hz) with a string extended over a pulley with mass hanging on the string (like in our lab). The length of the vibrating portion the string (between the string vibrator and the pulley) is 75 cm. Calculate the mass that would need to be hong the string in order...

  • Consider a string having linear mass density of 0.40 g/m stretched to a length of 0.50...

    Consider a string having linear mass density of 0.40 g/m stretched to a length of 0.50 m by a tension of 75 N, vibrating at the 6th harmonic. It excites an open pipe into the second overtone. What is the length of the pipe
