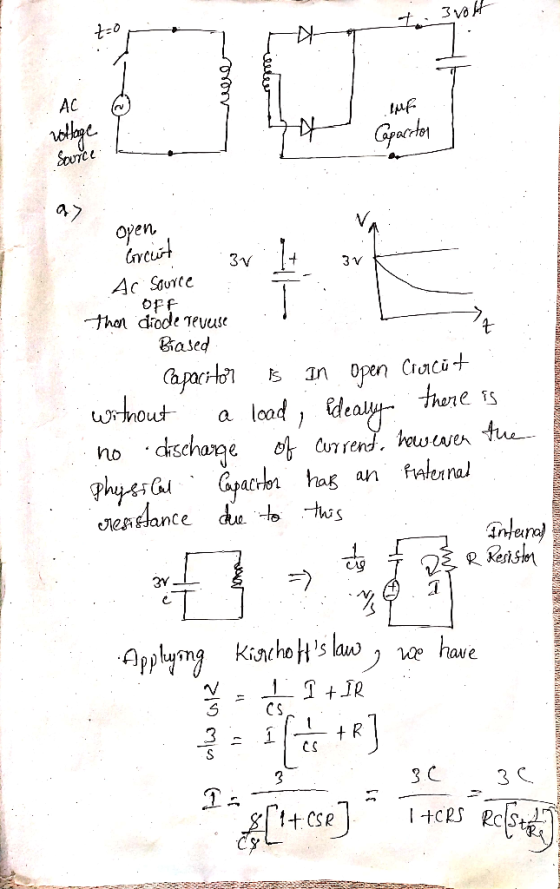

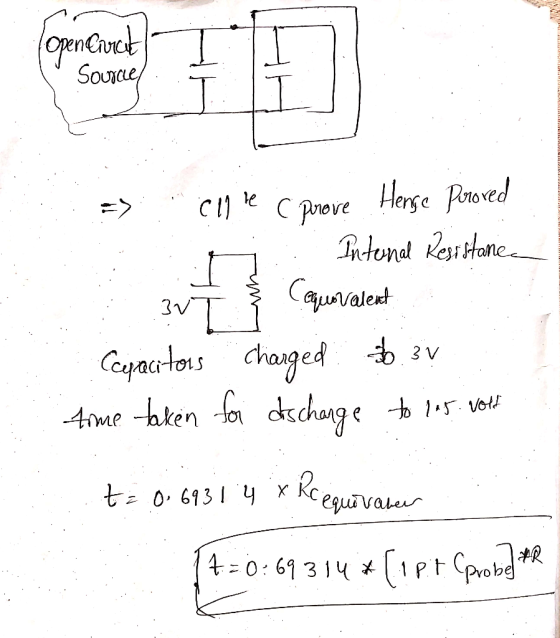

5. A diode is used to rectify an ac voltage from a transformer and charge a 1uF capacitor. Estimate how long it will take the capacitor to discharge from 3 volts to 1.5 volts (once ac voltage is turned off) a) with no load b) with a scope probe across the capacitor. (note: never is not the correct answer)
6. Repeat problem 5 but use the largest value 3 volt super capacitor available from digikey.com.
5. A diode is used to rectify an ac voltage from a transformer and charge a...
2. Calculate the reverse breakdown voltage for a pn junction with Nd=1e19 and Na=2.75e16. 5. A diode is used to rectify an ac voltage from a transformer and charge a 1uF capacitor. Estimate how long it will take the capacitor to discharge from 3 volts to 1.5 volts (once ac voltage is turned off) a) with no load b) with a scope probe across the capacitor. (note: never is not the correct answer)
Use matlab to solve
Project A half-wave diode rectifier shown in the following Fig. 1 is an electrical cirouit that coeverts AC voltage to DC voltage. The voltage of the source is y,Sin(utwhere -f in whicfis the frequency. The operation of the circuit is illustrated in Fig. 2 where the dashod line shows the source veltage and the solid line shows the voltage across the resistor Diode Time Fig. 1 In the first cycle, thediode is on (conductingcurrent)fromに0umi 4Atthstme thediodetums...
A full-wave diode rectifier supplies a 30Ω resistive load from a 400Hz, 110V single-phase AC supply. A capacitor is connected in parallel with the load. Calculate the capacitance required if the maximum peak-to-peak voltage ripple across the resistor is to be restricted to 10V. You may assume that the RC product of the resistance and capacitance will be significantly greater than the period of the AC waveform. State any other assumptions made.
Problem 2 A 1.5 volt energy source is to used to power a 5 volt, 1 amp load. A buck-boost converter is used for this application. A suitable transistor is found with an on-resistance of 35 mQ, and a Schottky diode is found with a forward drop of 0.5 volts. The on resistance of the Schottky diode may be ignored. The circuit is shown in the following figure. 1 A 100 HH 5 V Load 1.5 V DT T f,...
Question 4. (a) A full-wave bridge rectifier power supply is powered from the secondary of a transformer which has a rms secondary voltage of 15.6V. The primary of the transformer is connected to a 50Hz, 230VRMS power supply. A 2700uF filter capacitor is used. A current of 1.5 Amp is drawn from the supply. (i) Sketch a schematic diagram of the setup. (ii) Calculate the mean de output voltage. Assume each power diode has a forward voltage drop of 1...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will: Take 120volts ac, 60 hz, sinusoidal waveform from the wall power and convert it to a “regulated” dc value giving 15 volts +, - 1.0 volts across a 1200-ohm output load resistor with no more than 2% ripple voltage, all at a total component parts cost of less than $175.00 (US$). Your design process/ analysis is to be conducted by hand. Consider for this design task: Assume an ideal transformer and...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will:
Take 120volts ac, 60 hz, sinusoidal waveform and convert
it to a “regulated “dc value
giving 12 volts +, - 1 volt across a 2000-ohm output
load resistor with no more than 2%
ripple voltage.
You may assume:
a. An ideal power transformer as discussed in class.
b. For hand computations, you must assume a diode given by
Figure 4.8 page 185.
c. A filter capacitor sized per the textbook equation...
(6) A blue LED with a forward voltage drop of 3.5V is to be energized from a 12 volt battery. To light the blue LED to ful brightness requires a current of 20 mA through the LED. The blue LED has a peak inverse voltage rating of 5 V. i) Draw the circuit dingram of the arrangement you will use to light the LED to full brightness. (ii What is the value of the resistor you will use in your...
8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor in a circuit which has a resistance R, a charge Q CV will build up across the capacitor. This does not happen instantaneously, but takes some time. The charge builds up exponentially with a characteristic time r = RC. Charging: V = v. 1 - e-t/RC) Discharging: Vc = V e-t/RC Page 2 of 3 When t = RC , the exponential is lle,...
21. [2] Look at Figure 30-26 and you will see a capacitor charge and discharge curve in B. for the circuit shown in A. Will the capacitor charge faster, slower or take the same time if the battery voltage in Figure 30-26A is changed from 10 volts to 20 volts and why? 1 time-constant period), the voltage act switched to DISCHARGE, the voltage Example 30-6 Assume a de voltage source of 100 Vis applied to a series RC circuit consisting...
