Consider a charged insulating sphere with uniform volume charge density ρ and radius a. 1.Calculate the...

Question

Question

Consider a charged insulating sphere with uniform volume charge density ρ and radius a.

1.Calculate the electric field outside of the sphere (r > a)

2.Calculate the electric field inside the sphere (r < a)

3.Calculate V(r), using V(r → ∞) as the reference, for both r > a, and r < a.

science physics

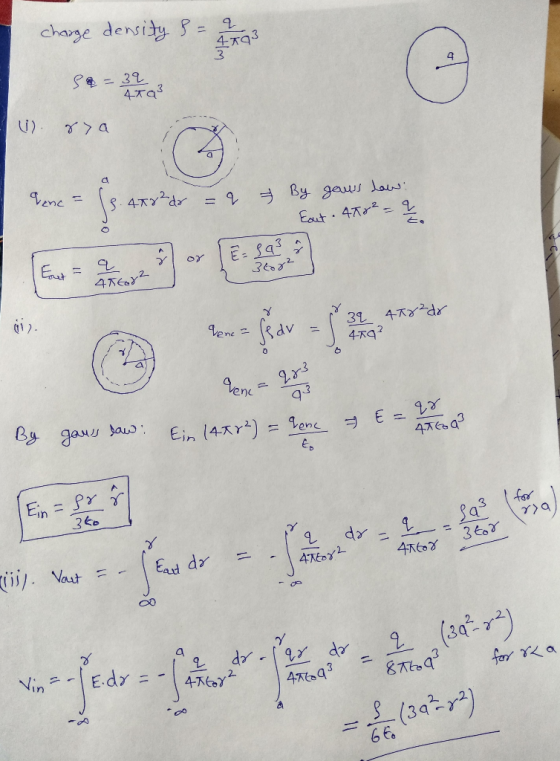

Answer 1

Answer #1

please thumbs up
