An insulating sphere with radius a has a uniform charge density ρ. The sphere is not...

An insulating sphere with radius a has a uniform charge density ρ. The sphere is not centered at the origin but at r⃗ center=b⃗ . Find the electric field inside the sphere at r⃗ from the origin..

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

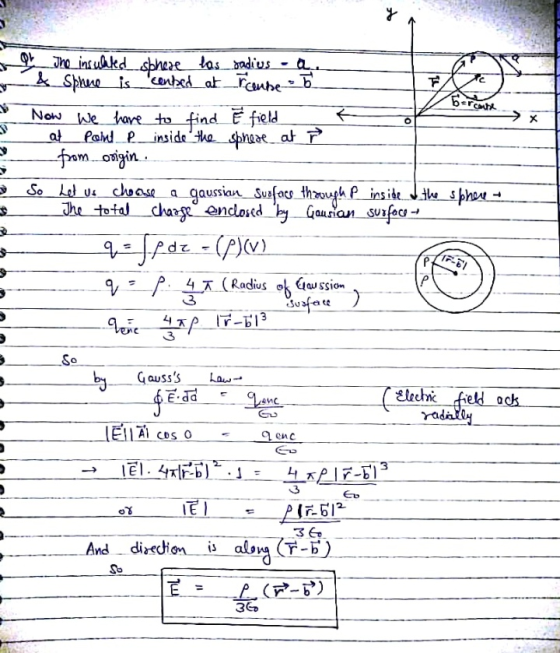

Answer #1

please give feedback

0 0
Add a comment
Know the answer?
Add Answer to:
An insulating sphere with radius a has a uniform charge density ρ. The sphere is not...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A solid insulating sphere of radius R has a non-uniform charge density ρ = Ar2 ,...

    A solid insulating sphere of radius R has a non-uniform charge density ρ = Ar2 , where A is a constant and r is measured from the center of the sphere. a) Show that the electric field outside the sphere (r > R) is E = AR5 /(5εor 2 ). b) Show that the electric field inside the sphere (r < R) is E = AR3 /(5εo). Hint: The total charge Q on the sphere is found by integrating ρ...

  • Consider a charged insulating sphere with uniform volume charge density ρ and radius a. 1.Calculate the...

    Consider a charged insulating sphere with uniform volume charge density ρ and radius a. 1.Calculate the electric field outside of the sphere (r > a) 2.Calculate the electric field inside the sphere (r < a) 3.Calculate V(r), using V(r → ∞) as the reference, for both r > a, and r < a.

  • A solid, insulating sphere of radius a has a uniform charge density ρ and a total charge Q

    Guided Problem 4 -Gauss's LawA solid, insulating sphere of radius a has a uniform charge density ρ and a total charge Q. Concentric with this sphere is an uncharged, conducting hollow sphere whose inner and outer radii are b and c as shown in the following figure. (a) Find the magnitude of the electric field in the regions: r<a, a<r<b, and r>c. (b) Determine the induced charge per unit area on the inner and outer surfaces of the hollow sphere.Solution scheme:...

  • A solid sphere, made of an insulating material, has a volume charge density of ρ =...

    A solid sphere, made of an insulating material, has a volume charge density of ρ = a/r What is the electric field within the sphere as a function of the radius r? Note: The volume element dV for a spherical shell of radius r and thickness dr is equal to 4πr2dr. (Use the following as necessary: a, r, and ε0.), where r is the radius from the center of the sphere, a is constant, and a > 0. magnitude  E= (b)...

  • A spherical ball of radius R1 is charged with a constant charge density ρ. However a...

    A spherical ball of radius R1 is charged with a constant charge density ρ. However a smaller spherical hollow region of radius R2 is located at the center. Show that the electric field E inside the hollow region is uniform and find the electric field. When the electric field at any point in the cavity is equal to the electric field produced by the big sphere with uniform charge density ρ plus the electric field produced by the cavity with...

  • Find the electric field due to a charged insulating sphere (radius R) with non-uniform charge density...

    Find the electric field due to a charged insulating sphere (radius R) with non-uniform charge density rho=beta*r^2 with beta>0. Find the electric field due to a charged insulating sphere (radius R) with non-uniform charge density rho=beta*r^2 with beta greaterthan 0.

  • A hollow insulating sphere of inner radius "a" and outer radius "b" has a non-uniform charge...

    A hollow insulating sphere of inner radius "a" and outer radius "b" has a non-uniform charge per unit volume p that varies with distance r from the center of the sphere according to the expression p=Cr^2, where C is a given constant. a) what is the total charge Q contained in the hollow sphere b) what is the electric field at a point inside the sphere, a< r < b

  • A solid sphere of nonconducting material has a uniform positive charge density ρ (i.e. positive charge...

    A solid sphere of nonconducting material has a uniform positive charge density ρ (i.e. positive charge is spread evenly throughout the volume of the sphere; ρ=Q/Volume). A spherical region in the center of the solid sphere is hollowed out and a smaller hollow sphere with a total positive charge Q (located on its surface) is inserted. The radius of the small hollow sphere R1, the inner radius of the solid sphere is R2, and the outer radius of the solid...

  • A solid insulating sphere of radius R has a uniform charge density of p.Which of the...

    A solid insulating sphere of radius R has a uniform charge density of p.Which of the following correctly determines the E-field at r from the center if r<R? a) pr/3E0 b) pr/2E0 c) 4pr/3E0 d) pr/4E0
