Question

For a binary search tree, using the minimum and successor operations to identify the kth smallest element in the tree in C.

Answer 1

`Hey,

Note: Brother if you have any queries related the answer please do comment. I would be very happy to resolve all your queries.

#include <stdio.h>
#include <stdlib.h>

#define ARRAY_SIZE(arr) sizeof(arr)/sizeof(arr[0])

typedef struct node_t node_t;

/* Binary tree node */
struct node_t
{
int data;
int lCount;

node_t* left;
node_t* right;
};

/* Iterative insertion
Recursion is least preferred unless we gain something
*/
node_t *insert_node(node_t *root, node_t* node)
{
/* A crawling pointer */
node_t *pTraverse = root;
node_t *currentParent = root;

// Traverse till appropriate node
while(pTraverse)
{
currentParent = pTraverse;

if( node->data < pTraverse->data )
{
/* We are branching to left subtree
increment node count */
pTraverse->lCount++;
/* left subtree */
pTraverse = pTraverse->left;
}
else
{
/* right subtree */
pTraverse = pTraverse->right;
}
}

/* If the tree is empty, make it as root node */
if( !root )
{
root = node;
}
else if( node->data < currentParent->data )
{
/* Insert on left side */
currentParent->left = node;
}
else
{
/* Insert on right side */
currentParent->right = node;
}

return root;
}

/* Elements are in an array. The function builds binary tree */
node_t* binary_search_tree(node_t *root, int keys[], int const size)
{
int iterator;
node_t *new_node = NULL;

for(iterator = 0; iterator < size; iterator++)
{
new_node = (node_t *)malloc( sizeof(node_t) );

/* initialize */
new_node->data = keys[iterator];
new_node->lCount = 0;
new_node->left = NULL;
new_node->right = NULL;

/* insert into BST */
root = insert_node(root, new_node);
}

return root;
}

int k_smallest_element(node_t *root, int k)
{
int ret = -1;

if( root )
{
/* A crawling pointer */
node_t *pTraverse = root;

/* Go to k-th smallest */
while(pTraverse)
{
if( (pTraverse->lCount + 1) == k )
{
ret = pTraverse->data;
break;
}
else if( k > pTraverse->lCount )
{
/* There are less nodes on left subtree
Go to right subtree */
k = k - (pTraverse->lCount + 1);
pTraverse = pTraverse->right;
}
else
{
/* The node is on left subtree */
pTraverse = pTraverse->left;
}
}
}

return ret;
}

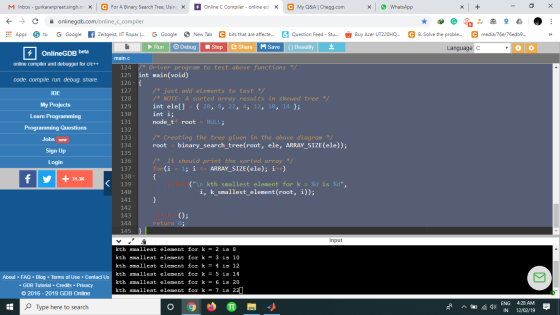

/* Driver program to test above functions */
int main(void)
{
/* just add elements to test */
/* NOTE: A sorted array results in skewed tree */
int ele[] = { 20, 8, 22, 4, 12, 10, 14 };
int i;
node_t* root = NULL;

/* Creating the tree given in the above diagram */
root = binary_search_tree(root, ele, ARRAY_SIZE(ele));

/* It should print the sorted array */
for(i = 1; i <= ARRAY_SIZE(ele); i++)
{
printf("\n kth smallest element for k = %d is %d",
i, k_smallest_element(root, i));
}

getchar();
return 0;
}

Kindly revert for any queries

Thanks.
