A standard PLC typically A. provides an internal means for testing the functionality of the input...
A standard PLC typically
A. provides an internal means for testing the functionality of the input circuit.
B. has one microprocessor.
C. has redundant microprocessors.
D. uses redundant backplane circuitry between the controller and I\O modules.
Homework Answers

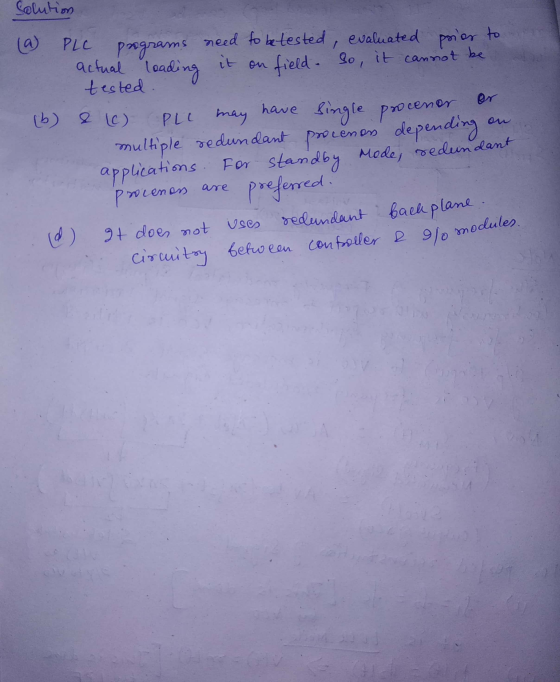

The
question is about basic features of PLC. Every option is explained
briefly.
