a binary signal is filtered with r = 1 and then modulated onto a carrier for...
a binary signal is filtered with r = 1 and then modulated onto a carrier for transmission at 9600bps

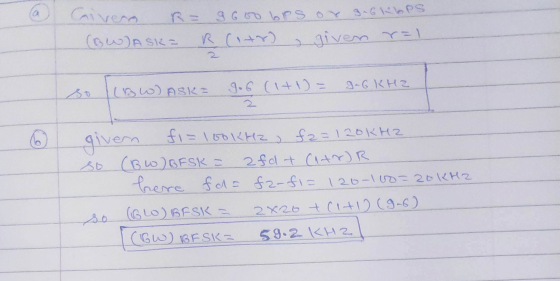

a) what is the bandwidth requirements if the modulation is ASK?
b) BFSK with f1 = 100khz and f2 = 120khz (FSK bandwidth = B = 2fd + (1+r)R
c) using the same centre frequency as in b) , choose two new frequencies with minimum frequency separation
Homework Answers
Add Answer to:
a binary signal is filtered with r = 1 and then modulated onto a
carrier for...
comunication Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. w...
comunication
Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with phase
Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with...
Suppose a digital data signal b(t) is transmitted using Binary Phase Shift Keying (BPSK) modulati...
please show all steps and explaination
Suppose a digital data signal b(t) is transmitted using Binary Phase Shift Keying (BPSK) modulation. a. If the digital data signal b(t) is NRZ binary waveform with bit rate of 1 Mbps and the 2. modulation carrier frequency is 10 MHz, provide an approximate magnitude plot of the frequency spectrum. What is the required bandwidth of this BPSK modulated signal? What happens if you half the bit rate? Provide an approximate magnitude plot of...
A carrier signal c(?) = ? cos(??) is modulated by a single-tone signal ?(?) = ?...
A carrier signal c(?) = ? cos(??) is modulated by a single-tone signal ?(?) = ? ???(??) to form the AM signal: s(t)= [? + ????(??)]???(??), where ? = 10, ? = 2, ? = 1000 ??, ? = 50 ??. a- Obtain an expression for the sidebands of ?(?). b- Sketch ?(?) c- Sketch the spectra |?(?)|, |?(?)|, |?(?)| against f. d- Calculate the modulation index (m) e- What bandwidth is required to transmit the AM signal. f- Show...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modula...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal be...
Please show all work with the answer. Thank you!
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a 300-Hz sinusoid before modulation is applied, the output modulated is T1-e-2t Determine (a) instantaneous signal phase and (b) instantaneous signal frequency (radian and cyclic). (c) Sketch the forms of the instantaneous signal phase and frequency.
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amp...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
Consider an FM system where the modulated signal is
Consider an FM system where the modulated signal is s(t) = 10 cos (2πfct + 2πkf∫0t m(τ)dτ)where the carrier frequency is fc = 100 MHz. The modulation signal is m(t) = 10 cos(2πfmt), where fm = 3 kHz. (a) Assuming that kf = 10, what is the approximate bandwidth of s(t)? (b) Find the instantaneous frequency fi(t) of s(t). What are the maximum and minimum values of fi(t) ?
Question 4 (a) A 3,000 bit/second data terminal is connected to a modem with 25% raised-cosine...
Question 4 (a) A 3,000 bit/second data terminal is connected to a modem with 25% raised-cosine roll-off pulse shaping is used. Calculate the transmission bandwidth Bt required at the modem output for each of the following schemes: (0) Binary amplitude-shift keying (ASK) transmission. [2 marks] (ii) Binary frequency-shift keying (FSK) transmission with a frequency deviation of +2,400 Hz around the carrier. [2 marks] (iii) 16-level quadrature amplitude modulation (QAM). [2 marks] (b) FSK transmission is used to transmit 750 bps...
2. [20 points] The carrier c(t-Acce(2106 t) is frequency modulated by the sinusoid signal m(t) 2cos...
2. [20 points] The carrier c(t-Acce(2106 t) is frequency modulated by the sinusoid signal m(t) 2cos (2000mt). The deviation constant is kr 3000 Hz/V Determine the bandwidth of the modulated signal using Carson's rule a. Sketch the magnitude of the spectrum of the modulated signal (plot only those frequency components that lie within the bandwidth derived in part a) with detailed information such as the areas of delta function determined by the Bessel function, frequency separation between each spectrum (note...
A modulation of Binary Phase Shift Keying (BFSK) can accomplished by simply multiplying the original signal r(t) with th...
A modulation of Binary Phase Shift Keying (BFSK) can accomplished by simply multiplying the original signal r(t) with the carrier signal. Assume that input bit stream is r(t)=[1001] and carrier signal is c(t)= cos wt. With a suitable block diagram and constellation diagram, analyze the concepts of the flow of signal from input r(t) until the yield of output s(t) and determine the type of signaling produced by BPSK modulation.
comunication
Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with phase
Problem 2: If the message signal is 00101101 And the carrier is sinusoid, draw the modulated signal s(0 using the below modulation schemes What is the ASK A. B. What is the FSK C. what is the PSK with...
please show all steps and explaination
Suppose a digital data signal b(t) is transmitted using Binary Phase Shift Keying (BPSK) modulation. a. If the digital data signal b(t) is NRZ binary waveform with bit rate of 1 Mbps and the 2. modulation carrier frequency is 10 MHz, provide an approximate magnitude plot of the frequency spectrum. What is the required bandwidth of this BPSK modulated signal? What happens if you half the bit rate? Provide an approximate magnitude plot of...
below is used to modulate a carrier to generate the AM signal yt) (Am()) cos(1000t) The periodic signal m() shown a) The power efficiency of the system is measured to be 1 () The type of AM modulation, i.e. SSB, DSBSC, (i) The constant A. (ili) The modulation index 1/13. Determine DSB with carrier enit -3 b) An angle modulated signal is given by d(t-2 cos (2n1061+ sin 2 1000). Find i) The carrier frequency. ii) The baseband signal bandwidth....
Please show all work with the answer. Thank you!
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a 300-Hz sinusoid before modulation is applied, the output modulated is T1-e-2t Determine (a) instantaneous signal phase and (b) instantaneous signal frequency (radian and cyclic). (c) Sketch the forms of the instantaneous signal phase and frequency.
P1 - A function generator can be angle modulated with various waveforms. With a carrier signal being a...
Question 4: (20 points) An FM signal is modulated with message m(t)Am cos(2Tmt). The measured amplitude spectrum, SPM(f), is shown below: Amplitude spectrum of the frequency modulated signal 2 -2 5000 4000 3000 2000 -1000 1000 2000 3000 4000 5000 frequency f [Hz] a) What is the carrier frequency fe? b) What is the message frequency fm c) What is the FM modulation index Bf? Is it a narrowband or a wideband signal? d) Using Carson's rule, estimate the transmission...
Question 4 (a) A 3,000 bit/second data terminal is connected to a modem with 25% raised-cosine roll-off pulse shaping is used. Calculate the transmission bandwidth Bt required at the modem output for each of the following schemes: (0) Binary amplitude-shift keying (ASK) transmission. [2 marks] (ii) Binary frequency-shift keying (FSK) transmission with a frequency deviation of +2,400 Hz around the carrier. [2 marks] (iii) 16-level quadrature amplitude modulation (QAM). [2 marks] (b) FSK transmission is used to transmit 750 bps...
2. [20 points] The carrier c(t-Acce(2106 t) is frequency modulated by the sinusoid signal m(t) 2cos (2000mt). The deviation constant is kr 3000 Hz/V Determine the bandwidth of the modulated signal using Carson's rule a. Sketch the magnitude of the spectrum of the modulated signal (plot only those frequency components that lie within the bandwidth derived in part a) with detailed information such as the areas of delta function determined by the Bessel function, frequency separation between each spectrum (note...
