implement this function using an ALL-NAND circuit please explain R=B'C'+A'B'+A'C'

Question

Question

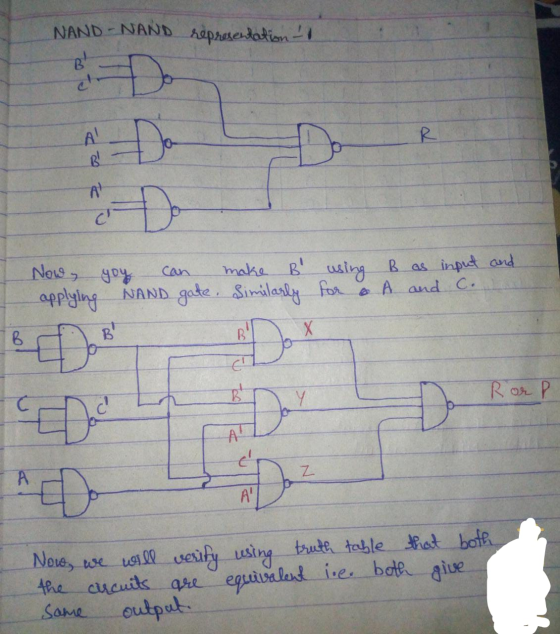

implement this function using an ALL-NAND circuit

please explain

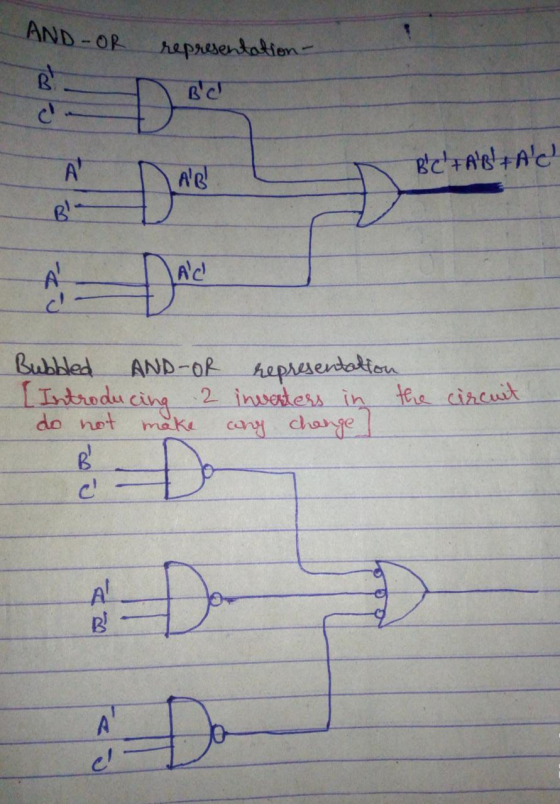

R=B'C'+A'B'+A'C'

engineering Computer-Science

Answer 1

Answer #1

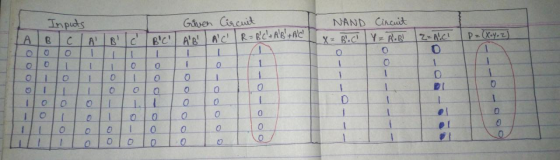

I HOPE YOU WILL GET IT.................YOUR RESPONSE WILL BE HIGHLY APPRECIATED
