To practice Problem-Solving Strategy 23.1 for point chargeproblems. Three positively charged particles, with charges q1=qq1=q, q2=2qq2=2q,...

To practice Problem-Solving Strategy 23.1 for point chargeproblems.

Three positively charged particles, with charges q1=qq1=q, q2=2qq2=2q, and q3=qq3=q (where q>0q>0), are located at the corners of a square with sides of length dd q2q2 is located diagonally from the remaining (empty) corner.

Find the magnitude of the resultant electric field E⃗netE→net in the empty corner of the square.

1. Determine the magnitude Enet of the net electric field at point P. Use KK for the electrostatic constant.

Express your answer in terms of q,d and K

science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

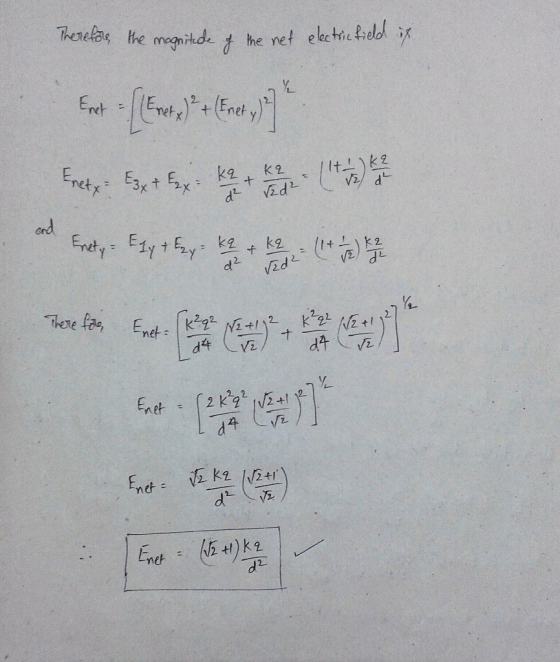

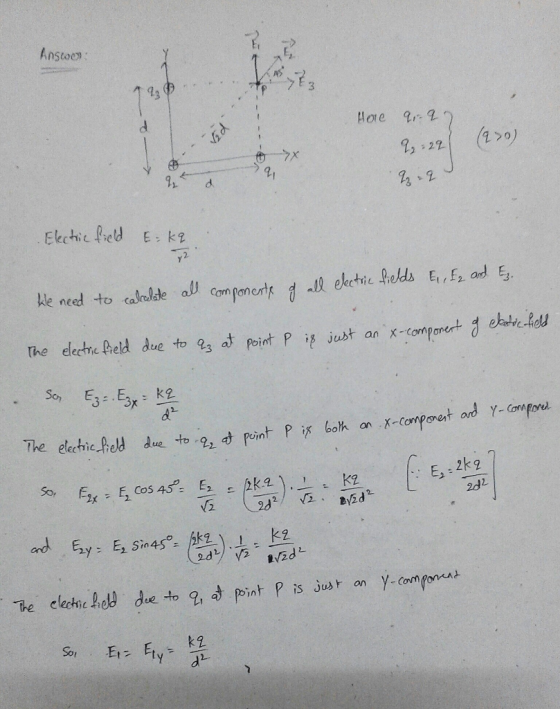

Answer #1

0 0
Add a comment
