1. A parallel-plate capacitor has a plate separation of 13.00 mm. If the material between the...

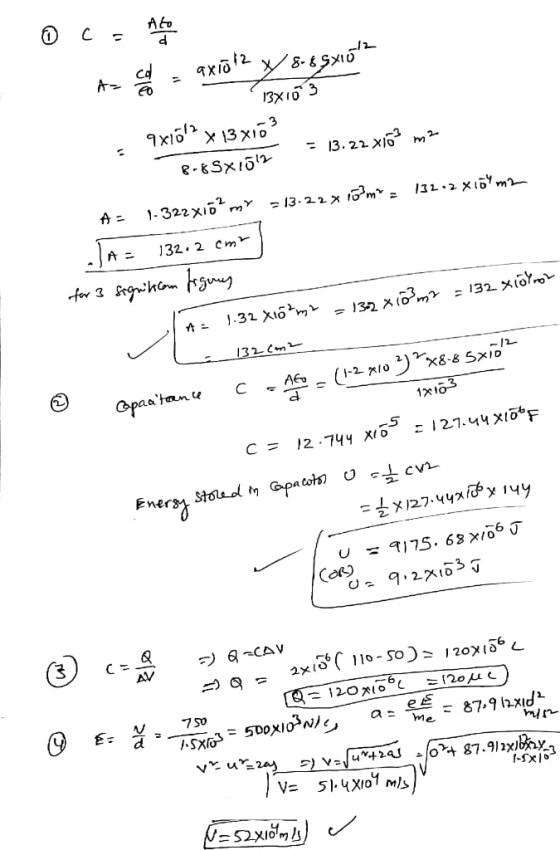

1. A parallel-plate capacitor has a plate separation of 13.00 mm. If the material between the plates is air, what plate area is required to provide a capacitance of 9.00 pF? (Express your answer to three significant figures.)
2. A parallel-plate capacitor has square plates that have edge length equal to 1.20××1022cm and are separated by 1.00 mm. It is connected to a battery and is charged to 12.0 V. How much energy is stored in the capacitor? (Express your answer to three significant figures.)
3. You charge a 2.00-μμF capacitor to 50.0 V. How much additional energy must you add to charge it to 110 V? (Express your answer to three significant figures.)
4. A parallel-plate capacitor has a plate separation of 1.5 mm and is charged to 750 V. If an electron leaves the negative plate, starting from rest, how fast is it going when it hits the positive plate? (Express your answer to two significant figures.)
Homework Answers
Add Answer to:
1. A parallel-plate capacitor has a plate separation of 13.00
mm. If the material between the...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation...
A parallel plate capacitor is constructed with plate area of 0.40 m2 and a plate separation of 0.10 mm. How much charge is stored on it when it is charged to a potential difference of 12 V? A parallel-plate capacitor is filled with air, and the plates are separated by 0.050 mm. If the capacitance is 17.3 pF, what is the plate area? A parallel plate capacitor is constructed with plate area of 0.0010 m2 and a plate separation of...
A parallel-plate capacitor with plate area 4.0cm^2 and air gap separation 0.50mm is connected to a...
A parallel-plate capacitor with plate area 4.0cm^2 and air gap separation 0.50mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. Part A- What is the charge on the capacitor? Express your answer to two significant figures and include the appropriate units. Answer: 8.5 x 10^11 C. Part B- The plates are now pulled to a separation of 0.75 mm. What is the charge on the capacitor now? Express your answer to two significant figures...
A parallel-plate capacitor with plate area 4.60 cm2 and air-gap separation 0.78 mm is connected to...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
A parallel-plate capacitor has a plate separation of 1.40 mm. If the material between the plates...
A parallel-plate capacitor has a plate separation of 1.40 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.10 pF? ITn
A parallel-plate capacitor has a plate separation of 2.90 mm. If the material between the plates...
A parallel-plate capacitor has a plate separation of 2.90 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.20 pF? m2
A parallel-plate capacitor has a plate separation of 2.30 mm. If the material between the plates...
A parallel-plate capacitor has a plate separation of 2.30 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.50 pF? A : m2
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between...
A parallel plate capacitor has square plates with sides of length 11 cm. The distance between the plates is 2 mm. The plates are charged up to 20volts. Part A What is the electric field between the plates? Express your answer using three significant figures. Electric field = N/C Part B What is the amount of charge on each plate? charge = C Part C What is the capacitance? Capacitance = μF Part D What is the energy stored by...
A parallel-plate capacitor with plate area 2.5 cm2 and air-gap separation 0.50 mm is connected to...
A parallel-plate capacitor with plate area 2.5 cm2 and air-gap separation 0.50 mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. The plates are now pulled to a separation of 0.75 mm. What is the potential difference between the plates now? Express your answer to two significant figures and include the appropriate units. It is asking for Vfinal. I got that the potential difference is 18 V but do not know how to get...
Problem 24 1 A parallel-plate capacitor has square plates that have edge length equal to 3.80x102...
Problem 24 1 A parallel-plate capacitor has square plates that have edge length equal to 3.80x102 cm and are separated by 1.00 mm. It is connected to a battery and is charged to 12.0 V. 1) How much energy is stored in the capacitor? (Express your answer to three significant figures.) Submit You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question.
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is...
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. (a) What is the charge on the capacitor? (b) The plates are now pulled to a separation of 0.75 mm. What is the charge on the capacitor now? (c) What is the potential difference between the plates now? (d) How much work was required to pull the plates to their new...
A parallel-plate capacitor
with plate area 4.60 cm2 and air-gap separation 0.78 mm is
connected to a 12.00 V battery, and fully charged. The battery is
then disconnected. (a) What is the charge on the capacitor? (b) The
plates are now pulled to a separation of 0.98 mm. What is the
charge on the capacitor now? (c) What is the potential difference
across the plates now? (d) How much work was required to pull the
plates to their new separation?...
A parallel-plate capacitor has a plate separation of 1.40 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.10 pF? ITn
A parallel-plate capacitor has a plate separation of 2.90 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.20 pF? m2
A parallel-plate capacitor has a plate separation of 2.30 mm. If the material between the plates is air, what plate area A is required to provide a capacitance of 1.50 pF? A : m2
Problem 24 1 A parallel-plate capacitor has square plates that have edge length equal to 3.80x102 cm and are separated by 1.00 mm. It is connected to a battery and is charged to 12.0 V. 1) How much energy is stored in the capacitor? (Express your answer to three significant figures.) Submit You currently have 0 submissions for this question. Only 10 submission are allowed. You can make 10 more submissions for this question.
85. A parallel-plate capacitor with plate area 3.0 cm2 and air- gap separation 0.50 mm is connected to a 12-V battery, and fully charged. The battery is then disconnected. (a) What is the charge on the capacitor? (b) The plates are now pulled to a separation of 0.75 mm. What is the charge on the capacitor now? (c) What is the potential difference between the plates now? (d) How much work was required to pull the plates to their new...
