Question

previous assignment code

/*C++ test program to test the classes, Animal, Mammal and Cat and print the results on console window.*/
//Main.cpp
//include header files
#include<iostream>
//include Animal, Mammal and Cat header files
#include "Animal.h"
#include "Mammal.h"
#include "Cat.h"
using namespace std;
int main()
{

   //create Animal object
   Animal animal("Dog","Mammal",4);
   cout<<"Animal object details"<<endl;
   cout<<"Name: "<<animal.getName()<<endl;
   cout<<"Type: "<<animal.getType()<<endl;
   cout<<"# of Legs: "<<animal.getLegs()<<endl;

   cout<<endl<<endl;
   //create Cat object
   Cat cat("byssinian cat","carnivorous mammal",4,"short hair",true);
   cout<<"Cat object details"<<endl;
   cout<<"name: "<<cat.getName()<<endl;
   cout<<"type: "<<cat.getType()<<endl;
   cout<<"hair_type "<<cat.getHairType()<<endl;
   cout<<"domesticated: "<<cat.getDomestic()<<endl;
   cat.eat();

   system("pause");
   return 0;
}

--------------------------------------------------------------------------------------------------------------

//Animal.h
#ifndef ANIMAL_H
#define ANIMAL_H
#include<iostream>
#include<string>
using namespace std;
class Animal
{
private:
   string name;
   string type;
   int m_legs;
public:
   Animal(string,string,int);
   void setName(string);
   string getName();
   void setType(string);
   string getType();
   void setLegs(int);
   int getLegs();
   virtual void eat();
};
#endif ANIMAL_H

--------------------------------------------------------------------------------------------------------------

//Animal.cpp
#include<iostream>
#include "Animal.h"
using namespace std;
Animal::Animal(string name ,string type ,int m_legs)
{
   this->name=name;
   this->type=type;
   this->m_legs=m_legs;
}

void Animal::setName(string name)
{
   this->name=name;
}
string Animal::getName()
{
   return name;
}

void Animal::setType(string)
{
   this->type=type;
}
string Animal::getType()
{
   return type;
}

void Animal::setLegs(int m_legs)
{
   this->m_legs=m_legs;
}
int Animal::getLegs()
{
   return m_legs;
}

void Animal::eat()
{
   cout<<"Eat food."<<endl;
}

--------------------------------------------------------------------------------------------------------------

//Mammal.h
#ifndef MAMMAL_H
#define MAMMAL_H
#include<iostream>
#include<string>
#include "Animal.h"
using namespace std;
class Mammal : public Animal
{
private:
   string name;
   string type;
   int m_legs;
   string hariType;

public:
   Mammal(string,string,int, string hairType);
   void setHairType(string);
   string getHairType();
   virtual void eat()=0;
};
#endif MAMMAL_H

--------------------------------------------------------------------------------------------------------------

//Mammal.cpp
#include<iostream>
#include "Mammal.h"
#include "Animal.h"
using namespace std;
Mammal::Mammal(string name ,string type ,int m_legs,
   string hairType) :Animal(name,type,m_legs)
{
   this->hariType=hairType;
}
void Mammal::setHairType(string hairType)
{
   this->hariType=hairType;
}
string Mammal::getHairType()
{
   return hariType;
}
void Mammal::eat()
{
   cout<<"Eat wide range of food."<<endl;
}

--------------------------------------------------------------------------------------------------------------

//Cat.h
#ifndef CAT_H
#define CAT_H
#include<iostream>
#include<string>
#include "Mammal.h"
using namespace std;
class Cat : public Mammal
{
private:
   string name;
   string type;
   int m_legs;
   bool domesticated;

public:
   Cat(string,string,int, string, bool );
   void setDemostic(bool);
   bool getDomestic();
   virtual void eat();
};
#endif CAT_H

--------------------------------------------------------------------------------------------------------------

//Cat.cpp
#include<iostream>
#include "Cat.h"
#include "Mammal.h"
using namespace std;
Cat::Cat(string name,string type, int legs, string hairType,
   bool domesticated) :Mammal(name,type,m_legs,hairType)
{
   this->domesticated=domesticated;
}
void Cat::setDemostic(bool hairType)
{
   this->domesticated=domesticated;
}
bool Cat::getDomestic()
{
   return domesticated;
}
void Cat::eat()
{
   cout<<"eat fish."<<endl;
}

1. Class requirements:

Based on your previous assignment code, you will be adding an additional class Owner.

1. Class Owner

private member variables --

       string name;

       string address;

       //we can have more attributes…but let’s keep things simple

public member methods --

      constructors (default, parameterized)

        setters and getters

        //You many create any additional member method(s) to your design need.

2. Class Cat

private member variables --

       //add the following data member to Cat class

Owner master;

public member methods --

      //update or add the following related methods to the class

constructors

       setters and getters

2. User-defined functions requirements:

Cat   orderCat(Owner master); // in this function, you should ask the owner, the input her criteria to choose a pet cat such as name, type, hair_type. The domesticated attribute should be set to true. Then return the Cat object.

3. main() function

Do whatever you feel suitable in testing and illustrating your program, such as create an Owner object and then create a Cat object via orderCat() function.

Answer 1

Required modification has been done in Main.cpp,Cat.h,Cat.cpp,Owner.h,Owner.cpp

Main.cpp

#include<iostream>
#include<cstdlib>
#include "Animal.h"
#include "Mammal.h"
#include "Cat.h"
#include "Owner.h"
using namespace std;
int main()
{

//create Animal object
Animal animal("Dog","Mammal",4);
cout<<"Animal object details"<<endl;
cout<<"Name: "<<animal.getName()<<endl;
cout<<"Type: "<<animal.getType()<<endl;
cout<<"# of Legs: "<<animal.getLegs()<<endl;

cout<<endl<<endl;
//create Cat object
Owner me("Self","NoWhere");
Cat cat("byssinian cat","carnivorous mammal",4,"short hair",true,me);
cout<<"Cat object details"<<endl;
cout<<"name: "<<cat.getName()<<endl;
cout<<"type: "<<cat.getType()<<endl;
cout<<"hair_type "<<cat.getHairType()<<endl;
cout<<"domesticated: "<<cat.getDomestic()<<endl;
cout<<"Owner: ";
Owner owner= cat.getOwner();
cout<<"Name:"<<owner.getName()<<" Address:"<<owner.getAddress()<<endl;
cat.eat();
system("pause");
return 0;
}

Owner.h

#ifndef OWNER_H
#define OWNER_H
#include<iostream>
#include<string>
#include "Mammal.h"
using namespace std;

class Owner{
private:

string name;
string address;
public:
Owner(string ,string );
void setName(string);
string getName();
void setAddress(string);
string getAddress();
};
#endif OWNER_H

Onwer.cpp

#include<iostream>
#include "Owner.h"
using namespace std;
Owner::Owner(string name, string address)
{
this->name=name;
this->address=address;
}

void Owner::setName(string name)
{
this->name=name;
}

string Owner::getName()
{
return name;
}

void Owner::setAddress(string)
{
this->address=address;
}

string Owner::getAddress()
{
return address;
}

------------------------------------------------------------------------------------------------------------------------------

Cat.h

#ifndef CAT_H
#define CAT_H
#include<iostream>
#include<string>
#include "Mammal.h"
#include "Owner.h"
using namespace std;
class Cat : public Mammal
{
private:
string name;
string type;
int m_legs;
bool domesticated;
Owner& owner;
public:
Cat(string,string,int, string, bool ,Owner& );
void setDemostic(bool);
bool getDomestic();
virtual void eat();
Owner getOwner();
void setOwner(Owner);
};
#endif CAT_H

---------------------------------------------------------------------------------------

cat.cpp

//Cat.cpp
#include<iostream>
#include "Cat.h"
#include "Mammal.h"
using namespace std;
Cat::Cat(string name,string type, int legs, string hairType,
bool domesticated,Owner& o) :Mammal(name,type,m_legs,hairType),owner(o)
{
this->domesticated=domesticated;
}
void Cat::setDemostic(bool hairType)
{
this->domesticated=domesticated;
}
bool Cat::getDomestic()
{
return domesticated;
}
void Cat::setOwner(Owner owner)
{
this->owner=owner;
}
Owner Cat::getOwner()
{
return owner;
}
void Cat::eat()
{
cout<<"eat fish."<<endl;
}

------------------------------------------------------------------------------------------------

Below files has not been modified

Animal.h

//Animal.h
#ifndef ANIMAL_H
#define ANIMAL_H
#include<iostream>
#include<string>
using namespace std;
class Animal
{
private:
string name;
string type;
int m_legs;
public:
Animal(string,string,int);
void setName(string);
string getName();
void setType(string);
string getType();
void setLegs(int);
int getLegs();
virtual void eat();
};
#endif ANIMAL_H

------------------------------------------------------------------------------------

Mammal.h

//Mammal.h
#ifndef MAMMAL_H
#define MAMMAL_H
#include<iostream>
#include<string>
#include "Animal.h"
using namespace std;
class Mammal : public Animal
{
private:
string name;
string type;
int m_legs;
string hariType;

public:
Mammal(string,string,int, string hairType);
void setHairType(string);
string getHairType();
virtual void eat()=0;
};
#endif MAMMAL_H

--------------------------------------------------------------------------------------

Animal.cpp

//Animal.cpp
#include<iostream>
#include "Animal.h"
using namespace std;
Animal::Animal(string name ,string type ,int m_legs)
{
this->name=name;
this->type=type;
this->m_legs=m_legs;
}

void Animal::setName(string name)
{
this->name=name;
}
string Animal::getName()
{
return name;
}

void Animal::setType(string)
{
this->type=type;
}
string Animal::getType()
{
return type;
}

void Animal::setLegs(int m_legs)
{
this->m_legs=m_legs;
}
int Animal::getLegs()
{
return m_legs;
}

void Animal::eat()
{
cout<<"Eat food."<<endl;
}

-------------------------------------------------------------------------------------------

Mammal.cpp

//Mammal.cpp
#include<iostream>
#include "Mammal.h"
#include "Animal.h"
using namespace std;
Mammal::Mammal(string name ,string type ,int m_legs,
string hairType) :Animal(name,type,m_legs)
{
this->hariType=hairType;
}
void Mammal::setHairType(string hairType)
{
this->hariType=hairType;
}
string Mammal::getHairType()
{
return hariType;
}
void Mammal::eat()
{
cout<<"Eat wide range of food."<<endl;
}
-----------------------------------------------------------------------------------

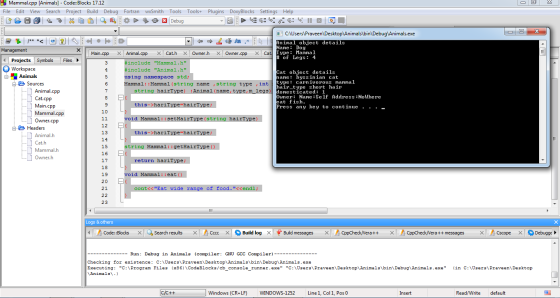

Also find below screenshot of working code
