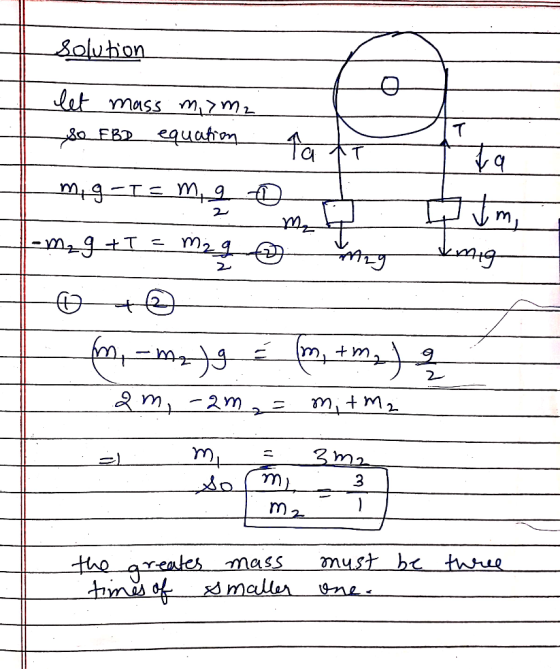

what combination of masses would make the acceleration of an atwood machine equal to 1/2 g?

Question

Question

science physics

Answer 1

Answer #1

Answer 2
