Three forces act on an object, as indicated in the drawing. Force F1 has a magnitude...

Three forces act on an object, as indicated in the drawing. Force F1 has a magnitude of 25 N and is directed 30.0° to the left of the +y axis. Force F2 has a magnitude of 11 N and points along the +x axis. What must be the magnitude of the third force F3 such that the vector sum of the three forces is 0 N.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

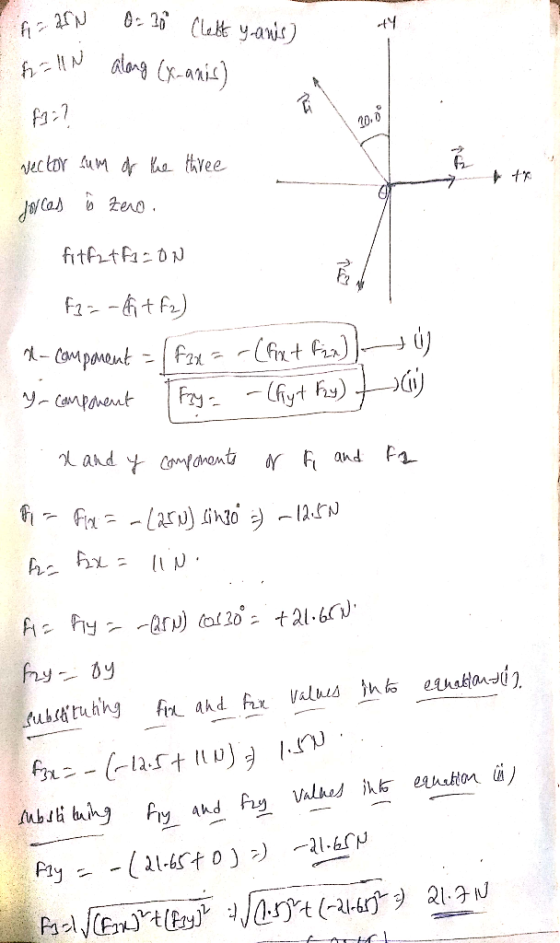

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Three forces act on an object, as indicated in the drawing. Force F1 has a magnitude...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Three forces are applied to an object, as indicated in the drawing.

    Three forces are applied to an object, as indicated in the drawing. Force F with arrow1 has a magnitude of 29.0 newtons (29.0 N) and is directed 30.0° to the left of the +y axis. Force F with arrow2 has a magnitude of 21.5 N and points along the +x axis. What must be the magnitude and direction (specified by the angle θ in the drawing) of the third force F3  such that the vector sum of the three forces...

  • Three forces are applied to an object, as indicated in the drawing. Force 1 has a...

    Three forces are applied to an object, as indicated in the drawing. Force 1 has a magnitude of 22.0 newtons (22.0 N) and is directed 30.0° to the left of the +y axis. Force 2 has a magnitude of 19.0 N and points along the +x axis. What must be the magnitude and direction (specified by the angle θ in the drawing) of the third force 3 such that the vector sum of the three forces is 0 N? magnitude...

  • Three forces are applied to an object, as indicated in the drawing. Force F with arrow1...

    Three forces are applied to an object, as indicated in the drawing. Force F with arrow1 has a magnitude of 21.0 newtons (21.0 N) and is directed 30.0° to the left of the +y axis. Force F with arrow2 has a magnitude of 14.4 N and points along the +x axis. What must be the magnitude and direction (specified by the angle θ in the drawing) of the third force F with arrow3 such that the vector sum of the...

  • Three forces are applied to an object, as Indicated in the drawing. Force F, has a...

    Three forces are applied to an object, as Indicated in the drawing. Force F, has a magnitude of 26.0 newtons (26.0 N) and is directed 30.0* to the left of the ty axis. Force along the +x axis. What must be the magnitude and direction (speaifled by the angle 8 in the drawing) of thethforce F uch that the vector sum of the three forces is 0 N? MacBook Ai

  • A 10 kg object is subjected to two forces F1 and F2. F1 has a magnitude...

    A 10 kg object is subjected to two forces F1 and F2. F1 has a magnitude of 20 N and acts straight upward and F2 has a magnitude of 30 N at 30 degrees below the horizontal from the positive x axis. Find the acceleration of the object. A third force F3 is applied so that the object is in static equilibrium. Find F3.

  • Three forces act on an object, with force F2 acting in the positive x direction. (a)...

    Three forces act on an object, with force F2 acting in the positive x direction. (a) Find the magnitude of the net force acting on the object? (b) Find the direction of the net force. The angle is measured from the positive x axis. (c) Find the fourth force that a person would have to exert on the object to make the net force equal to zero. F1=11.0N at an angle of 40 degrees above the horizontal F2=12.0N F3=10.0N along...

  • Two forces, F1 and F2, act at a point

    Two forces, F1 and F2, act at a point. F1 has a magnitude of 8.20 N and is directed at an angle of 61.0° above, the negative x axis in the second quadrant. F2 has a magnitude of 5.60 N and is directed at an angle of 53.4° below the negative x axis in the third quadrant.Part A What is the x component of the resultant force? Part B   What is the y component of the resultant force? Part C   What is the...

  • Three forces act on a moving object. One force has a magnitude of 78.6 N and...

    Three forces act on a moving object. One force has a magnitude of 78.6 N and is directed due north. Another has a magnitude of 55.3 N and is directed due west. What must be (a) the magnitude and (b) the direction of the third force, such that the object continues to move with a constant velocity? Express your answer as a positive angle south of east.

  • Forces F1 and F2 with magnitudes indicated in the drawing act at point O. Determine the...

    Forces F1 and F2 with magnitudes indicated in the drawing act at point O. Determine the magnitudes in kilonewtons and directions in degrees counterclockwise from the +x-axis of the following resultant forces. (a) R1 = F1 + F2 magnitude kN direction ° counterclockwise from the +x-axis (b) R2 = F1 − F2 magnitude kN direction ° counterclockwise from the +x-axis (c) R3 = F2 − F1 magnitude kN direction ° counterclockwise from the +x-axis

  • Three forces act on a moving object. One force has a magnitude of 87.0 N and...

    Three forces act on a moving object. One force has a magnitude of 87.0 N and is directed due north. Another has a magnitude of 44.6 N and is directed due west. What must be (a) the magnitude and (b) the direction of the third force, such that the object continues to move with a constant velocity? Express your answer as a positive angle south of east. (a) Number Units (b) Number Units
