GIVEN THAT: bulbs are rated 0.30 amps, 2.5 volts, 8.33 ohms. Calculate the POWER loss for...

GIVEN THAT: bulbs are rated 0.30 amps, 2.5 volts, 8.33 ohms.

Calculate the POWER loss for EACH bulb in:
- a single bulb series circuit
- a 2-bulb series circuit
- a 3-bulb series circuit

-a 2-bulb parallel circuit
-a 3-bulb parallel circuit
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

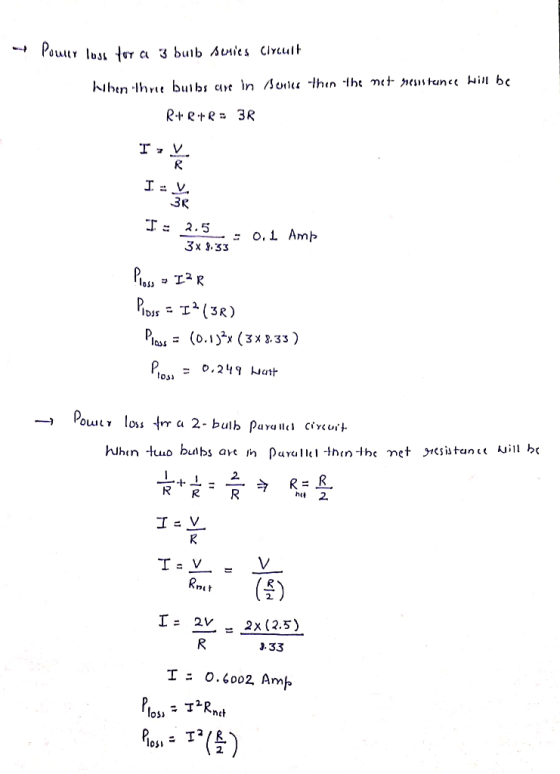

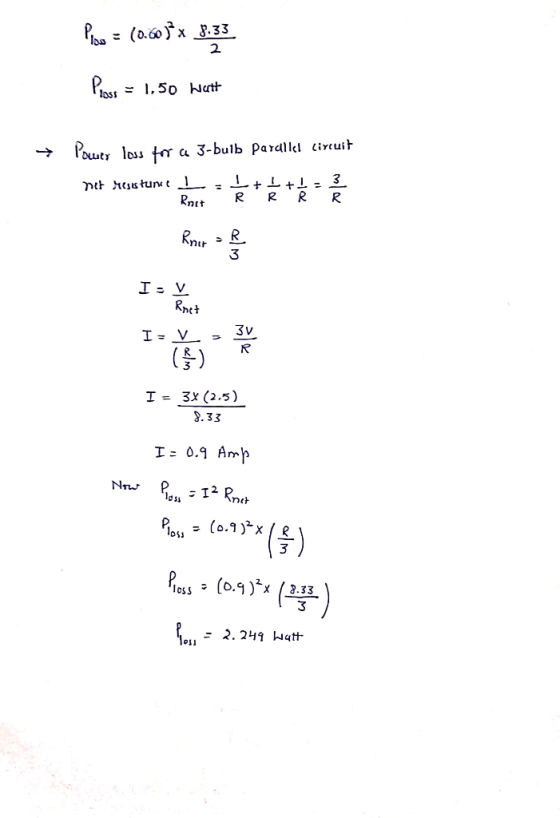

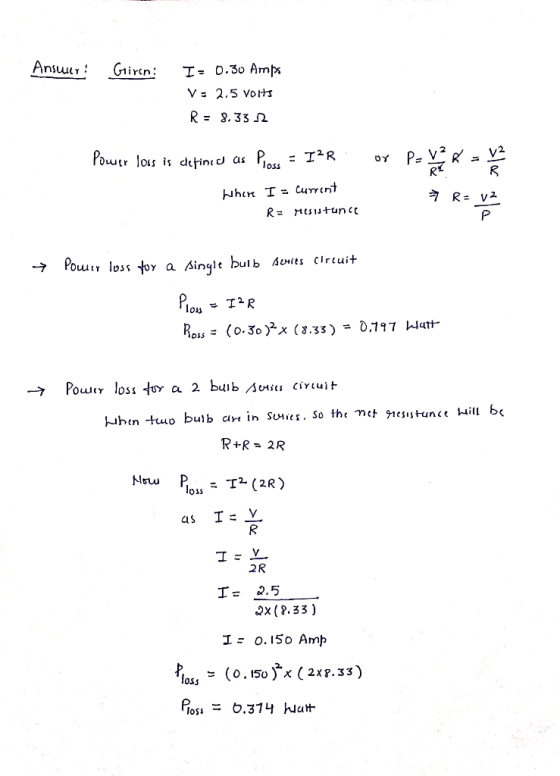

Answer #1

0 0
Add a comment
