1. Consider a system where 3 page frames are allocated to a process. Consider the following...

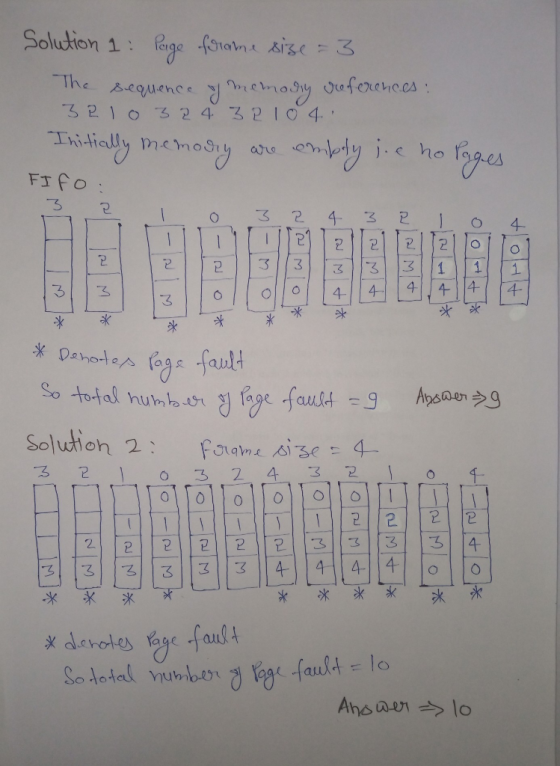

1. Consider a system where 3 page frames are allocated to a process. Consider the following sequence of memory references: 3 2 1 0 3 2 4 3 2 1 0 4. Assuming no pages are initially in memory, how many page faults are there assuming a FIFO page replacement algorithm is used?
2. Repeat problem 1 with number of frames increased to 4.

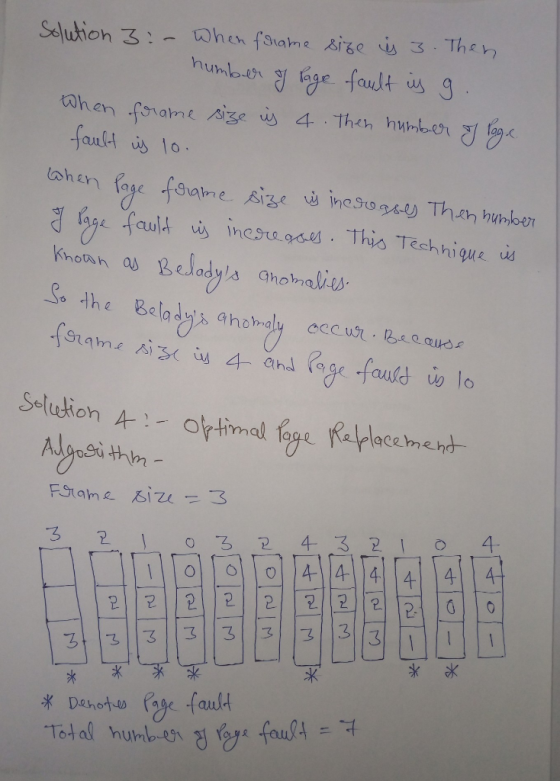

3. Compare the number of page faults from 1 and 2. Is there Belady’s anomaly?

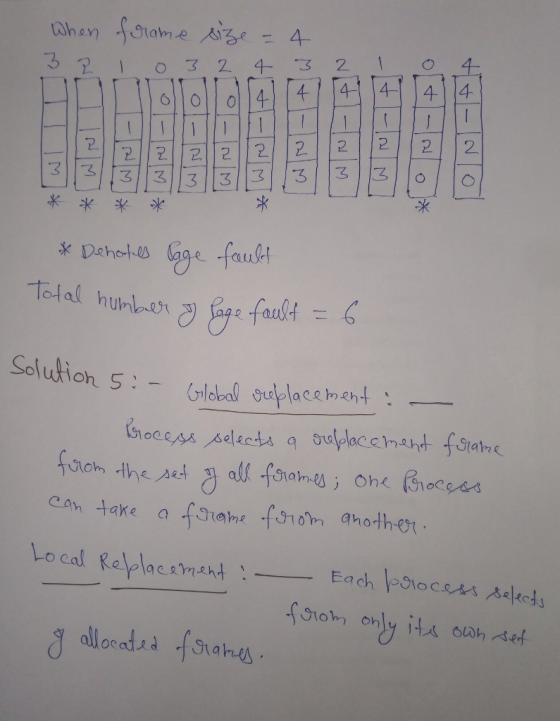

4. Repeat problems 1 and 2 using optimal page replacement algorithm.
5. What is the difference between local and global page replacement?
Homework Answers
Add Answer to:
1. Consider a system where 3 page frames are allocated to a
process. Consider the following...
Consider the following sequence of page references 8, 5, 1, 8, 2, 5, 1, 4, 2, 3, 5, 3, 2, 8, 4. Assume that the memory h...
Consider the following sequence of page references 8, 5, 1, 8, 2, 5, 1, 4, 2, 3, 5, 3, 2, 8, 4. Assume that the memory has 3 frames which initially are free. What is the number of page faults using each of the following algorithms? a. FIFO b. LRU c. Clock d. Optimal
Consider the following sequence of page references 8, 5, 1, 8, 2, 5, 1, 4, 2,...
Consider the following sequence of page references 8, 5, 1, 8, 2, 5, 1, 4, 2, 3, 5, 3, 2, 8, 4. Assume that the memory has 3 frames which initially are free. What is the number of page faults using each of the following algorithms? a. FIFO b. LRU c. Clock d. Optimal
Question 7 30 pts Consider the following page reference string: {1,2,3,4,1,5,6,2,1,2,3,7,6,3} Assume that the system has...
Question 7 30 pts Consider the following page reference string: {1,2,3,4,1,5,6,2,1,2,3,7,6,3} Assume that the system has 4 page frames allocated to these 7 pages. Follow the page placement and replacement using the following three replacement algorithms: • LRU replacement • FIFO replacement • Optimal replacement How many page faults will occur for these three algorithms? Assume that all frames are initially empty, so your first unique pages will all cost one fault each USE ENCLOSED TABLES! Show all calculations in...
Consider the following virtual page reference sequence: page 1, 2, 3, 4, 2, 1, 5, 6,...
Consider the following virtual page reference sequence: page 1, 2, 3, 4, 2, 1, 5, 6, 2, 1, 2, 3. This indicates that these particular pages need to be accessed by the computer in the order shown. Consider each of the following 4 algorithm-frame combinations: LRU with 3 frames FIFO with 3 frames LRU with 4 frames FIFO with 4 frames . For each of the 4 combinations, below, move from left to right as the virtual page numbers are...
Consider the following page reference using four physical frames that are initially empty. (a) (5 points)...
Consider the following page reference using four physical frames that are initially empty. (a) (5 points) Find the page faults using LRU algorithm, where the page reference sequence: 5,2,5,1,4,5,2,0,4,2,3,1,2,1,0,0,2,4,5,1? (b) (5 points) Find the page faults using FIFO algorithm, where the page reference sequence: 5,2,1,5,1,0,3,1,2,1,4,0,5,4, 2,3,3, 4,2,1? (c) (5 points) Find the page faults using LRU algorithm, where the page reference sequence: 5, 0, 4, 4, 0, 3, 0, 4, 1, 0, 2, 0, 5, 3, 0, 1?
Assuming that there are three frames available in main memory, for the following string of page...
Assuming that there are three frames available in main memory, for the following string of page references, determine how many page faults would be generated using the Optimal Page Replacement Algorithm. 1,2,4,3,1,3,5,1,2,4,5,3
Consider the following page reference string: 1, 2, 3, 4, 2, 1, 5, 6, 2, 1,...
Consider the following page reference string: 1, 2, 3, 4, 2, 1, 5, 6, 2, 1, 2, 3, 7, 6, 3, 2, 1, 2, 3, 6. How many page faults would occur for the following replacement algorithms, assuming one, two, three, four, five, six, or seven frames? Remember all frames are initially empty, so your first unique pages will all cost one fault each. • LRU replacement • FIFO replacement • Optimal replacement
<Operating System> 1. A process accesses pages in the following order (Assume all frames are initially...
<Operating System> 1. A process accesses pages in the following order (Assume all frames are initially empty): 1 2 3 4 2 1 5 6 2 1 2 3 7 6 3 2 1 2 3 6 Determine the number of page faults that will occur for the following algorithms: (Show your work!) Least Recently Used replacement algorithm with 5 frames available to the process. What is the minimum number of page faults that can occur for this process, regardless...
III. Consider a process that has been allocated 5 pages of memory: P1, P2, P3, P4, and P5. The process accesses these pages in the following order: P1 P2 P3 P4 P1 P2 P5 P1 P2 P3 P4 P5 (i) Illustrate...
III. Consider a process that has been allocated 5 pages of memory: P1, P2, P3, P4, and P5. The process accesses these pages in the following order: P1 P2 P3 P4 P1 P2 P5 P1 P2 P3 P4 P5 (i) Illustrate Belady’s anomaly by precisely describing the execution of the FIFO page eviction algorithm in two cases: a) where the machine has 3 pages of physical memory, and b) where the machine has 4 pages of physical memory, and by...
Show how many page faults are will occur if a process access the following page sequence...
Show how many page faults are will occur if a process access the
following page sequence (reference string). Assume OS is using a
fixed number of 4 pages allocated for the process and is using
First-In-First-Out (FIFO) algorithm.
Count the faults acquired in the page table initialization.
Show your work by completing the following table:
Show how many page faults are will occur if a process access the following page sequence (reference string). Assume OS is using a fixed number...
Question 7 30 pts Consider the following page reference string: {1,2,3,4,1,5,6,2,1,2,3,7,6,3} Assume that the system has 4 page frames allocated to these 7 pages. Follow the page placement and replacement using the following three replacement algorithms: • LRU replacement • FIFO replacement • Optimal replacement How many page faults will occur for these three algorithms? Assume that all frames are initially empty, so your first unique pages will all cost one fault each USE ENCLOSED TABLES! Show all calculations in...
Show how many page faults are will occur if a process access the
following page sequence (reference string). Assume OS is using a
fixed number of 4 pages allocated for the process and is using
First-In-First-Out (FIFO) algorithm.
Count the faults acquired in the page table initialization.
Show your work by completing the following table:
Show how many page faults are will occur if a process access the following page sequence (reference string). Assume OS is using a fixed number...
