A given wire has a resistance of 3.90 Ω per 1000 ft. A 79-ft extension cord...

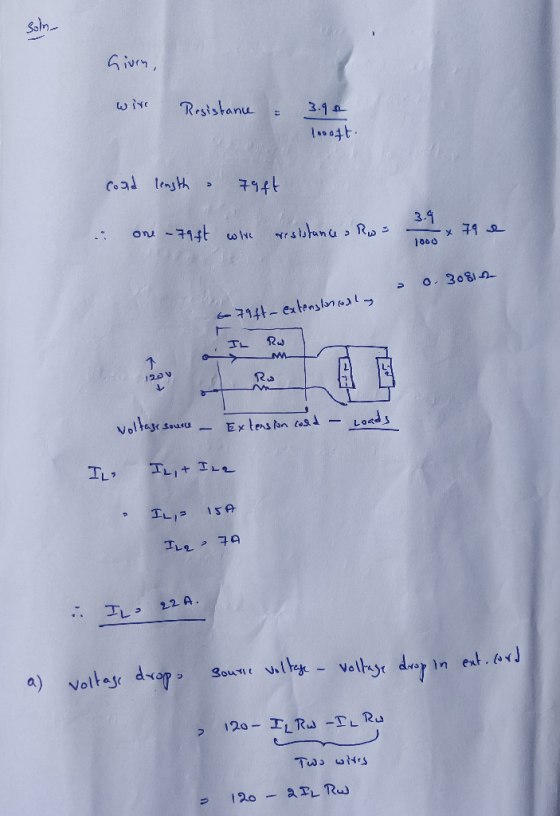

A given wire has a resistance of 3.90 Ω per 1000 ft. A 79-ft extension cord made of this wire is used simultaneously with an entertainment system that draws 7 A and a toaster that draws 15 A. (An extension cord has two wires in it.)

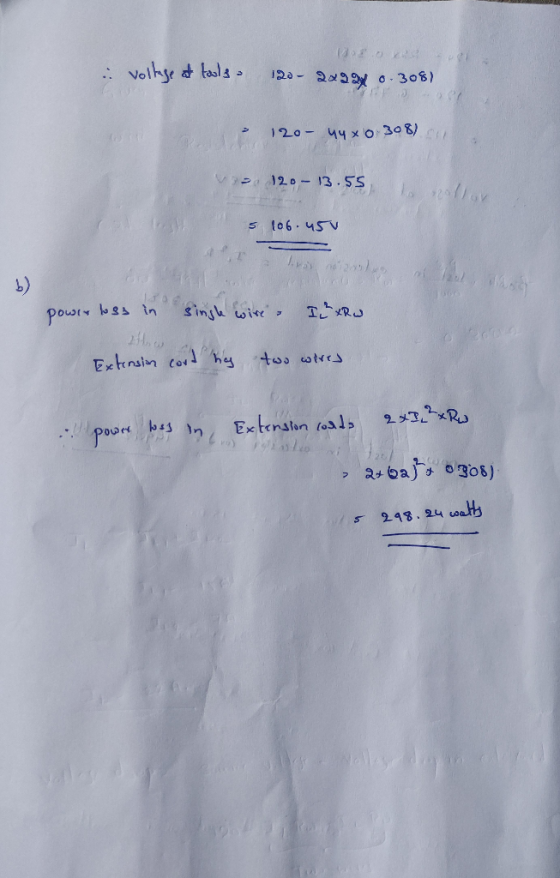

a) If the voltage at the wall socket is a constant 120 V, how much voltage is available at the tools?
b) How much power is lost in the extension cord?
Homework Answers
Add Answer to:
A given wire has a resistance of 3.90 Ω per 1000 ft. A 79-ft
extension cord...
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire with...
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire with r = 1.68x10-8) and of length 2.7 m (9 ft) is connected to an electric heater which draws 15.0 A on a 120-V line. How much power is dissipated in the cord? Please no hand written answers
Your toaster has a power cord with a resistance of 1.9×10−2 Ω connected in series with...
Your toaster has a power cord with a resistance of 1.9×10−2 Ω connected in series with a 9.7 Ω nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? (W) How much power is dissipated in the heating element? (kW)
Your toaster has a power cord with a resistance of 1.8×10−2 Ω connected in series with...
Your toaster has a power cord with a resistance of 1.8×10−2 Ω connected in series with a 9.9 Ω nichrome heating element. The potential difference between the terminals of the toaster is 120 V. Part A How much power is dissipated in the power cord? Express your answer using two significant figures. Pcord= W Part B How much power is dissipated in the heating element? Express your answer using two significant figures. Phe= kW
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and...
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and of length 2.7 m is connected to an electric heater which draws 11.0 A on a 120-V line. The resistivity of copper is 1.68×10−8Ω⋅m. How much power is dissipated in the cord? Express your answer to two significant figures and include the appropriate units.
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and...
An extension cord made of two wires of diameter 0.129 cm (no. 16 copper wire) and of length 2.3 m is connected to an electric heater which draws 16.5 A on a 120-V line. The resistivity of copper is 1.68×10−8Ω⋅m. Part A How much power is dissipated in the cord? Express your answer to two significant figures and include the appropriate units. P P = nothingnothing SubmitRequest Answer
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with...
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with a 9.9 ohm nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? Express your answer using two significant figures. How much power is dissipated in the heating element? Express your answer using two significant figures.
A copper wire of cross-sectional area of 8.2x10^-7 m^2 has a resistance of 1.11 Ω. a)....
A copper wire of cross-sectional area of 8.2x10^-7 m^2 has a resistance of 1.11 Ω. a). How long is the wire? b). If a potential of 12.0 V is applied across the ends of the wire, what current will flow through the wire? c). How much electrical power is supplied to the spool? d). How many electrons (N) pass through this wire in 1.00 minutes?
(a) Which part of an atom is positively charged, and which part is negatively charged? (b)...
(a) Which part of an atom is positively charged, and which part is negatively charged? (b) How does the charge of an electron compare with the charge of another electron? (c) How does the charge of an electron compare with the charge of a proton? Can charge be created or destroyed? How does that answer relate to the conservation of charge? How is electric charge similar to mass? How are they different? What are two ways electric charge can be...
Your toaster has a power cord with a resistance of 2.2times10^-2 ohm connected in series with a 9.9 ohm nichrome heating element. The potential difference between the terminals of the toaster is 120 V. How much power is dissipated in the power cord? Express your answer using two significant figures. How much power is dissipated in the heating element? Express your answer using two significant figures.
