In a cell constructed between a compartment containing a zinc electrode immersed in a 0.10 M...
In a cell constructed between a compartment containing a zinc electrode immersed in a 0.10 M ZnSO4(aq) solution and a compartment containing a copper electrode immersed in a 0.10 M CuSO4(aq) solution,

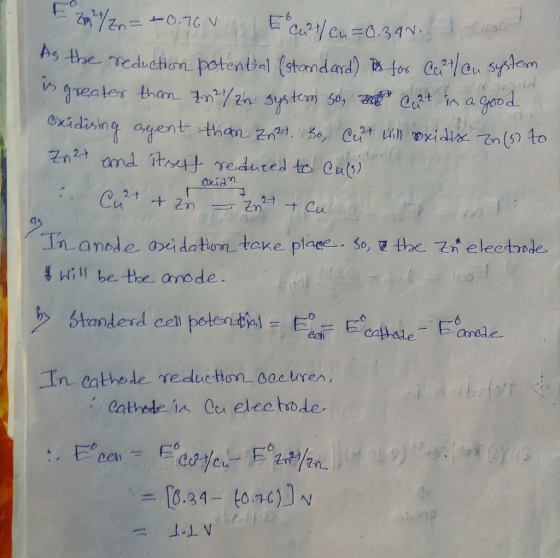

a.) which electrode will be the anode?
b.) what is the standard cell potential?

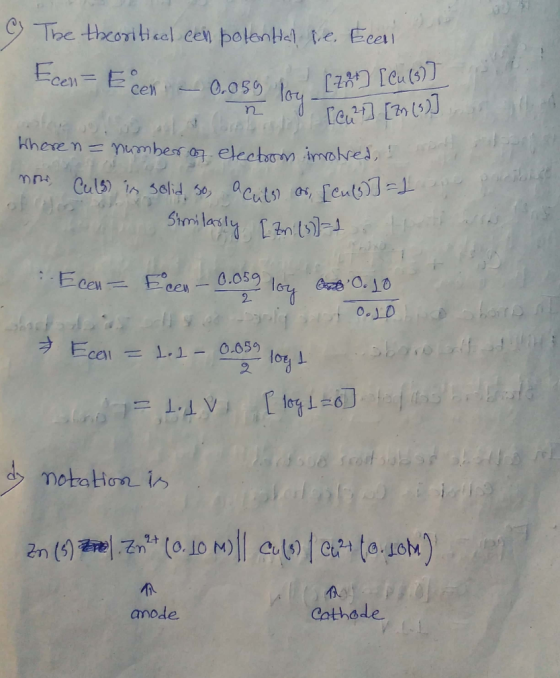

c.) what is the theoretical cell potential with these concentrations?
d.) write the line notation for this cell.
Homework Answers
Add Answer to:
In a cell constructed between a compartment containing a zinc
electrode immersed in a 0.10 M...
A galvanic cell is constructed using a zinc electrode immersed in a 1.0 M Zn2+ solution...
A galvanic cell is constructed using a zinc electrode immersed in a 1.0 M Zn2+ solution and a silver electrode immersed in a 1.0 M Ag+ solution. What is the overall equation for this cell?
salt bridge Zn(s) electrode Culs) electrode 1.0M Zn (a 1.0 M Cu (aq A voltaic cell...
salt bridge Zn(s) electrode Culs) electrode 1.0M Zn (a 1.0 M Cu (aq A voltaic cell similar to that shown in the figure above is constructed. The electronic device shown at the top of the figure is a volt meter. One electrode compartment consists of a zinc strip placed in a 1.0 M ZnCl2 solution, and the other has a copper strip placed in a 1.0 M CuSOA solution. The overall cell reaction is: Zn(s)Cu2+(aq)= zn2+ (aq ) Cu (s)...
Consider an electrochemical cell with a zinc electrode immersed in a solution of ZnT and in electrical contact with a silver electrode immersed in a solution of Ag. If the initial concentrations...
Consider an electrochemical cell with a zinc electrode immersed in a solution of ZnT and in electrical contact with a silver electrode immersed in a solution of Ag. If the initial concentrations of Zinc and Silver ions are 0.0050 M and 16.00 M respectively, calculate +2 cell
Consider an electrochemical cell with a zinc electrode immersed in a solution of ZnT and in electrical contact with a silver electrode immersed in a solution of Ag. If the initial concentrations of...
a.) A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and...
a.) A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the anode is a hydrogen electrode (P(H2) = 1 atm) immersed in a solution of unknown [H+]. If the cell potential is 0.204 V, what is the pH of the unknown solution at 298 K? b.) An electrochemical cell is constructed in which a Cr3+(1.00 M)|Cr(s) half-cell is connected to an H3O+(aq)|H2(1 atm) half-cell with unknown H3O+ concentration. The measured cell voltage is 0.366...
A voltaic cell contains two half-cells. One half-cell contains a zinc electrode immersed in a 1.00...
A voltaic cell contains two half-cells. One half-cell contains a zinc electrode immersed in a 1.00 M Zn(NO3)2 solution. The second half-cell contains a titanium electrode immersed in a 1.00 M Ti(NO3)3 solution. Zn2+(aq) + 2 e− → Zn(s) E⁰red = −0.762 V Ti3+(aq) + 3 e− → Ti(s) E⁰red = −1.370 V (a) Using the standard reduction potentials given above, predict the standard cell potential of the voltaic cell. _____ V (b) Write the overall balanced equation for the...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the anode is a hydrogen electrode ()= 1atm) immersed in a solution of unknown [H+]. If the cell potential is 0.179 V, what is the pH of the unknown solution at 298 K? pH =
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the anode is a hydrogen electrode ()= 1atm) immersed in a solution of unknown [H+]. If the cell potential is 0.190 V, what is the pH of the unknown solution at 298 K? pH =
salt bridge ME Cr(s) electrode Cu(s) electrode 1.0 M Cr3+ (aq) 1.0 M Cu2+ (aq) A...
salt bridge ME Cr(s) electrode Cu(s) electrode 1.0 M Cr3+ (aq) 1.0 M Cu2+ (aq) A electrolytic cell similar to that shown in the figure above is constructed. The electronic device shown at the top of the figure is a power supply. One electrode compartment consists of a chromium strip placed in a 1.0 M CrCl3 solution, and the other has a copper strip placed in a 1.0 M CuSO4 solution. The overall cell reaction is: 2 Cr3+ (aq) +...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the anode is a hydrogen electrode (PH,)= latm) immersed in a solution of unknown [HT]. If the cell potential is 0.208 V, what is the pH of the unknown solution at 298 K? pH = Submit Answer Retry Entire Group 9 more group attempts remaining
We created a Cu/Zn cell by placing 0.10 M ZnSO4 in to a porous cup and...
We created a Cu/Zn cell by placing 0.10 M ZnSO4 in to
a porous cup and poured 0.10 M CuSO4 in to a beaker
surrounding the porous cup. We placed a Zn electrode in to the Zn
solution and a copper electrode in the Cu solution.
a) Calculate the expected potential V (our measured potential V was
around 1.09 so it should be around there I believe)
b) The e- flow from which electrode?
c) The e- flow to which...
salt bridge Zn(s) electrode Culs) electrode 1.0M Zn (a 1.0 M Cu (aq A voltaic cell similar to that shown in the figure above is constructed. The electronic device shown at the top of the figure is a volt meter. One electrode compartment consists of a zinc strip placed in a 1.0 M ZnCl2 solution, and the other has a copper strip placed in a 1.0 M CuSOA solution. The overall cell reaction is: Zn(s)Cu2+(aq)= zn2+ (aq ) Cu (s)...
Consider an electrochemical cell with a zinc electrode immersed in a solution of ZnT and in electrical contact with a silver electrode immersed in a solution of Ag. If the initial concentrations of Zinc and Silver ions are 0.0050 M and 16.00 M respectively, calculate +2 cell
Consider an electrochemical cell with a zinc electrode immersed in a solution of ZnT and in electrical contact with a silver electrode immersed in a solution of Ag. If the initial concentrations of...
salt bridge ME Cr(s) electrode Cu(s) electrode 1.0 M Cr3+ (aq) 1.0 M Cu2+ (aq) A electrolytic cell similar to that shown in the figure above is constructed. The electronic device shown at the top of the figure is a power supply. One electrode compartment consists of a chromium strip placed in a 1.0 M CrCl3 solution, and the other has a copper strip placed in a 1.0 M CuSO4 solution. The overall cell reaction is: 2 Cr3+ (aq) +...
A voltaic cell is constructed in which the cathode is a standard hydrogen electrode and the anode is a hydrogen electrode (PH,)= latm) immersed in a solution of unknown [HT]. If the cell potential is 0.208 V, what is the pH of the unknown solution at 298 K? pH = Submit Answer Retry Entire Group 9 more group attempts remaining
We created a Cu/Zn cell by placing 0.10 M ZnSO4 in to
a porous cup and poured 0.10 M CuSO4 in to a beaker
surrounding the porous cup. We placed a Zn electrode in to the Zn
solution and a copper electrode in the Cu solution.
a) Calculate the expected potential V (our measured potential V was
around 1.09 so it should be around there I believe)
b) The e- flow from which electrode?
c) The e- flow to which...
