397 scm/hr of propane is burned with 14.2% excess air in a furnace. 3.1 Determine the...

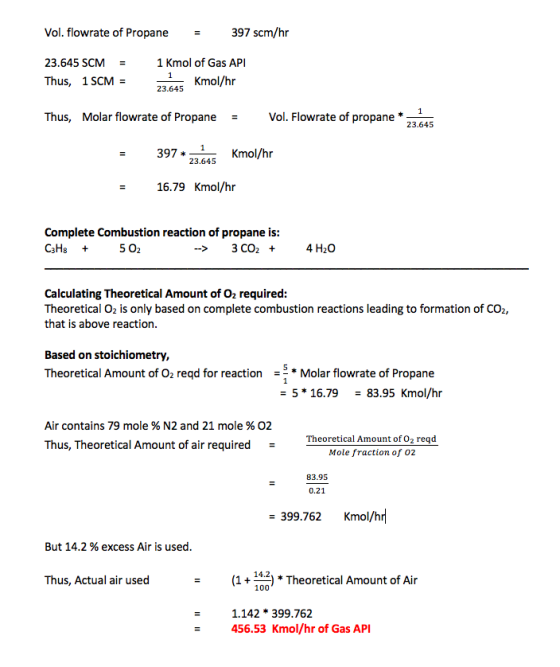

397 scm/hr of propane is burned with 14.2% excess air in a furnace.
3.1 Determine the amount of air required in kmol/hr. (round your answer to two decimals and provide the required units)
Note: 1 kmol of gas API = 23.645 SCM
Homework Answers
