A 18.2 N force is applied to a cord wrapped around a disk of radius 0.38...

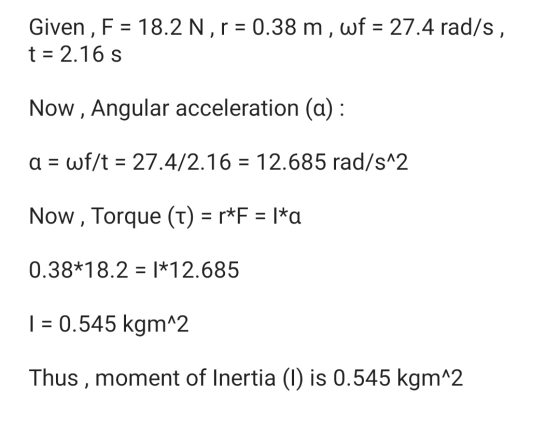

A 18.2 N force is applied to a cord wrapped around a disk of radius 0.38 m. The disk accelerates uniformly from rest to an angular speed of 27.4 rad/s in 2.16 s. Determine the moment of inertial of the disk.
Homework Answers
Add Answer to:
A 18.2 N force is applied to a cord wrapped around a disk of
radius 0.38...
A 16.0 N force (represented by FT) is applied to a cord wrapped around a pulley...
A 16.0 N force (represented by FT) is applied to a cord wrapped around a pulley of mass and radius . The pulley accelerates uniformly from rest to an angular speed of 31.0 rad/s in 5.00 s. There is a frictional torque at the axle τ fr = 3.00 N.m, and the pulley rotates about its center. Determine the net torque on the pully. R = 33 cm
An m = 13.6 kg mass is attached to a cord that is wrapped around a...
An m = 13.6 kg mass is attached to a cord
that is wrapped around a wheel of radius r = 11.3 cm (see the
figure below).
The acceleration of the mass down the frictionless incline is
measured to be a = 1.98 m/s2. Assuming the axle of the
wheel to be frictionless, and the angle to be theta=
33.0o determine the tension in the rope.
Determine the moment of inertia of the wheel.
Determine angular speed of the wheel...
A 12.0 kg object is attached to a cord that is wrapped around a wheel of...
A 12.0 kg object is attached to a cord that is wrapped around a
wheel of radius 10.0 cm. The acceleration of the object down the
frictionless incline is measured to be 2.00 m/s2. Assuming the axis
of the wheel to be frictionless, determine a) the tension in the
rope, b) the moment of inertia of the wheel, and c) the angular
speed of the wheel 2.00 s after it begins rotating, starting from
rest.
A 12.0 kg object is...
A thin cord is wrapped around a grindstone of radius 0.30 m and mass 25 kg...
A thin cord is wrapped around a grindstone of radius 0.30 m and mass 25 kg supported by bearings that produce negligible friction torque. The cord exerts a steady 20-N tension force on the grindstone, causing it to accelerate from rest to 60 rad/s in 12 s. Determine the rotational inertia of the grindstone.
16–11. The cord, which is wrapped around the disk, is given an acceleration of a =...
16–11. The cord, which is wrapped around the disk, is given an acceleration of a = (10t) m/s2, where t is in seconds. Starting from rest, determine the angular displacement, angular velocity, and angular acceleration of the disk when t = 3 s. Obr.8. davit a = (10t) m/s2 0.5 m Prob. 16-11
Problem 17.64 Acord is wrapped around the outer surface of the 75 kg disk. A force...
Problem 17.64 Acord is wrapped around the outer surface of the 75 kg disk. A force of F-(46) N, where is in radians, is applied to the cord The disk has an initial angular velocity of = 1 rad/s. Figure 1) Part A Determine the disk's angular acceleration when it has turned 5 revolutions Express your answer using three significant figures. Enter positive value of the angular acceleration is counterclock acceleration is clockwise Figure < 1 of 1 ) A...
A rope is wrapped around the rim of a large uniform solid disk of mass 305...
A rope is wrapped around the rim of a large uniform solid disk of mass 305 kg and radius 2.10 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 2.65 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 225...
A rope is wrapped around the rim of a large uniform solid disk of mass 225 kg and radius 2.50 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 1.65 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 295...
A rope is wrapped around the rim of a large uniform solid disk of mass 295 kg and radius 2.40 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest what is its angular speed in rev/s at the end of 1.95 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 315...
A rope is wrapped around the rim of a large uniform solid disk of mass 315 kg and radius 1.60 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest what is its angular speed in rev/s at the end of 2.95 s?
An m = 13.6 kg mass is attached to a cord
that is wrapped around a wheel of radius r = 11.3 cm (see the
figure below).
The acceleration of the mass down the frictionless incline is
measured to be a = 1.98 m/s2. Assuming the axle of the
wheel to be frictionless, and the angle to be theta=
33.0o determine the tension in the rope.
Determine the moment of inertia of the wheel.
Determine angular speed of the wheel...
A 12.0 kg object is attached to a cord that is wrapped around a
wheel of radius 10.0 cm. The acceleration of the object down the
frictionless incline is measured to be 2.00 m/s2. Assuming the axis
of the wheel to be frictionless, determine a) the tension in the
rope, b) the moment of inertia of the wheel, and c) the angular
speed of the wheel 2.00 s after it begins rotating, starting from
rest.
A 12.0 kg object is...
A thin cord is wrapped around a grindstone of radius 0.30 m and mass 25 kg supported by bearings that produce negligible friction torque. The cord exerts a steady 20-N tension force on the grindstone, causing it to accelerate from rest to 60 rad/s in 12 s. Determine the rotational inertia of the grindstone.
16–11. The cord, which is wrapped around the disk, is given an acceleration of a = (10t) m/s2, where t is in seconds. Starting from rest, determine the angular displacement, angular velocity, and angular acceleration of the disk when t = 3 s. Obr.8. davit a = (10t) m/s2 0.5 m Prob. 16-11
Problem 17.64 Acord is wrapped around the outer surface of the 75 kg disk. A force of F-(46) N, where is in radians, is applied to the cord The disk has an initial angular velocity of = 1 rad/s. Figure 1) Part A Determine the disk's angular acceleration when it has turned 5 revolutions Express your answer using three significant figures. Enter positive value of the angular acceleration is counterclock acceleration is clockwise Figure < 1 of 1 ) A...
A rope is wrapped around the rim of a large uniform solid disk of mass 225 kg and radius 2.50 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 1.65 s?
