A 16.0 N force (represented by FT) is applied to a cord wrapped around a pulley...

A 16.0 N force (represented by FT) is applied to a cord wrapped around a pulley of mass and radius . The pulley accelerates uniformly from rest to an angular speed of 31.0 rad/s in 5.00 s. There is a frictional torque at the axle τ fr = 3.00 N.m, and the pulley rotates about its center. Determine the net torque on the pully. R = 33 cm

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

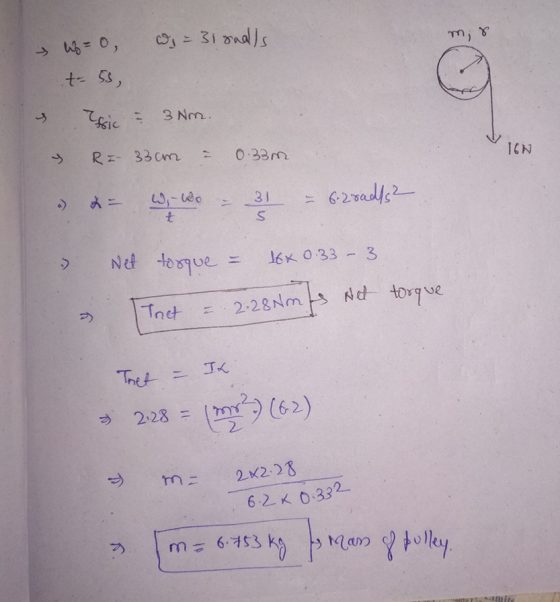

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 16.0 N force (represented by FT) is applied to a cord wrapped around a pulley...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 18.2 N force is applied to a cord wrapped around a disk of radius 0.38...

    A 18.2 N force is applied to a cord wrapped around a disk of radius 0.38 m. The disk accelerates uniformly from rest to an angular speed of 27.4 rad/s in 2.16 s. Determine the moment of inertial of the disk.

  • A string is wrapped around a pulley of radius 0.5 m and moment of inertia 0.1...

    A string is wrapped around a pulley of radius 0.5 m and moment of inertia 0.1 kg. m². When the string is pulled with a force F, the pully rotates, resulting in angular acceleration of 2 rad/s2 Determine the magnitude of the force F. (Hint: Use Torque and angular acceleration). OON O 0.4N 16N OBN

  • A string is wrapped around a pulley of radius 0.5 m and moment of inertia 0.1...

    A string is wrapped around a pulley of radius 0.5 m and moment of inertia 0.1 kg. m². When the string is pulled with a force F, the pully rotates, resulting in angular acceleration of 2 rad/s2 Determine the magnitude of the force F. (Hint: Use Torque and angular acceleration). OON O 0.4N 16N OBN

  • To start her lawn mower, Julie pulls on a cord that is wrapped around a pulley....

    To start her lawn mower, Julie pulls on a cord that is wrapped around a pulley. The pulley has a moment of inertia about its central axis of I = 0.520kg?m2 and a radius of 6.00cm . There is an equivalent frictional torque impeding her pull of ?f = 0.410m?N . A. To accelerate the pulley at ? = 4.70rad/s2 , how much torque does Julie need to apply to the pulley? B. How much tension must the rope exert?

  • A 1-kg block hanging from a cord wrapped around a cylinder pulley. The moment of inertia...

    A 1-kg block hanging from a cord wrapped around a cylinder pulley. The moment of inertia of pulley is 1 kg m2 and the radius of pulley is 0.2 m. What is the angular acceleration of the pulley and the free fall acceleration of the block? PLEASE SHOW ALL WORK. CORRECT ANSWER IS 5 rad/s/s & 1 m/s/s

  • A counterweight of mass m = 5.20 kg is attached to a light cord that is wound around a pulley as shown in the figure below

    A counterweight of mass m = 5.20 kg is attached to a light cord that is wound around a pulley as shown in the figure below. The pulley is a thin hoop of radius R = 7.00 cm and mass M = 2.80 kg. The spokes have negligible mass. (a) What is the net torque on the system about the axle of the pulley?(b) When the counterweight has a speed v, the pulley has an angular speed w = V/R. Determine...

  • (c) A string is wrapped many times around a frictionless pulley, which is a uniform disk...

    (c) A string is wrapped many times around a frictionless pulley, which is a uniform disk of mass M. The string is connected to a hanging mass of massm. What is the speed of the hanging mass after it falls a distance h from rest? (d) A ceiling fan accelerates uniformly at a rate of 3rad/s^2 from rest. How long does it take for the acceleration of a point 1.2 m from the center to have a magnitude of 6m/s^2

  • A cord s wrapped around the rim of a solid uniform wheel 0.22 m in radius and of mass 8.60 kg

    A cord s wrapped around the rim of a solid uniform wheel 0.22 m in radius and of mass 8.60 kg . A steady horizontal pull of 50.0 N to the right is exerted on the cord, pulling it off tangentially from the wheel. The wheel is mounted on frictionless bearings on a horizontal axle through its center. Part A Compute the angular acceleration of the wheelPart B Compute the angular acceleration of the part of the cord that has already been pulled...

  • Analysis Model Tutorial A4.00-m length of light nylon cord is wound around a uniform cylindrical spool...

    Analysis Model Tutorial A4.00-m length of light nylon cord is wound around a uniform cylindrical spool of radius 0.500 m and mass 1.00 kg. The spool is mounted on a frictionless axle and is initially at rest. The cord is pulled from the spool with a constant acceleration of magnitude 2.30 m/s? (a) How much work has been done on the spool when it reaches an angular speed of 4.00 rad/s? (b) How long does it take the spool to...
