A car is driving around a curve. The curve has a radius of 120 m and...

Question

Question

A car is driving around a curve. The curve has a radius of 120 m and is banked at an angle of

45 degrees. If the car is moving at 100 MPH what is the sum of the forces acting on the car?

(Assume no friction)(Sum of forces will be parallel with the surface)

science physics

Answer 1

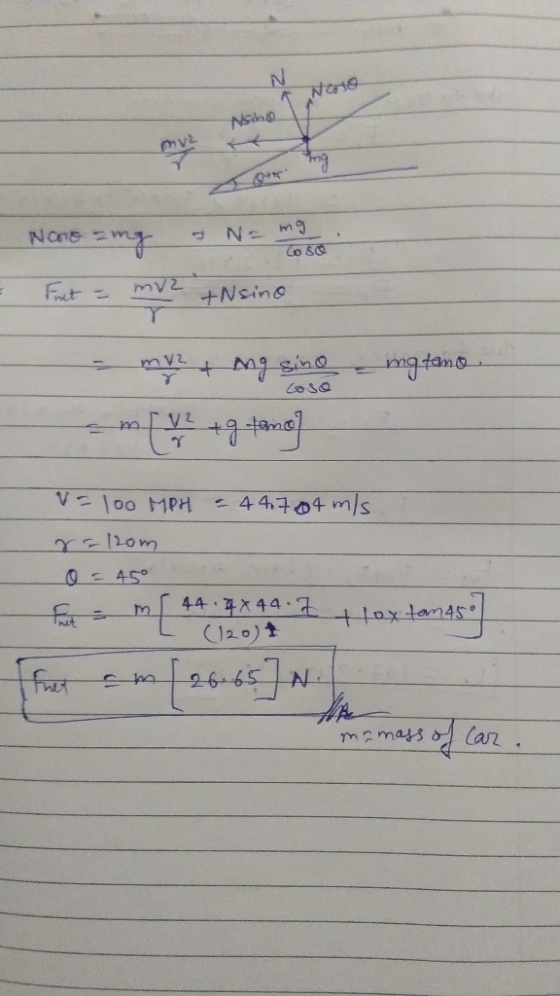

Answer #1

Answer 2
