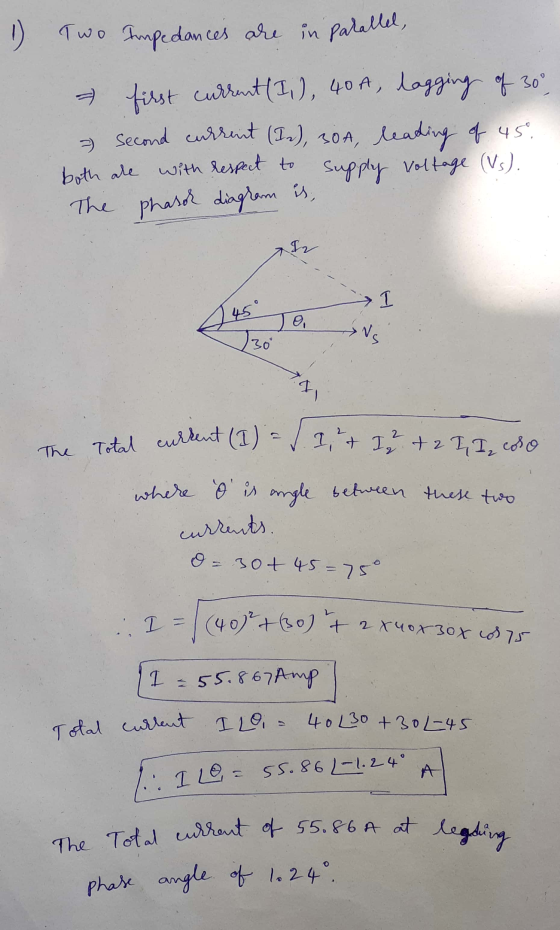

1. Two impedances are connected in parallel to the supply, the first takes a current of 40 A at a lagging phase angle of 30°, and the second a current of 30 A at a leading phase angle of 45°. Draw a phasor diagram to scale to represent the supply voltage and these currents. From this diagram, by construction, determine the total current taken from the supply and its phase angle

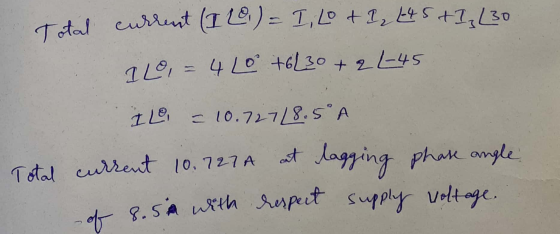

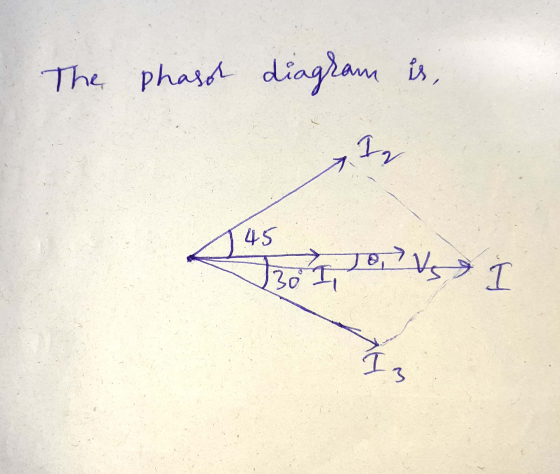

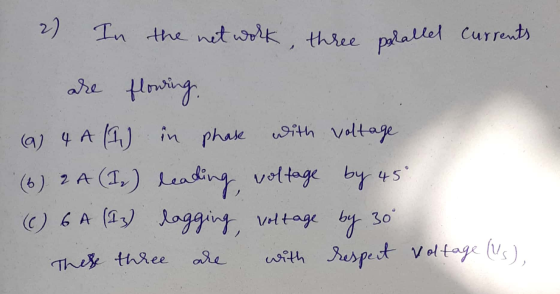

2. The currents in three circuits connected in parallel to a voltage source are: (a) 4 A in phase with the applied voltage; (b) 6 A lagging the applied voltage by 30°; (c) 2 A leading the applied voltage by 45°. Represent these currents to scale on a phasor diagram, showing their correct relative phase displacement with each other. Determine, graphically or otherwise, the total current taken from the source, and its phase angle with respect to the supply voltage
1. Two impedances are connected in parallel to the supply, the first takes a current of...
ELE2601/101/3/2019 QUESTION 4 A 400 V three-phase, 50 Hz system, ABC sequence supplies the following loads: A star-connected load with the following phase impedances: A delta-connected load of equal phase impedances: Use VAB as reference and determine the following quantities: 4.1 The magnitude and angle of the currents drawn by the star-connected load (IAN; lBN; ICN). 4.1.1 The magnitude and angle of the phase (IAB; lBc; ICa) and line (lA; ls; Ic) currents drawn by the delta-connected load. 4.1.2 (12)...
Two electrical loads are connected in parallel to a 380 V, 50 Hz, three phase supply. The first load consists of three identical impedance each 7 Ω resistance and 5Ω inductive resistance, connected in star. The second load consists of three identical impedances, each 12 Ω resistance and 8 Ω capacitive reactance connected in delta. Sketch the arrangement described above Calculate Zph1 and Zph2[Zph1= 8.6Ω 35.54°; Zph2= 14.42 Ω -33.69°] Determine Iph1 and Iph2[Iph1= 25.51A -35.54°; Iph2= 26.35A +33.69°] IL1...
Three circuits A, B and C are connected in series across a 200V supply. The voltage across circuit A is 50 V lagging the supply voltage by 045 and the voltage across circuit C is 100 V leading the supply voltage by 030 . Determine graphically, the voltage across circuit B and its phase displacement from the supply voltage.
Q2 (a) A star connected 6.6kV, 8MVA synchronous generator operating at 7MW and a 0.88 lagging power factor is connected to the Grid. The synchronous reactance is 1.5Ω (i) Calculate the phase current, excitation voltage and load angle. [10] (ii) What is the maximum theoretical power at this excitation? Draw a phasor diagram (to scale) and from this estimate the phase current and power factor when operating at this point. 151
Q2 (a) A star connected 6.6kV, 8MVA synchronous generator...
a) define complex power in terms of the supply current i and v b) draw separately the current and power phasor relations for the case of a load consisting of a series connection of a resistor and an inductor across the voltage supply c) A single phase load connected to a 230V, 50Hz source draws is rated 1.84kVA at a phase angle of 40,lagging, determine the current drawn from the supply and load power factor, calculate the active and reactive...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
10. Two loads connected in parallel draw a total of 2.4 kW at 0.8 pflagging from a 120-V rms, 60- Hz line. One load absorbs 1.5 kW at a 0.707 pf lagging. Determine: (a) the pf of the second load, INV 11. Calculate the line currents for the system shown in figure. Calculate also the total power and reactive power consumed by the load. w 12. For the balanced three-phase circuit in Fig.. Calculate the line currents, the phase voltage...
In a balanced three-phase system, the source is wye-connected and the source voltage of phase A is Van = ∠ 120 20 V. The load consists of two balanced wyes in parallel with phase impedances of 8 + j6 Ω and 12 + j8 Ω. If the line impedance is zero, find the line currents and the phase currents in each load. (Hint: use per phase analysis, then do angle shift for each phase.)
2.11. A 4157-V rms, three-phase supply is applied to a balanced Y-connected three-phase load consisting of three identical impedances of 48236.87°2. Taking the phase to neutral voltage Van as reference, calculate (a) The phasor currents in each line. (b) The total active and reactive power supplied to the load.
