Particle 1 and particle 2 have masses of m1 = 2.2 × 10-8 kg and m2...

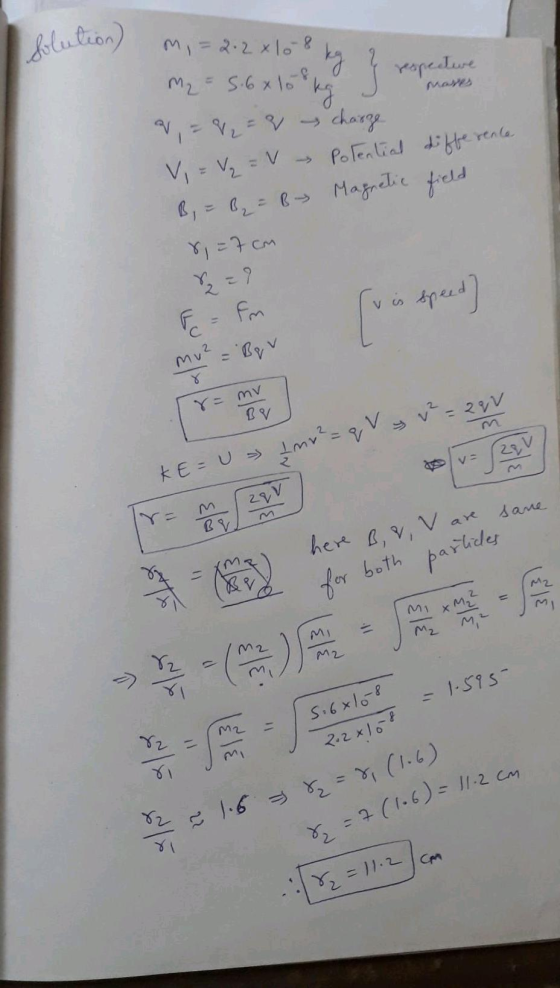

Particle 1 and particle 2 have masses of m1 = 2.2 × 10-8 kg and m2 = 5.6 × 10-8 kg, but they carry the same charge q. The two particles accelerate from rest through the same electric potential difference V and enter the same magnetic field, which has a magnitude B. The particles travel perpendicular to the magnetic field on circular paths. The radius of the circular path for particle 1 is r1 = 7 cm. What is the radius (in cm) of the circular path for particle 2?
Homework Answers
Add Answer to:
Particle 1 and particle 2 have masses of m1
= 2.2 × 10-8 kg and m2...
A proton enters a region of constant magnetic field, perpendicular to the fie and after being...
A proton enters a region of constant magnetic field, perpendicular to the fie and after being accelerated from rest by an electric field through an electric potential difference of - 350 V. Determine the magnitude of the magnetic field, if the proton travels in a circular path with a radius of 21 cm. mt As shown in the figure below, when a charged particle enters a region of magnetic field traveling in a direction perpendicular to the field, it will...
As shown in the figure, an electron is fired with a speed of 3.73 x 10...
As shown in the figure, an electron is fired with a speed of 3.73 x 10 m/s through a hole in one of the two parallel plates and into the region between the plates separated by a distance of 0.24 m. There is a magnetic field in the region between the plates and, as shown, it is directed into the plane of the page (perpendicular to the velocity of the electron). Determine the magnitude of the magnetic field so that...
An alpha-particle has a charge of +2e and a mass of 6.64 * 10^-27 kg. It...
An alpha-particle has a charge of +2e and a mass of 6.64 * 10^-27 kg. It is accelerated from rest through a potential difference that has a value of 1.10 * 10^6 V and then enters a uniform magnetic field whose magnitude is 2.80 T. The alpha-particle moves perpendicular to the magnetic field at all times. What is the speed of the alpha-particle What is the magnitude of the magnetic force on it What is the radius of its circular...
A stationary particle of charge q = 2.2 × 10-8 C is placed in a laser...
A stationary particle of charge q = 2.2 × 10-8 C is placed in a laser beam (an electromagnetic wave) whose intensity is 2.0 × 103 W/m2. Determine the maximum magnitude of the (a) electric and (b) magnetic forces exerted on the charge. If the charge is moving at a speed of 3.7 × 104 m/s perpendicular to the magnetic field of the electromagnetic wave, find the maximum magnitudes of the (c) electric and (d) magnetic forces exerted on the...
An α-particle has a charge of +2e and a mass of 6.64 × 10-27 kg. It...
An α-particle has a charge of +2e and a mass of 6.64 × 10-27 kg. It is accelerated from rest through a potential difference that has a value of 1.09 × 106 V and then enters a uniform magnetic field whose magnitude is 2.63 T. The α-particle moves perpendicular to the magnetic field at all times. What is (a) the speed of the α-particle, (b) the magnitude of the magnetic force on it, and (c) the radius of its circular...
An α-particle has a charge of +2e and a mass of 6.64 × 10-27 kg. It...
An α-particle has a charge of +2e and a mass of 6.64 × 10-27 kg.
It is accelerated from rest through a potential difference that has
a value of 1.30 × 106 V and then enters a uniform magnetic field
whose magnitude is 1.14 T. The α-particle moves perpendicular to
the magnetic field at all times. What is (a) the speed of the
α-particle, (b) the magnitude of the magnetic force on it, and (c)
the radius of its circular...
An alpha-particle has a charge of +2e and a mass of 6.64 times 10^-27 kg. It...
An alpha-particle has a charge of +2e and a mass of 6.64 times 10^-27 kg. It is accelerated from rest through a potential difference that has a value of 1.24 times 10^6 v and then enters a uniform magnetic field whose magnitude is 3.30 T. The alpha-particle moves perpendicular to the magnetic field at all times. (a) What is the speed of the alpha-particle? m/s (b) What is the magnitude of the magnetic force on it? N (c) What is...
An α-particle has a charge of +2e and a mass of 6.64 10-27 kg. It is...
An α-particle has a charge of +2e and a mass of 6.64 10-27 kg. It is accelerated from rest through a potential difference that has a value of 1.08 106 V and then enters a uniform magnetic field whose magnitude is 2.30 T. The α-particle moves perpendicular to the magnetic field at all times. (a) What is the speed of the α-particle? m/s (b) What is the magnitude of the magnetic force on it? N (c) What is the radius...
A proton (charge le, mass mp) and an alpha particle (charge 2e, mass 4mp) in a...
A proton (charge le, mass mp) and an alpha particle (charge 2e, mass 4mp) in a mass spectrometer are accelerated from rest through a velocity selector that has an electric field E 103 V/m and magnetic field B- 2.5T. Each of the particles enters a uniform magnetic field B-2.5T, with its velocity in a direction perpendicular to B. The proton moves in a circular path of radius rp. and the alpha particle in a circular path ra. Calculate the distance...
Two masses, m1=8 kg and m2 are connected by a cable so that m1 is a...
Two masses, m1=8 kg and m2 are connected by a cable so that m1 is a height h from the bottom of a cliff. m2 is on a flat plateau above the cliff with a coefficient of friction is 0.5. The friction just allows m1 to keep from falling. What is the mass m2 in kg .
A proton enters a region of constant magnetic field, perpendicular to the fie and after being accelerated from rest by an electric field through an electric potential difference of - 350 V. Determine the magnitude of the magnetic field, if the proton travels in a circular path with a radius of 21 cm. mt As shown in the figure below, when a charged particle enters a region of magnetic field traveling in a direction perpendicular to the field, it will...
As shown in the figure, an electron is fired with a speed of 3.73 x 10 m/s through a hole in one of the two parallel plates and into the region between the plates separated by a distance of 0.24 m. There is a magnetic field in the region between the plates and, as shown, it is directed into the plane of the page (perpendicular to the velocity of the electron). Determine the magnitude of the magnetic field so that...
An alpha-particle has a charge of +2e and a mass of 6.64 * 10^-27 kg. It is accelerated from rest through a potential difference that has a value of 1.10 * 10^6 V and then enters a uniform magnetic field whose magnitude is 2.80 T. The alpha-particle moves perpendicular to the magnetic field at all times. What is the speed of the alpha-particle What is the magnitude of the magnetic force on it What is the radius of its circular...
An α-particle has a charge of +2e and a mass of 6.64 × 10-27 kg.
It is accelerated from rest through a potential difference that has
a value of 1.30 × 106 V and then enters a uniform magnetic field
whose magnitude is 1.14 T. The α-particle moves perpendicular to
the magnetic field at all times. What is (a) the speed of the
α-particle, (b) the magnitude of the magnetic force on it, and (c)
the radius of its circular...
An alpha-particle has a charge of +2e and a mass of 6.64 times 10^-27 kg. It is accelerated from rest through a potential difference that has a value of 1.24 times 10^6 v and then enters a uniform magnetic field whose magnitude is 3.30 T. The alpha-particle moves perpendicular to the magnetic field at all times. (a) What is the speed of the alpha-particle? m/s (b) What is the magnitude of the magnetic force on it? N (c) What is...
A proton (charge le, mass mp) and an alpha particle (charge 2e, mass 4mp) in a mass spectrometer are accelerated from rest through a velocity selector that has an electric field E 103 V/m and magnetic field B- 2.5T. Each of the particles enters a uniform magnetic field B-2.5T, with its velocity in a direction perpendicular to B. The proton moves in a circular path of radius rp. and the alpha particle in a circular path ra. Calculate the distance...
