I need help solving both the questions below and it is 109 instructions.

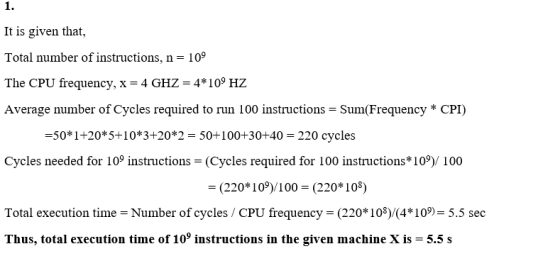

1. On machine X with a 4GHz CPU, there is a mix of four types of instruction:
|
Operation Type |
Frequency |
CPI |
|
Arithmetic |
50% |
1 |
|
Load |
20% |
5 |
|
Store |
10% |
3 |
|
Branch |
20% |
2 |
Suppose your program has 109 instructions, what is the total execution time?

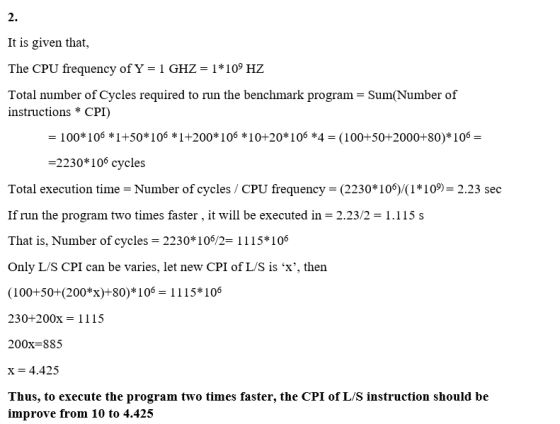

2. On machine Y with a 1GHz CPU, a benchmark program consists of the following four types of instructions:
|
Instruction Type |
Number of Instructions |
CPI |
|
FP |
100x106 |
1 |
|
INT |
50x106 |
1 |
|
L/S |
200x106 |
10 |
|
Branch |
20x106 |
4 |
By how much we need to improve the CPI of L/S if we want the benchmark program to run two times faster?
Homework Answers
Answers for the problems are provided below, please comment if any further doubts on it:
Note: Since the solution contains formulas, the screen shot of the solution is added to avoid the possible format lost.
